5 Mechanical Characteristics

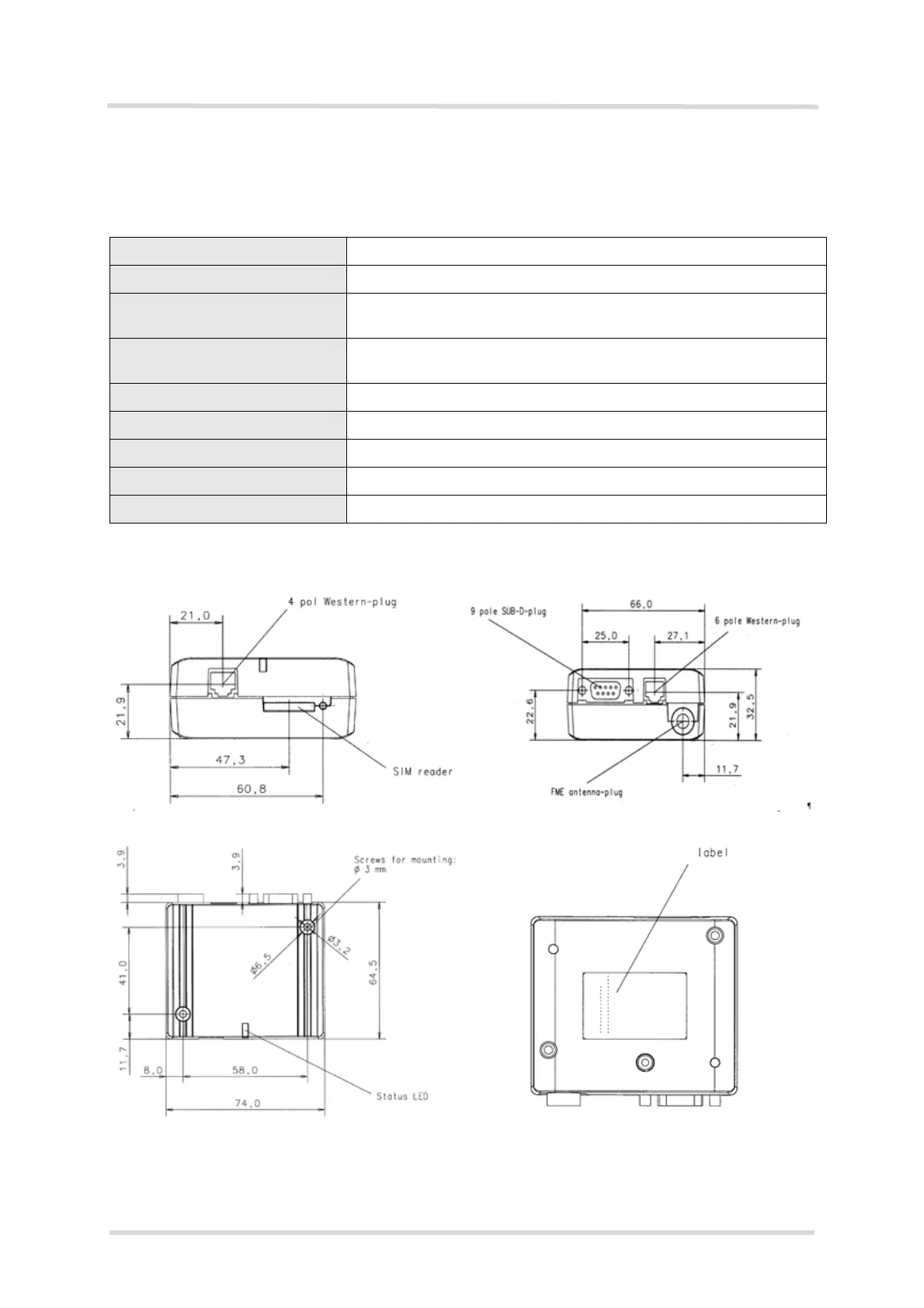

Figure 13: Mechanical dimensions
Table 23: Mechanical characteristics
Weight 110g (approx.)
Dimensions (max) LxWxH = 65x74x33mm
Temperature range Normal operation: -20°C to +65°C
Restricted operation: -30°C to -20°C and +65°C to +75°C
Protection class IP40
(Avoid exposing MC55i Terminal to liquid or moisture, for exam-
ple do not use it in a shower or bath.)
Mechanical vibrations Amplitude 7.5 mm at 5-200 Hz sinus
Max. pulse acceleration 30g pulse with 18 ms duration time
Air humidity 5...80% (non condensing)
Class of flammability UL94 HB
Casing material PC/ABS Cycoloy 1200 HF grey 96444
