MC55i Terminal Hardware Interface Description
3.10 Antenna Interface
32
MC55i_Terminal_HD_v01.201a Page 32 of 47 2010-04-16
Confidential / Released
For the application it is recommended to use an antenna with the following FME (female) con-
nector:

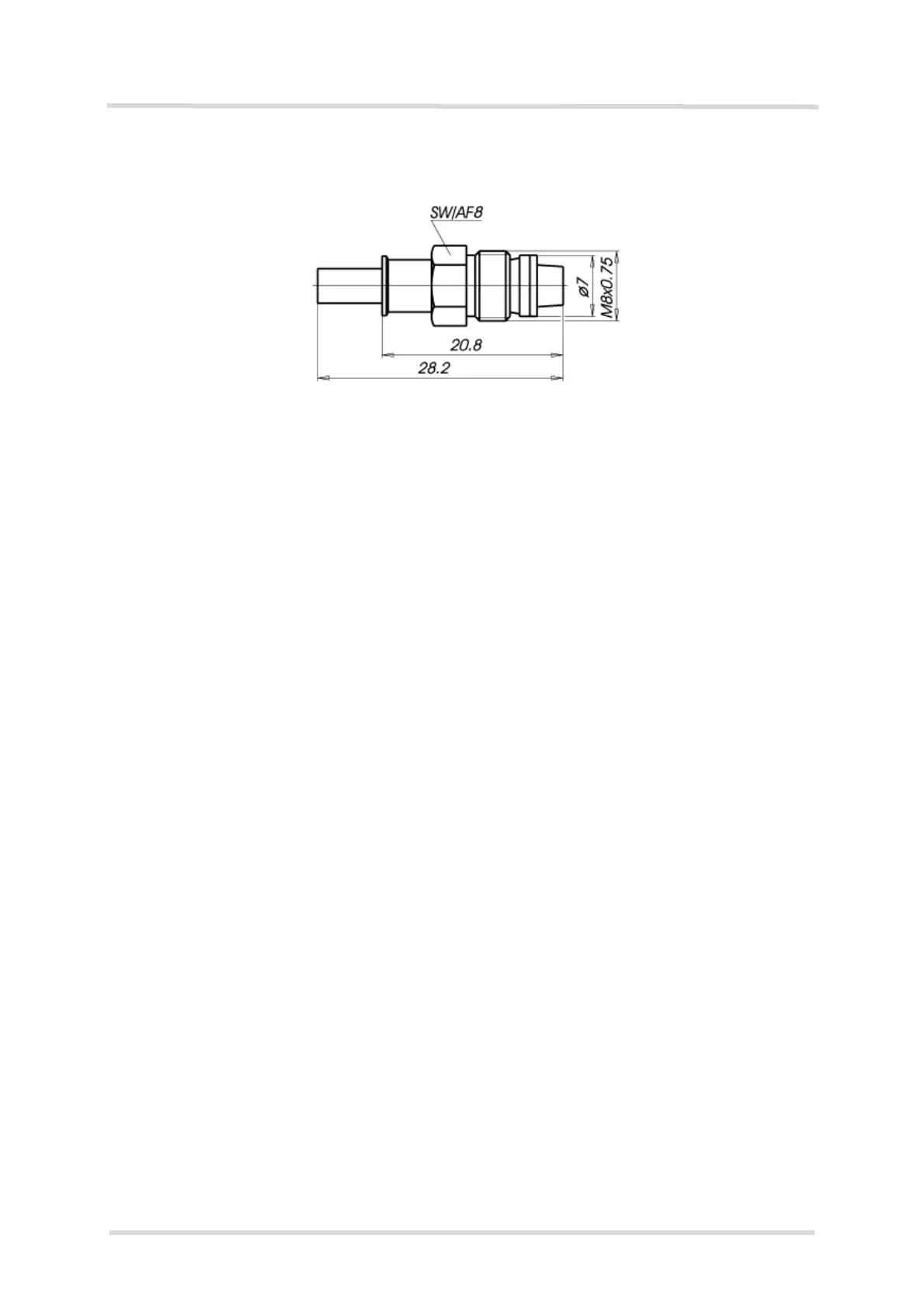

Figure 12: Recommended antenna connector
Please note that the terminal should be installed and operated with a minimum distance of
20cm between the antenna connected to the terminal and any human bodies. Also, the trans-
mitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The allowed maximum antenna gain is 4.35dBi.
