CipherLab 8200 Reference Manual

55
Chapter 3 System Menu

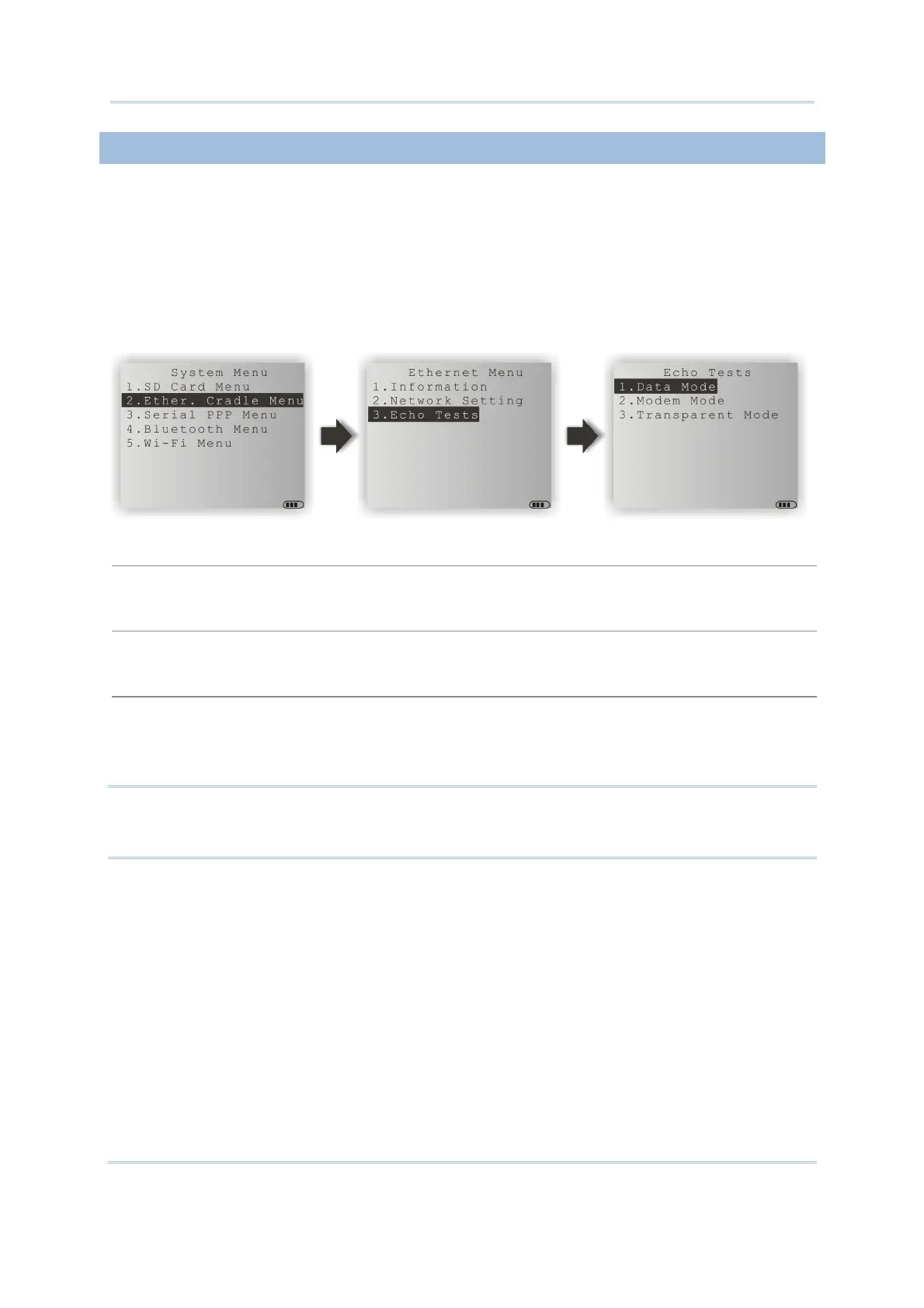

3.9.3 ECHO TESTS
The Ethernet Cradle supports three working modes:
 Data Mode
 Modem Mode
 Transparent Mode
These echo tests are used for verifying connectivity via the Ethernet Cradle. For details,
refer to the Ethernet Cradle manual.
Data Mode
Set the Ethernet Cradle in Data mode. The mobile computer works as a client.
Modem Mode
Set the Ethernet Cradle in Modem mode. The mobile computer works as a client.
Transparent Mode
1. Client Mode - Set the mobile computer as a client.
Enter the IP address of a server with which a connection is desired.
2. Server Mode - Set the mobile computer as a server that waits for other devices to connect to.
Note: After the Ethernet connection is established properly, run the utility
“EchoTest.exe” on your computer (TCP/IP – Server or Client), and then, start this
test on your mobile computer.
