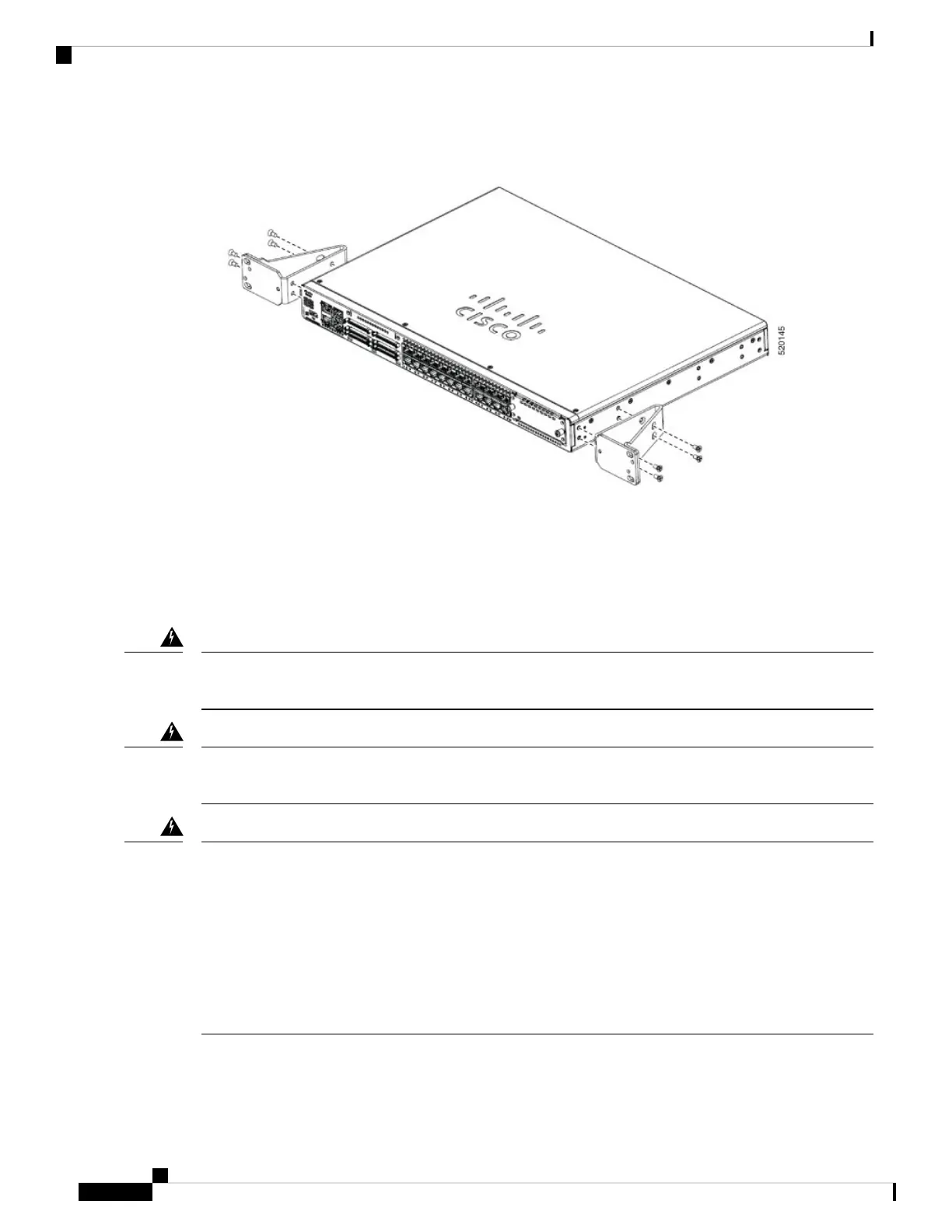

Figure 16: C1100TG-1N24P32A and C1100TGX-1N24P32A – 23” Bracket installation for rack mounting
Mount the Router on the Rack
To install the router, use the screws provided with the accessory kit to secure the router when you mount it
on the rack. Before mounting the router on to the rack, refer to the following safety warning statements:
To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 1.75 in. (4.4
cm). Statement 1076.
Warning
To reduce risk of electric shock and fire, take care when connecting units to the supply circuit so that wiring
is not overloaded. Statement 1018
Warning
To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to
ensure that the system remains stable. The following guidelines are provided to ensure your safety:
• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top withthe heaviest
component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicingthe
unit in the rack. Statement 1006.
Warning
Hardware Installation Guide for the Cisco 1100 Terminal Gateway
22
Install and Connect the Router
Mount the Router on the Rack
