Cisco 1100 Series Hardware Installation Guide

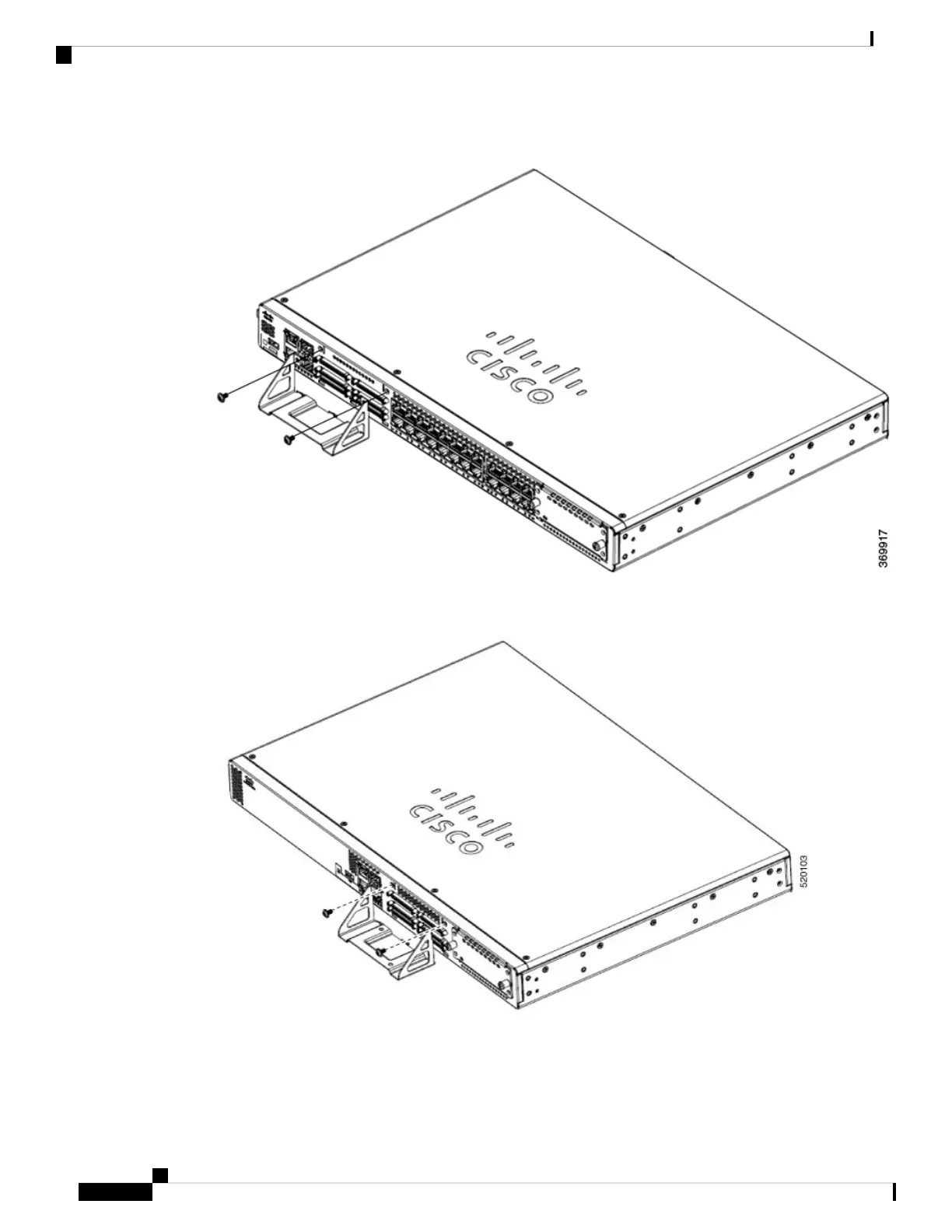

Figure 22: C1100TG-1N32A - Async Bracket Installation
Figure 23: C1100TG-1N24P32A and C1100TGX-1N24P32A - Async Bracket Installation
1. Before connecting Async cables to the ports, mount Async bracket onto the front panel.
2. Align the the sides of the brackets to the Async port slots on the front panel.
Hardware Installation Guide for the Cisco 1100 Terminal Gateway
34
Install and Connect the Router
Ports and Cabling

Cisco 1100 Series Specifications

General

Form Factor	Desktop
Model	Cisco 1100 Series
Integrated Wi-Fi	Yes, 802.11ac Wave 2
Security	Firewall, VPN (IPsec, DMVPN, FlexVPN), intrusion prevention, content filtering
Management	Cisco IOS XE
Power Supply	External power adapter
Power	12V DC
Mounting	Desktop
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-20 to 70°C (-4 to 158°F)
