Line Card Cable-Management Bracket
The cable-management system consists of two separate components:
1. A cable-management tray that is mounted on the chassis. Refer to the appropriate
Cisco 12000 Series Router installation and configuration guide for more information on the
cable-management tray.
2. A cable-management bracket that attaches to a line card.
This section describes the line card cable-management bracket. Figure 11 shows the single-port line card
cable-management bracket; Figure 12 shows the multiport line card cable-management bracket.

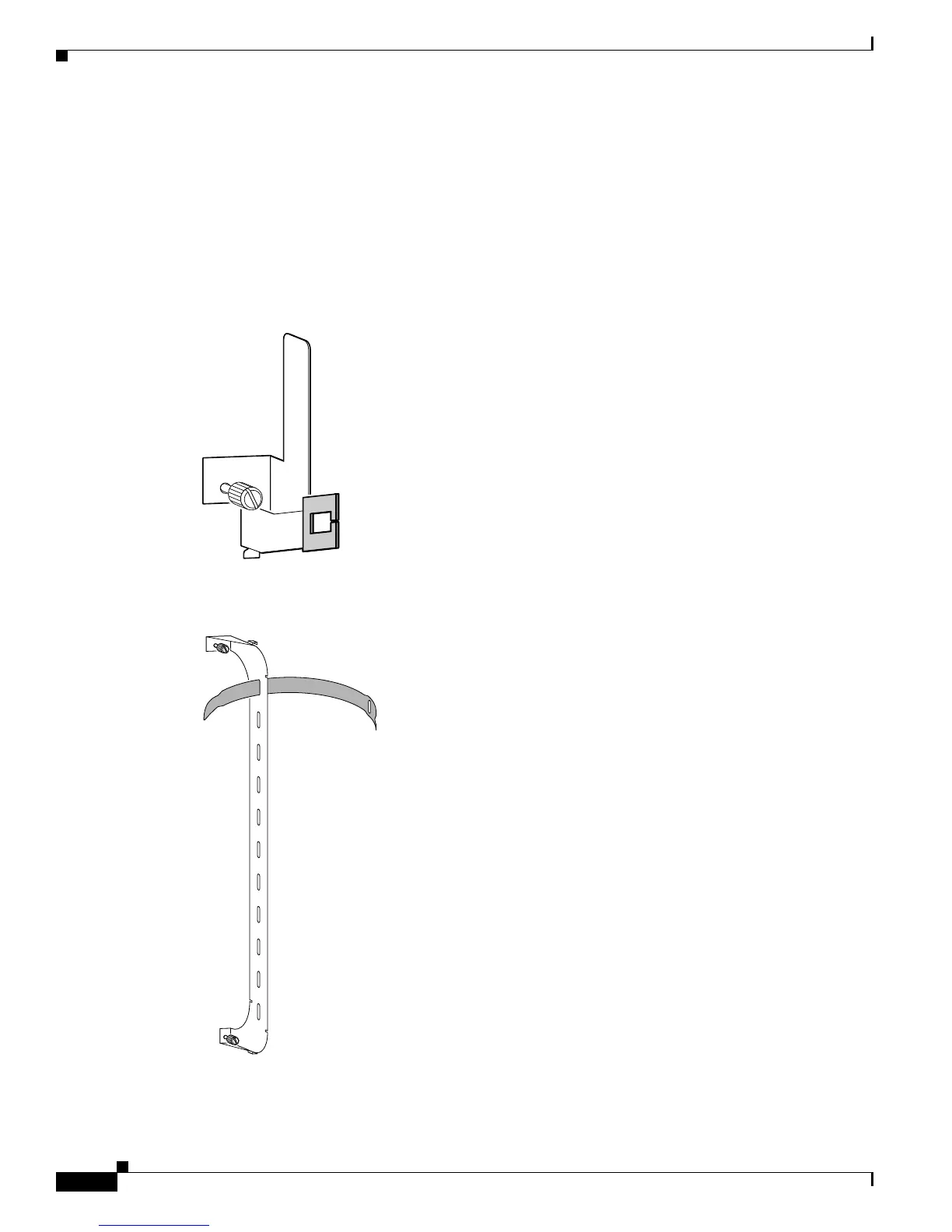

Figure 11 Single-Port Line Card Cable-Management Bracket
Figure 12 Multiport Line Card Cable-Management Bracket
