Line Card Memory
Engine 0 and Engine 1 Line Card Memory Locations
Figure 18 shows the dual in-line memory module (DIMM) socket locations on an Engine 0 or Engine 1
line card. This line card is equipped with six DIMM sockets:
• Two route memory DIMM sockets
• Two pairs of packet memory DIMM sockets (RX and TX pairs)

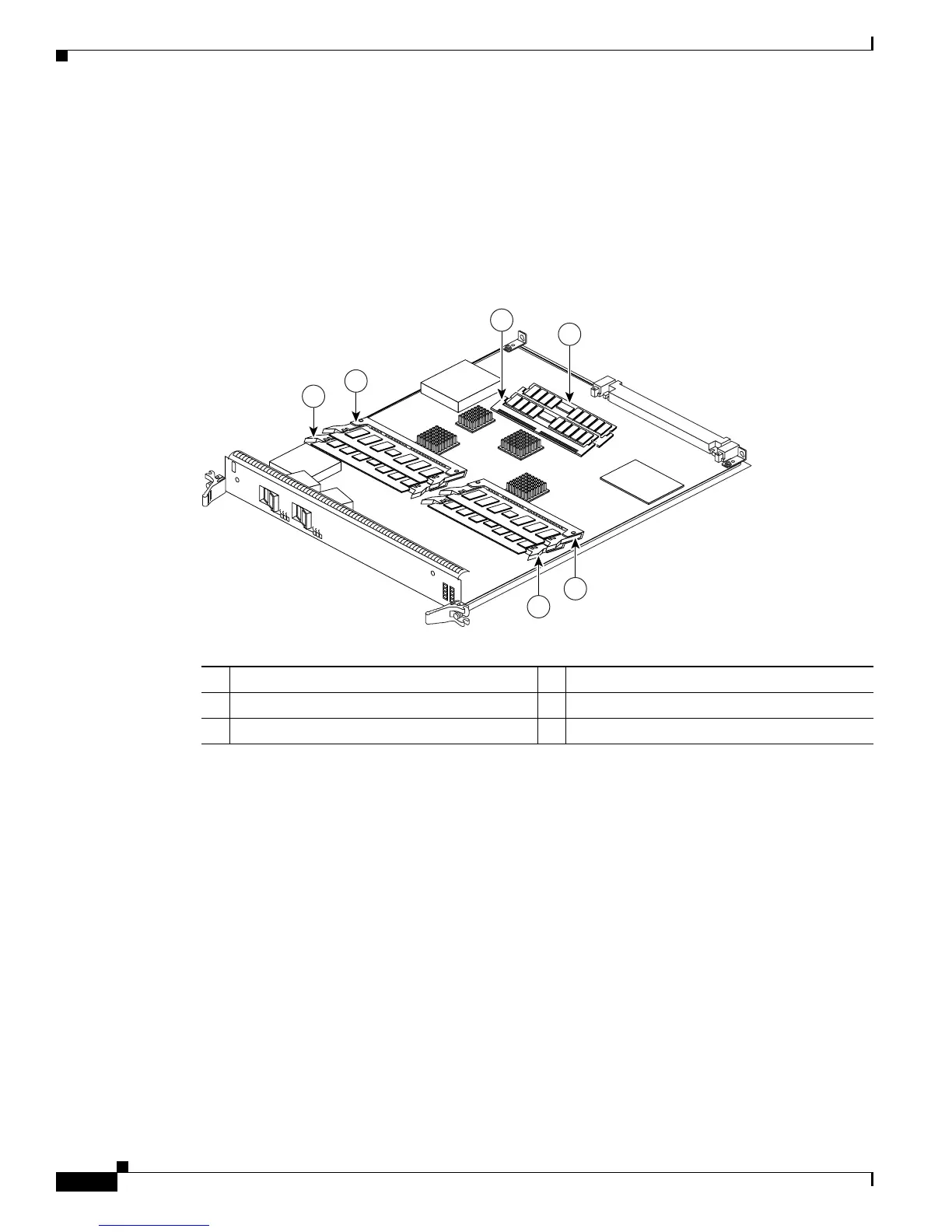

Figure 18 Engine 0 and Engine 1 Line Card Memory Locations
1 Route memory DIMM0 4 Packet memory RX DIMM1
2 Route memory DIMM1 5 Packet memory TX DIMM0
3 Packet memory RX DIMM0 6 Packet memory TX DIMM1
ACTIVE
0
CARRIER
RX PKT
ACTIVE
1
CARRIER
RX PKT
Q OC-3/STM-POS
93275
2
1
5
6
3
4
