Product Overviews
4-port OC-3c/STM-1 ATM Line Card Overview
The 4-port OC-3c/STM-1 ATM line card interfaces with the switch fabric of the Cisco 12000 Series
Router. It provides four 155-Mbps OC-3c/STM-1c duplex SC single-mode or multimode SONET/SDH
connections. This connection is concatenated, which provides for increased efficiency by eliminating the
need to partition the bandwidth.
Figure 2 shows the single-mode, intermediate-range 4-port OC-3c/STM-1 ATM line card.

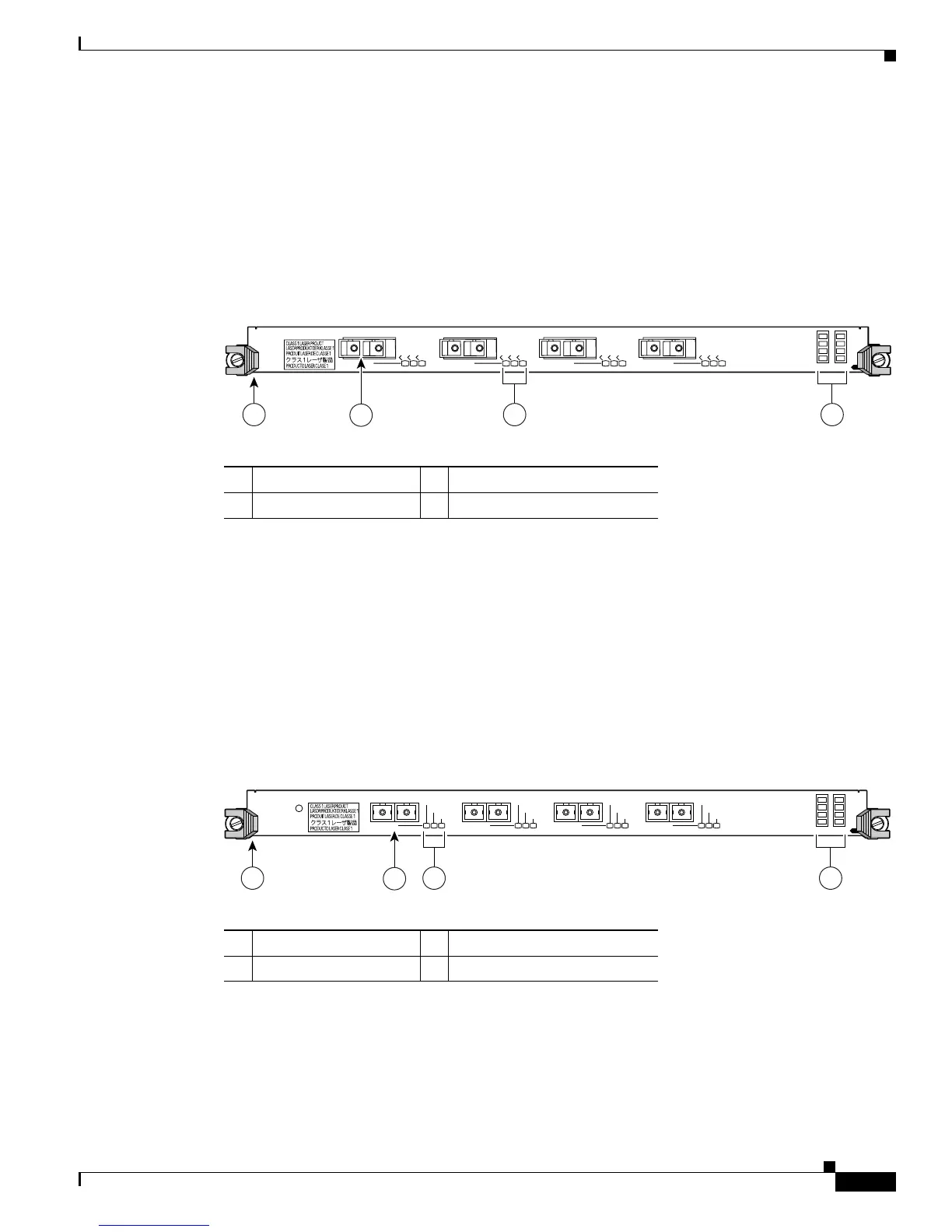

Figure 2 4-port OC-3c/STM-1 ATM Line Card
4-port OC-12c/STM-4c ATM Line Card Overview
The 4-port OC-12c/STM-4c ATM line card provides the Cisco 12000 Series Router with four 622-Mbps
ATM interfaces. The card interfaces to the router’s switch fabric and provides four OC-12c/STM-4c SC
connectors for duplex single-mode or multimode SONET/SDH connections.
Figure 3 illustrates the single-mode, intermediate-range 4-port OC-12c/STM-4c ATM line card. There
are four ports, numbered 0 to 3, on each line card. Each port has a set of status LEDs. Each SONET
connection is concatenated, which provides for increased efficiency by eliminating the need to partition
the bandwidth.
Figure 3 4-port OC-12c/STM-4c ATM Line Card—Intermediate-Range
1 Ejector lever 3 Status LEDs
2 Port 0 4 Display LEDs
ACTIVE
1
CARRIER
RX PKT
ACTIVE
0
CARRIER
RX PKT
ACTIVE
2
CARRIER
RX PKT
ACTIVE
3
CARRIER
RX PKT
Q OC-3/STM-1 SM IR POS
1
2
3 4
101925
1 Ejector lever 3 Status LEDs
2 Port 0 4 Display LEDs
101923
1
ACTIVE
0
CARRIER
RX CELL
OC-12/STM-4 SM-SC ATM
ACTIVE
1
CARRIER
RX CELL
ACTIVE
2
CARRIER
RX CELL
ACTIVE
3
CARRIER
RX CELL
2
3 3
