Appendix A Smart Serial Port External Seal
Step 6 Position the heat-shrink tubing as shown in Figure A-2, so that one end is over the cable molding, over
the chassis protrusion, and abuts the end cap.

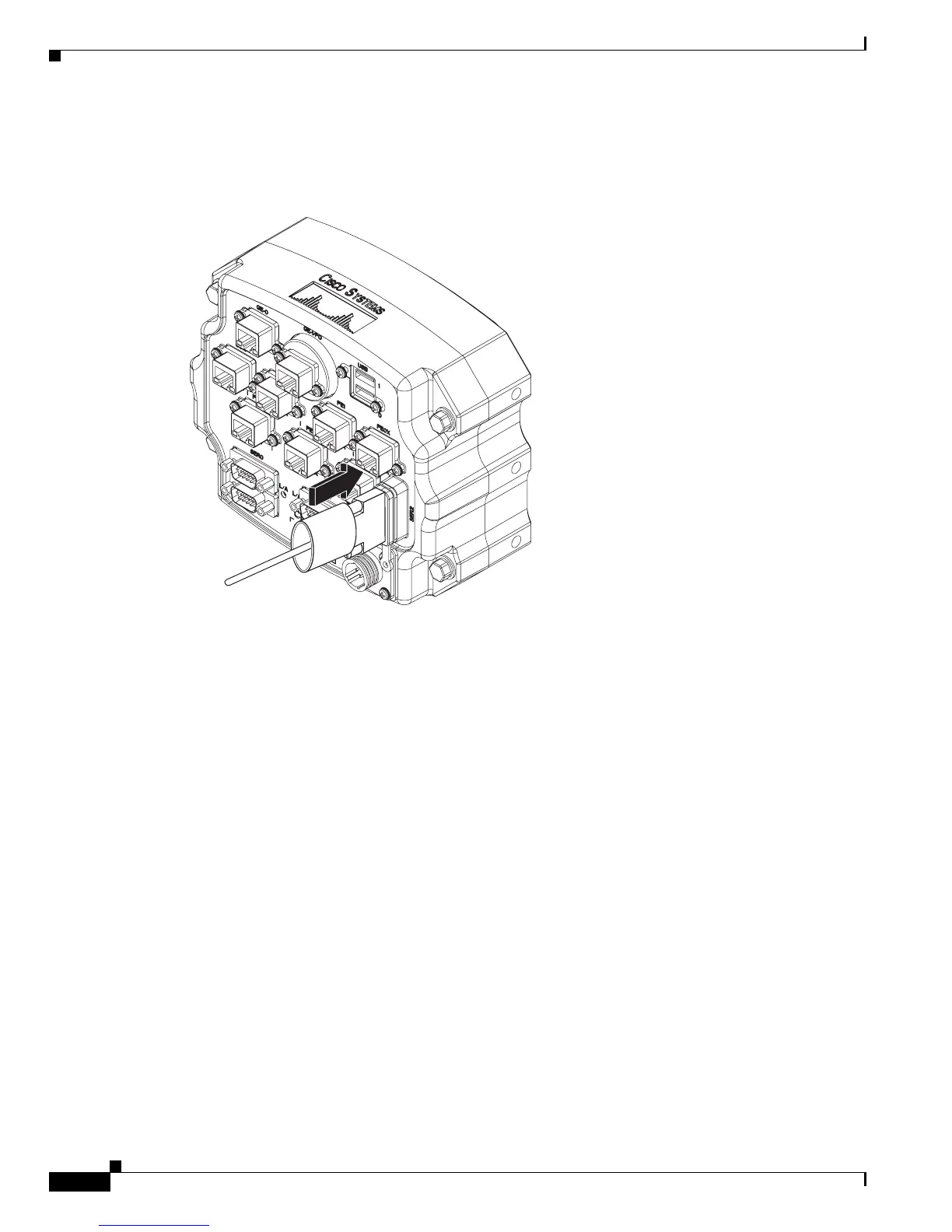

Figure A-2 Positioning the Heat-Shrink Tubing Over the Cable Molding
270449
