Cisco 3200 Series - What You Can Upgrade or Replace

1-3
Cisco 3200 Series Router Hardware Reference
OL-5816-10
Chapter 1 Cisco 3200 Rugged Enclosures
Cisco 3270 Rugged Enclosure
The Cisco 3270 Rugged Enclosure operates in a temperature range from –40 to +165°F (–40 to +74°C)
when all ports are copper. If the Cisco
3270 Router includes a fiber-optic port, it operates at a
temperature range from –40 to +147°F (–40 to +64°C).
The Cisco 3270 Rugged Enclosure is designed to meet NEMA4 requirements. Figure 1-2 shows an
example of a fully assembled Cisco 3270 Rugged Enclosure. Note the greater length to accommodate
the Cisco
3270 Rugged Router card and future expansion.

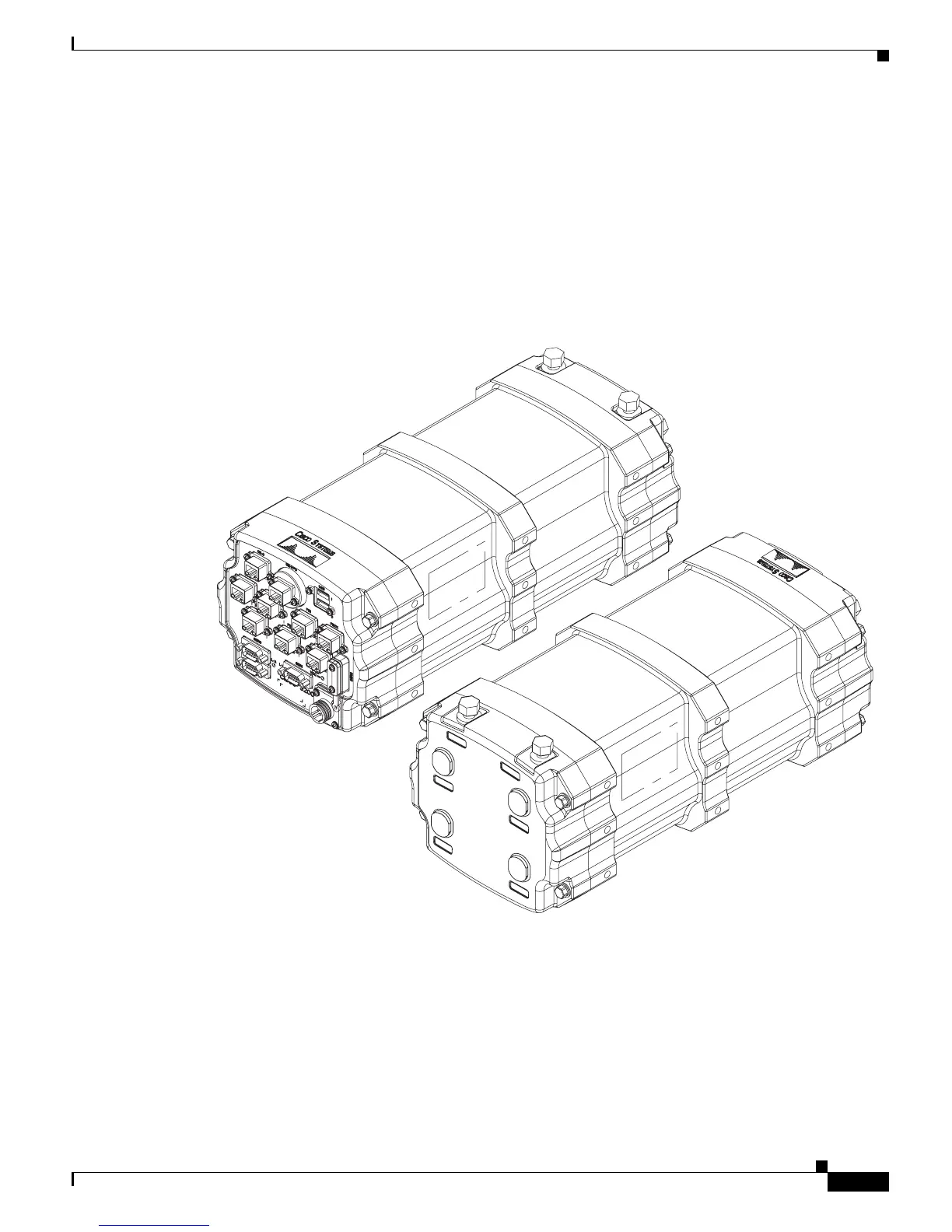

Figure 1-2 Cisco 3270 Rugged Enclosure
270440
