Cisco 3200 Series Router Hardware Reference
OL-5816-10
Chapter 1 Cisco 3200 Rugged Enclosures

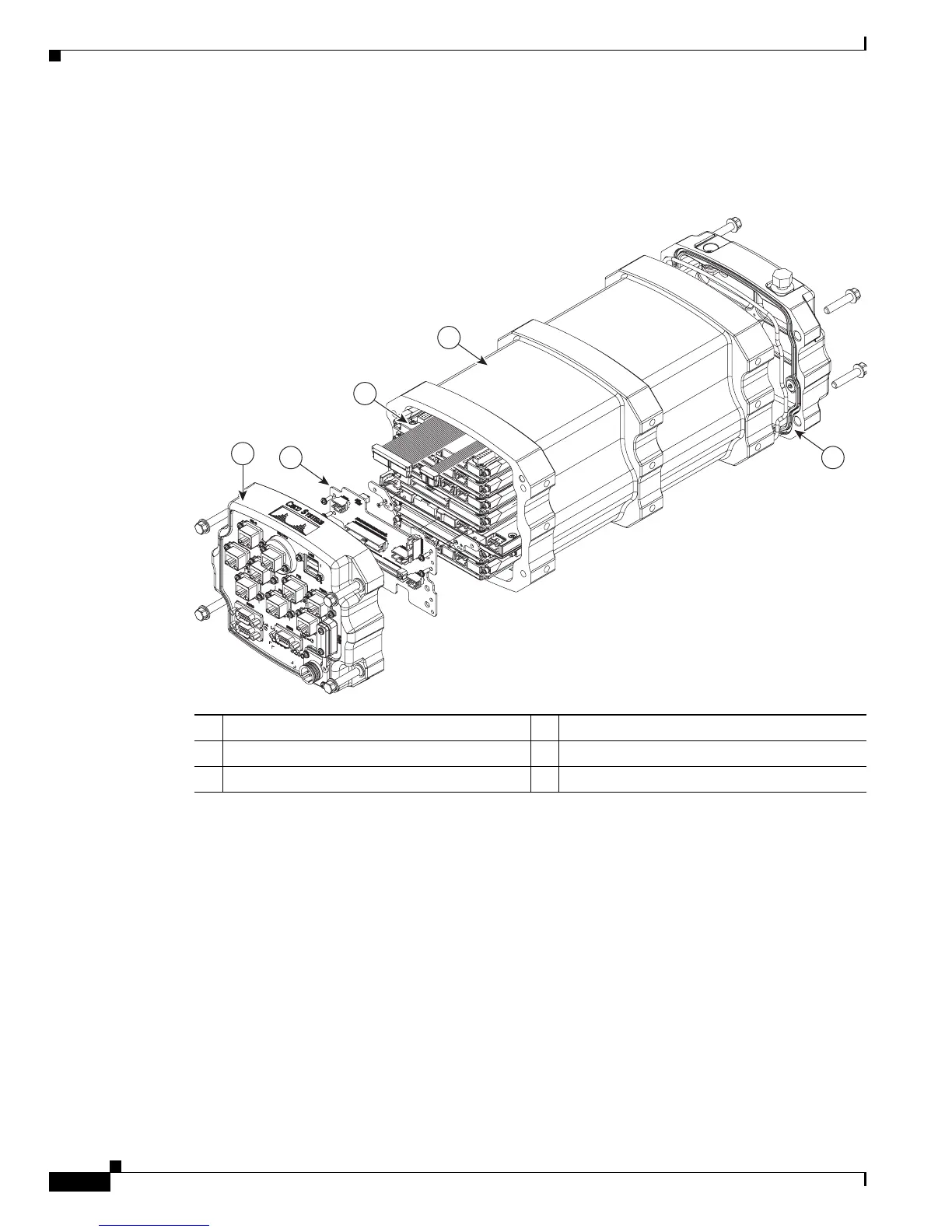

Figure 1-1 shows an exploded view of a Cisco 3230 Rugged Enclosure. (The design of the longer
Cisco 3270 Rugged Enclosure is similar.)
Figure 1-1 Exploded View of a Rugged Enclosure
The enclosures are sealed by using O-rings between the extrusion and the end caps.
1 I/O end cap
1
1. This end cap shows four serial ports, but the typical configuration has two serial ports.
2 Wiring card
3 Card stack 4 Extrusion (body of the enclosure)
5 Antenna end cap
1
2
3
4
5
270439
