3-8
Cisco 3600 Series Routers Hardware Installation Guide
OL-2056-05
Chapter 3 Installing the Router
Installing the Chassis

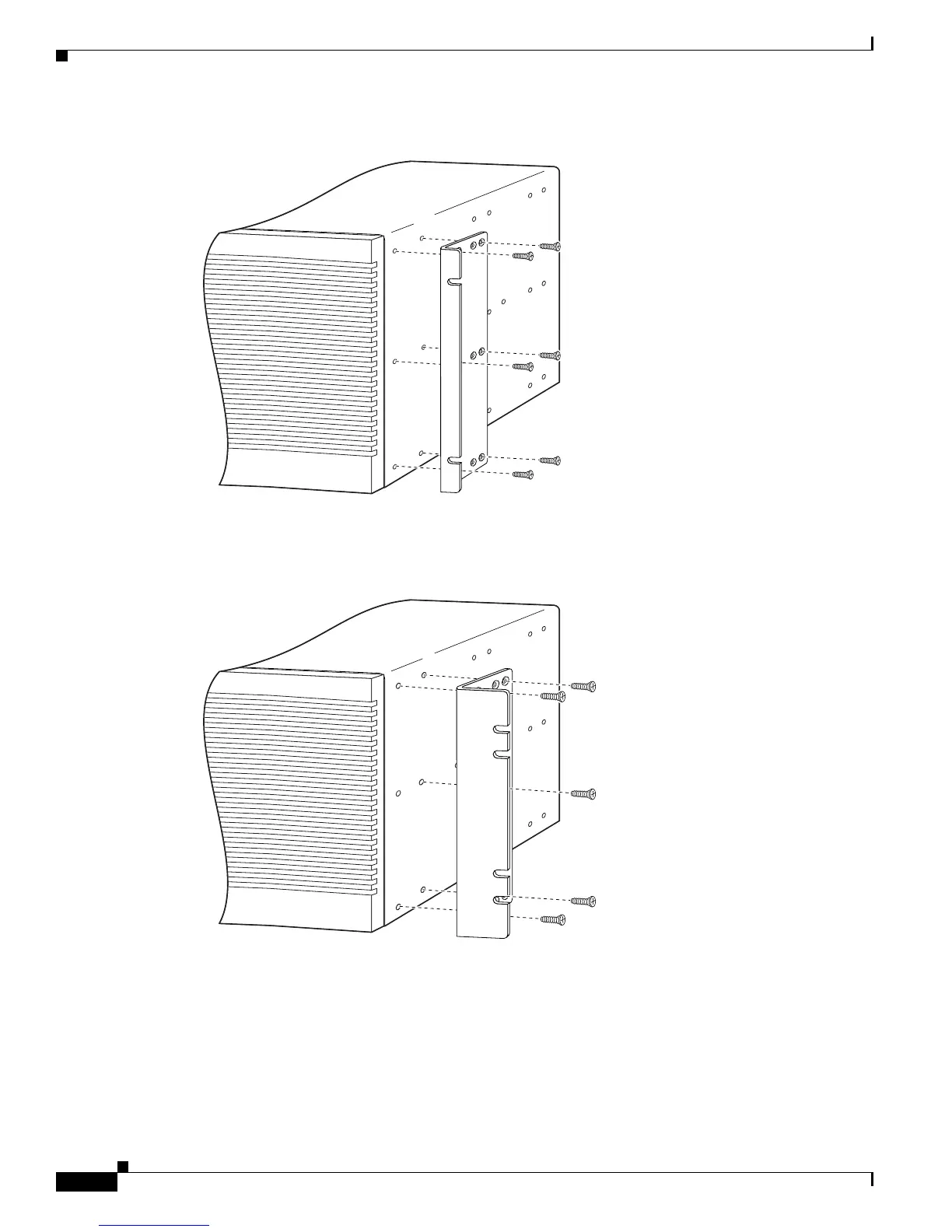

Figure 3-10 Cisco 3660 Bracket Attachment—Front Panel Forward (19-Inch Rack)
Figure 3-11 Cisco 3660 Bracket Attachment—Front Panel Forward (23-Inch Rack)
17327
Note: The second bracket attaches to the other side of the chassis.
26322
Note: The second bracket attaches to the other side of the chassis.
