3-9
Cisco 3600 Series Routers Hardware Installation Guide
OL-2056-05
Chapter 3 Installing the Router
Installing the Chassis
Rear-Panel-Forward Installation
Figure 3-12 through Figure 3-17 show the rear-panel-forward bracket attachment locations.

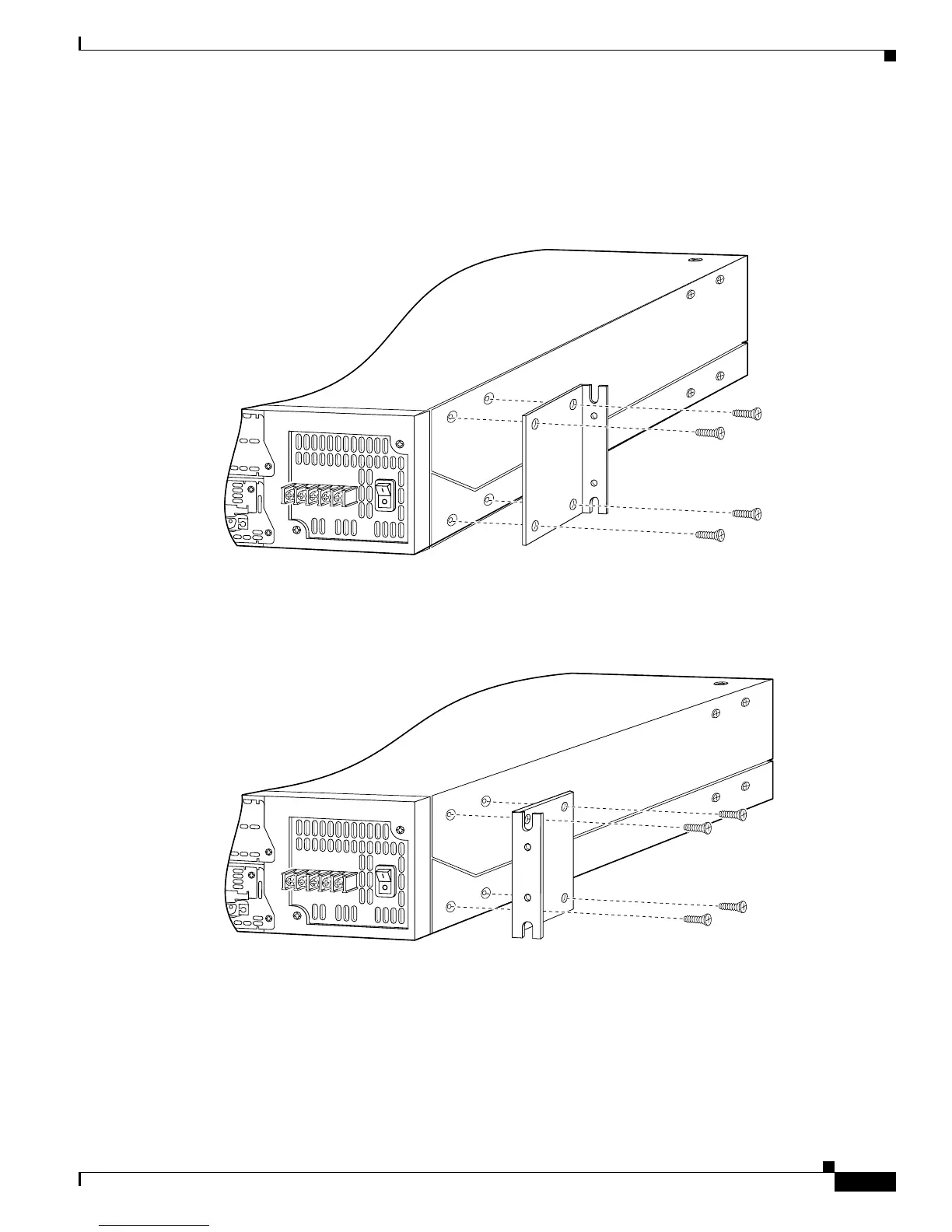

Figure 3-12 Cisco 3620 or Cisco 3640 Bracket Attachment—Rear Panel Forward
(19-Inch Rack with a 17.5-Inch Opening)
Figure 3-13 Cisco 3620 or Cisco 3640 Bracket Attachment—Rear Panel Forward
(19-Inch Rack with a 17.75-Inch Opening)
AUI
EN
W
O
BRI
S/T
26323
Note: The second bracket attaches to the other side of the chassis.
AUI
EN
W
O
BRI
S/T
15854
Note: The second bracket attaches to the other side of the chassis.
