4 500 Series Stackable Managed Switches

Reduced Air Flow—Both side panels must be unobstructed to prevent

overheating.

Mechanical Overloading—The device should be level, stable, and

secure to prevent it from sliding or shifting out of position.

Circuit Overloading—Adding the device to the power outlet must not

overload that circuit.

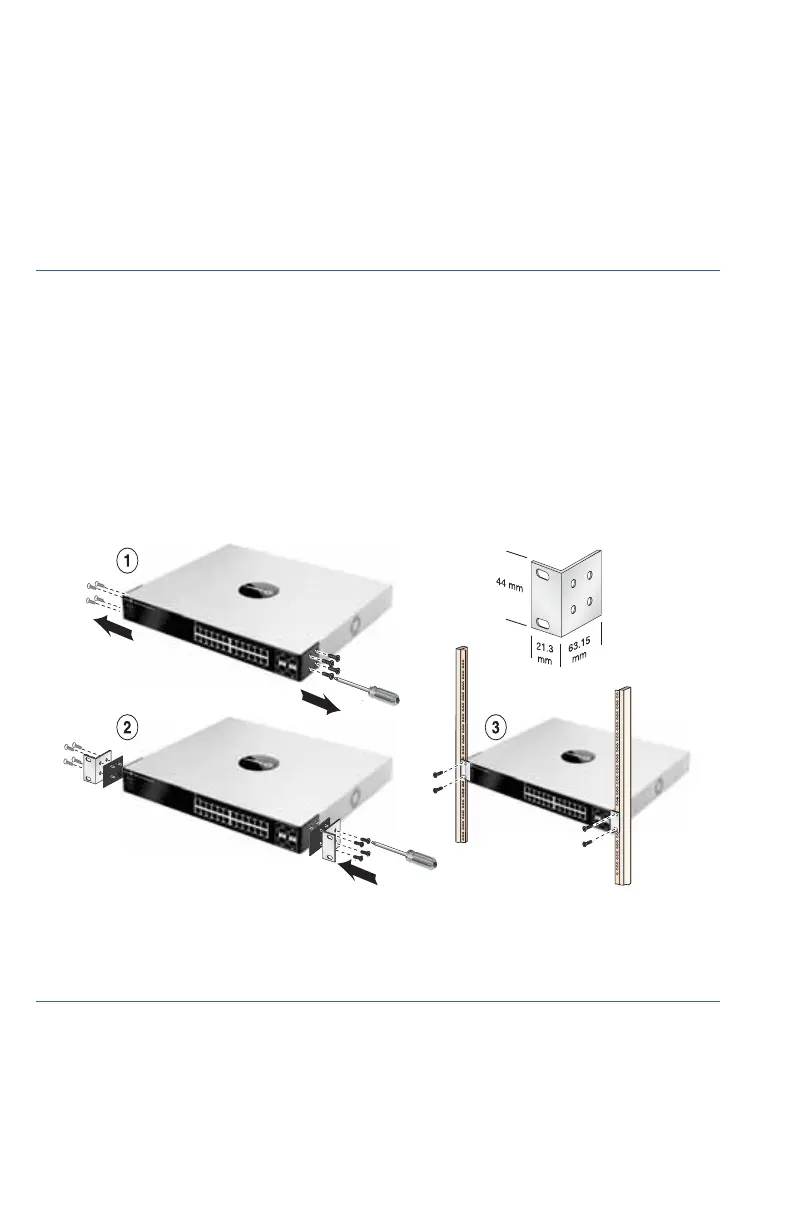

Rack-Mount Placement

STEP 1 Remove the four screws from each side near the front of the switch.

Retain the screws for re-installation. Do not remove the four screws

from each side near the back of the switch.

STEP 2 Place one of the supplied spacers on the side of the switch so the

four holes of the spacers align to the screw holes. Place a rack

mount bracket next to the spacer and reinstall the four screws

removed in step 1.

NOTE Suggested screw size is 6.9 mm (diameter) x 6 mm (height). If your

screws are not long enough to reattach the bracket with the spacer in

place, attach the bracket directly to the case without the spacer.

STEP 3 Repeat Step 2 for the other side of the switch.

STEP 4 After the mounting hardware has been securely attached, the

switch is now ready to be installed into a standard 19-inch rack.

181185
