Cisco 500 Series User Manual

10 500 Series Stackable Managed Switches
CAUTION Make sure that any configuration changes are saved before
exiting by issuing the command:
copy running-config startup-config
You are ready to configure the switch. Refer to the
Cisco 500 Series
Stackable Managed Switch Administration Guide
for further information.
NOTE If you are not using DHCP on your network, set the IP address type
on the switch to Static and change the static IP address and subnet
mask to match your network topology. Failure to do so may result in
multiple switches using the same factory default IP address of
192.168.1.254.
Stacking the Switches
Before configuring the switches as a stack, refer to the Cisco 500 Series
Stackable Managed Switch Administration Guide for additional details.
Refer to the front panel graphics in External Features of the Cisco 500
Series Stackable Managed Switch, page16 to help with the stack port
descriptions and supported modules.

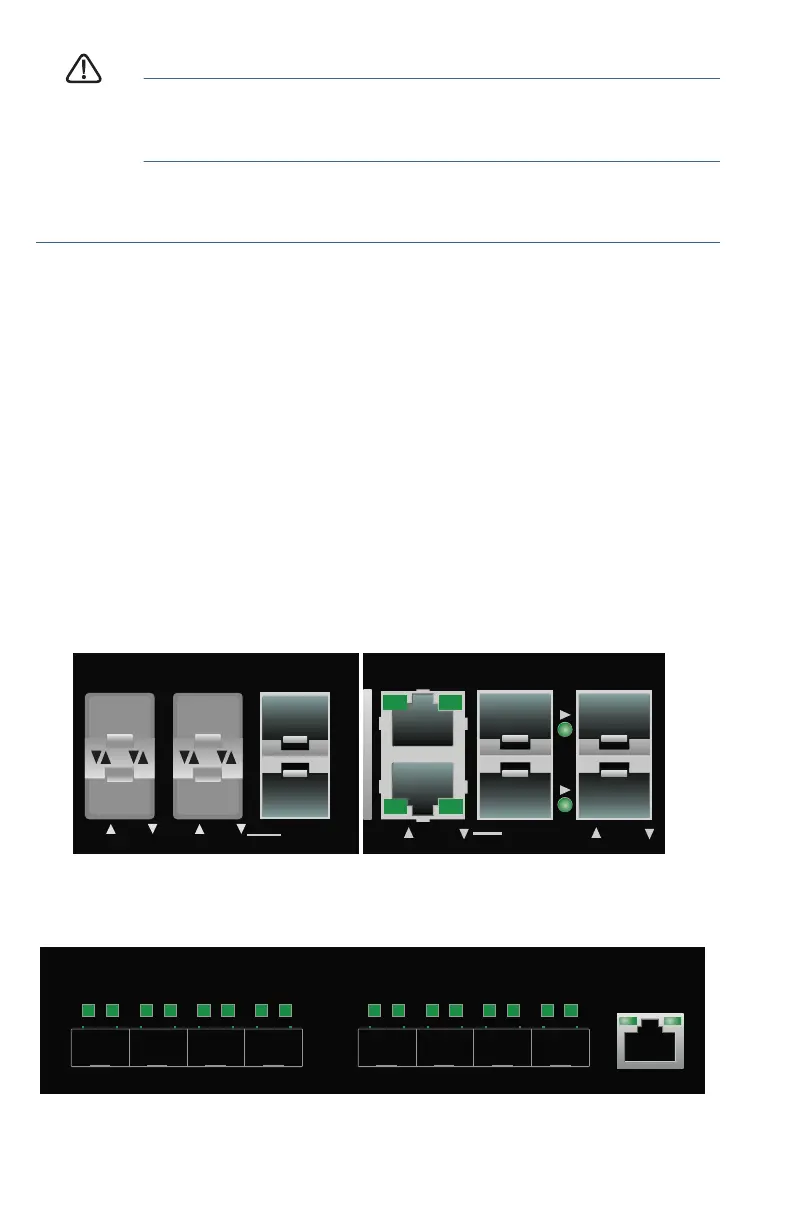

The following graphic shows the stack ports to assist in connecting the
devices in a stack:
The 500X model is on the left, and the Sx500 model is on the right. The
SG500XG-8F8T model is shown below.
SFP G27/S3 G28/S4
1G/5G
G26/S2G25/S1
LINK/ACT GIGABIT
LINK
ACT
LINK
ACT
Cisco Small Business
Cisco Small Business
LINK
ACT XG
XG1
XG2
XG3
/S1
XG4
/S2
5G
Stack
370010
G1
LINK/ACT
LINK
ACT
9101112
XG
LINK
ACT
13 14 15 16
XG GIGABIT
370009

Cisco 500 Series Specifications

General

Model	Cisco 500 Series
Category	Switch
Mounting	Rack-mountable
Management	Web-based, CLI, SNMP
Ports	24, 48
Port Speed	10/100/1000 Mbps
PoE Support	Available on some models
Switching Capacity	Up to 176 Gbps
MAC Address Table Size	16, 000 entries
Security	ACLs, 802.1X
Quality of Service (QoS)	Yes
Dimensions	Varies by model
Weight	Varies by model
Humidity	10% to 90% non-condensing
Power Supply	Internal
Power Consumption	Varies by model
Jumbo Frame Support	Up to 9216 bytes
