3-11
Cisco ASA 5500 Series Hardware Installation Guide
78-17374-01
Chapter 3 ASA 5510, ASA 5520, ASA 5540, and ASA 5550
Installing the Chassis
c. Auxiliary port
–
Connect the serial console cable as shown in Figure 3-10. The console cable has a DB-9
connector on one end for the serial port on your computer, and the other end is an RJ-45
connector.
–
Connect the RJ-45 connector to the auxiliary port (labeled AUX) on the adaptive security
appliance.
–
Connect the other end of the cable, the DB-9 connector, to the serial port on your computer.

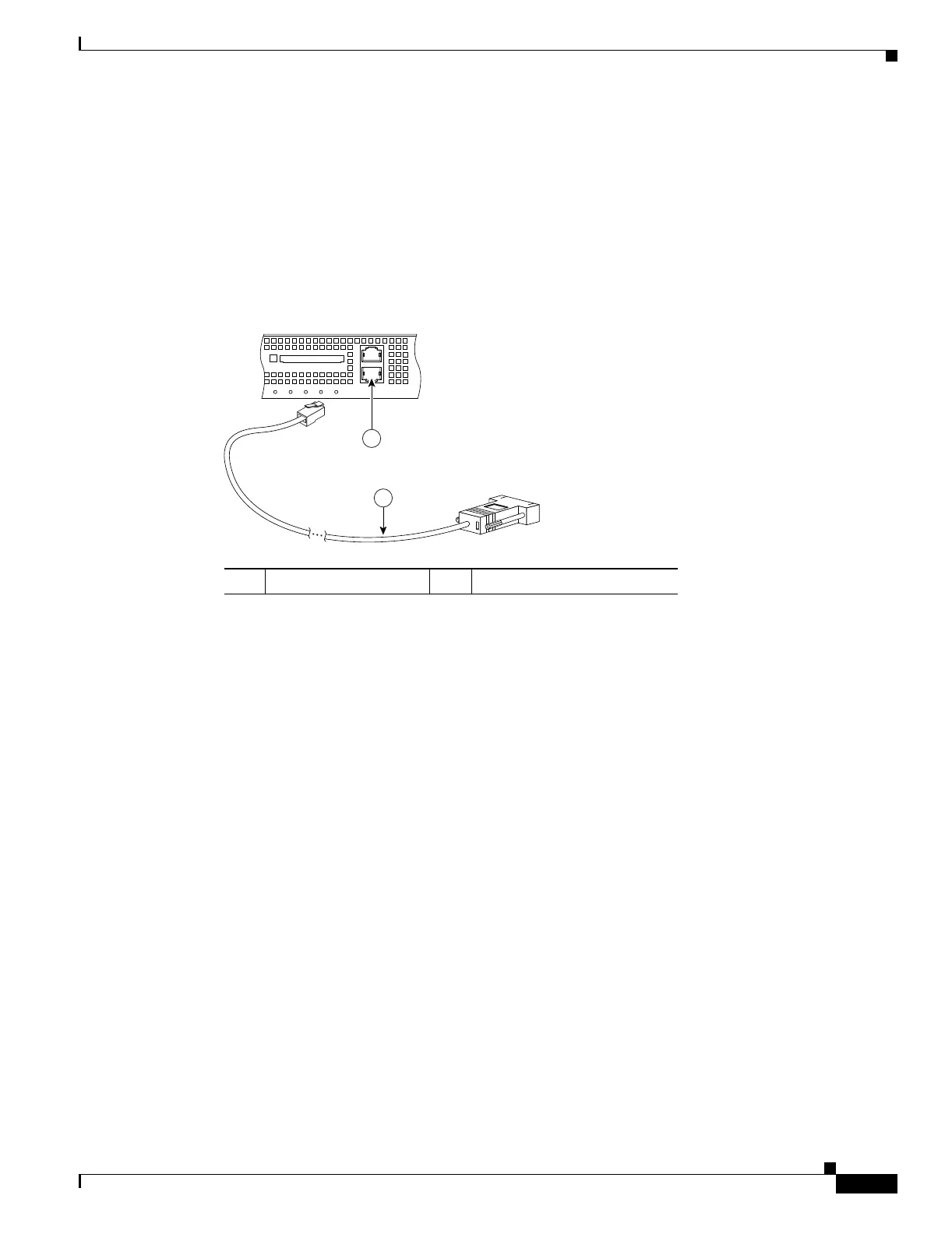

Figure 3-11 Connecting to the AUX Port
1 RJ-45 AUX port 2 RJ-45 to DB-9 console cable
92686
FLASH
CONSOLE
AUX
POWER
STATUS
FLASH
VPN
ACTI VE
2
1
