Chapter 3 Installing a Cisco 7200 VXR Router
Attaching a Chassis Ground Connection
Use the following procedure to attach the grounding lug to the chassis grounding receptacles on your
router chassis:

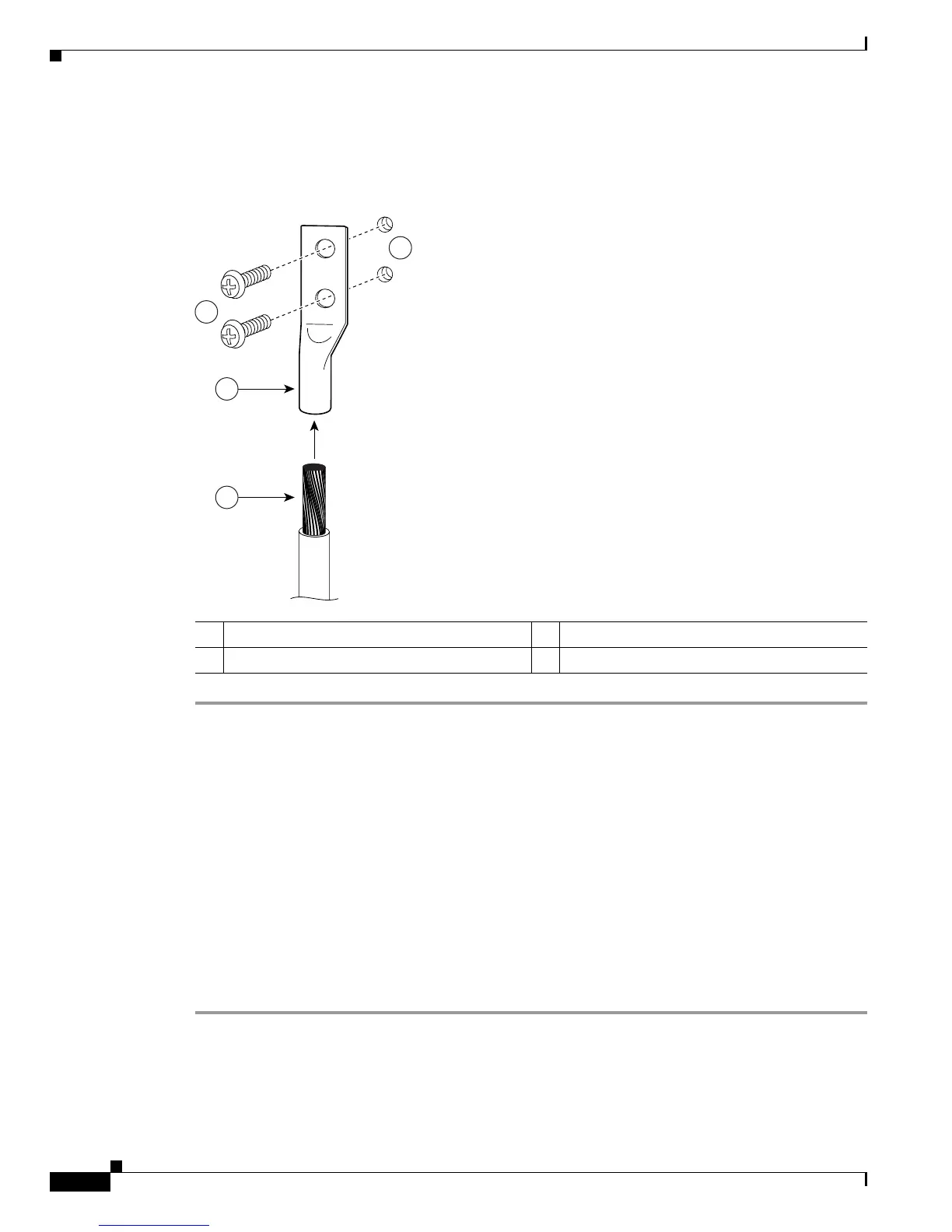

Figure 3-14 Attaching a Grounding Lug to the Chassis Grounding Receptacles
Step 1 Locate the chassis grounding receptacles on your router chassis. (See Figure 1-4 in Chapter 1,
“Cisco 7206VXR Overview.”)
Step 2 Insert the two screws through the holes in the grounding lug. (See Figure 3-14.) Ensure that the
grounding lug does not interfere with other router hardware, such as power supplies or the network
processing engine or network services engine.
Step 3 Use the Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly to the
chassis. Do not overtighten the screws.
Step 4 Use the wire stripper to strip one end of the 6-AWG wire approximately 0.75 inches (19.05 mm).
Step 5 Insert the 6-AWG wire into the wire receptacle on the grounding lug (See Figure 3-14.)
Step 6 Use the crimping tool to carefully crimp the wire receptacle around the wire; this step is required to
ensure a proper mechanical connection.
Step 7 Connect the opposite end of the grounding wire to the appropriate grounding point at your site to ensure
an adequate chassis ground.
This completes the procedure for providing a chassis ground connection.
1 Screws 3 Grounding lug
2 Chassis grounding receptacles 4 Wire
