Chapter 1 Cisco 7200 VXR Product Overview
Field-Replaceable Units

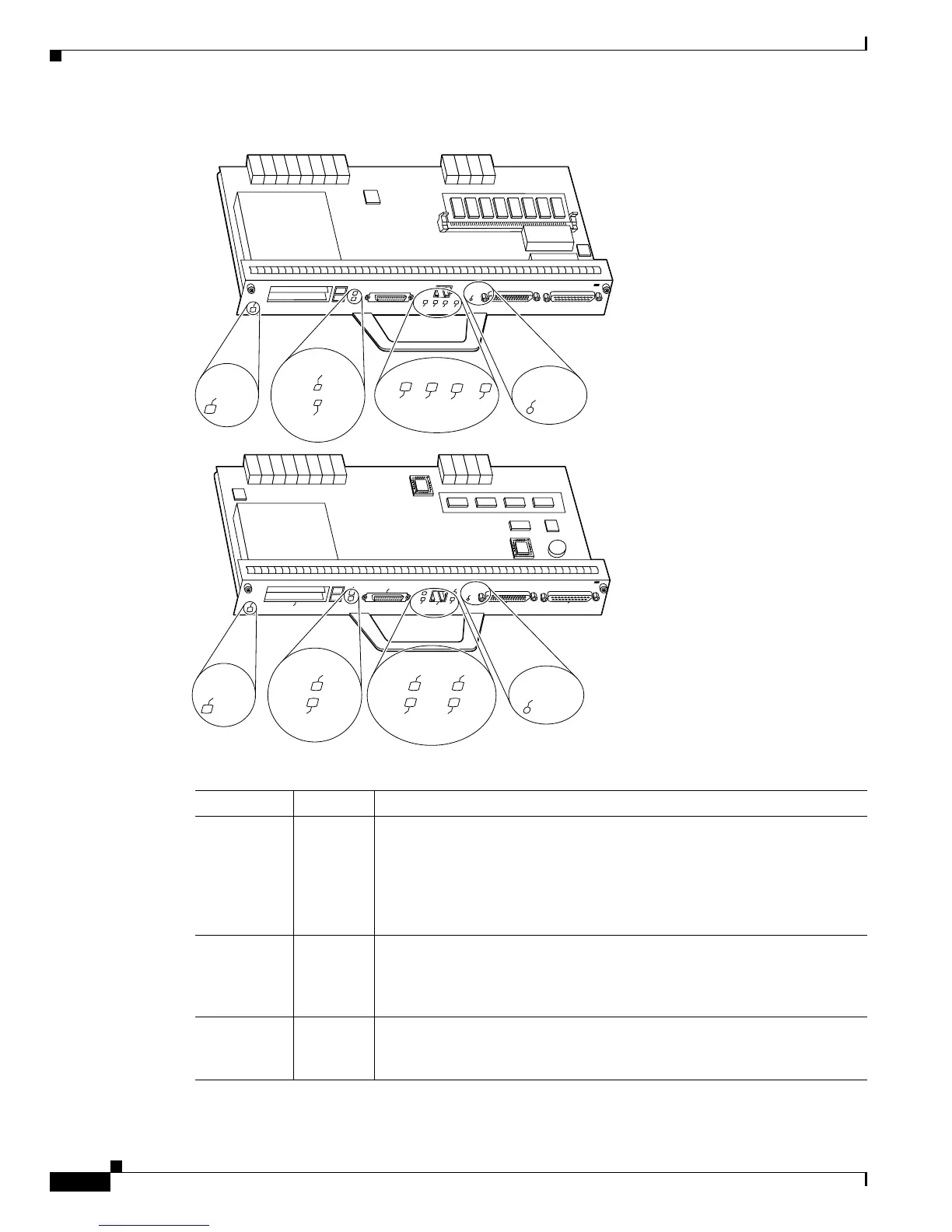

Figure 1-25 C7200-I/O-FE LEDs and CPU Reset Button
Ta b l e 1-29 C7200-I/O-FE I/O Controller LEDs
LED Color Function
MII EN Green Indicates that the Fast Ethernet MII receptacle is initialized and enabled by
the system, and is configured for operation. This LED comes on after the
I/O controller has been enabled and the MII receptacle has been configured
as the media type for the Fast Ethernet port (the RJ-45 receptacle is the
default media type for the Fast
Ethernet port). This LED remains on during
normal operation of the router.
RJ45 EN Green Indicates that the Fast Ethernet RJ-45 receptacle (the default media type
for the Fast Ethernet port) is initialized and enabled by the system. This
LED comes on after the I/O controller has been enabled and remains on
during normal operation of the router.
RJ45 LINK Green Indicates that the Fast Ethernet RJ-45 receptacle has established a valid
link with the network. This LED remains off during normal operation of
the router unless there is an incoming carrier signal.
H11294
