Chapter 2 Preparing for Installation
Site Requirement Guidelines

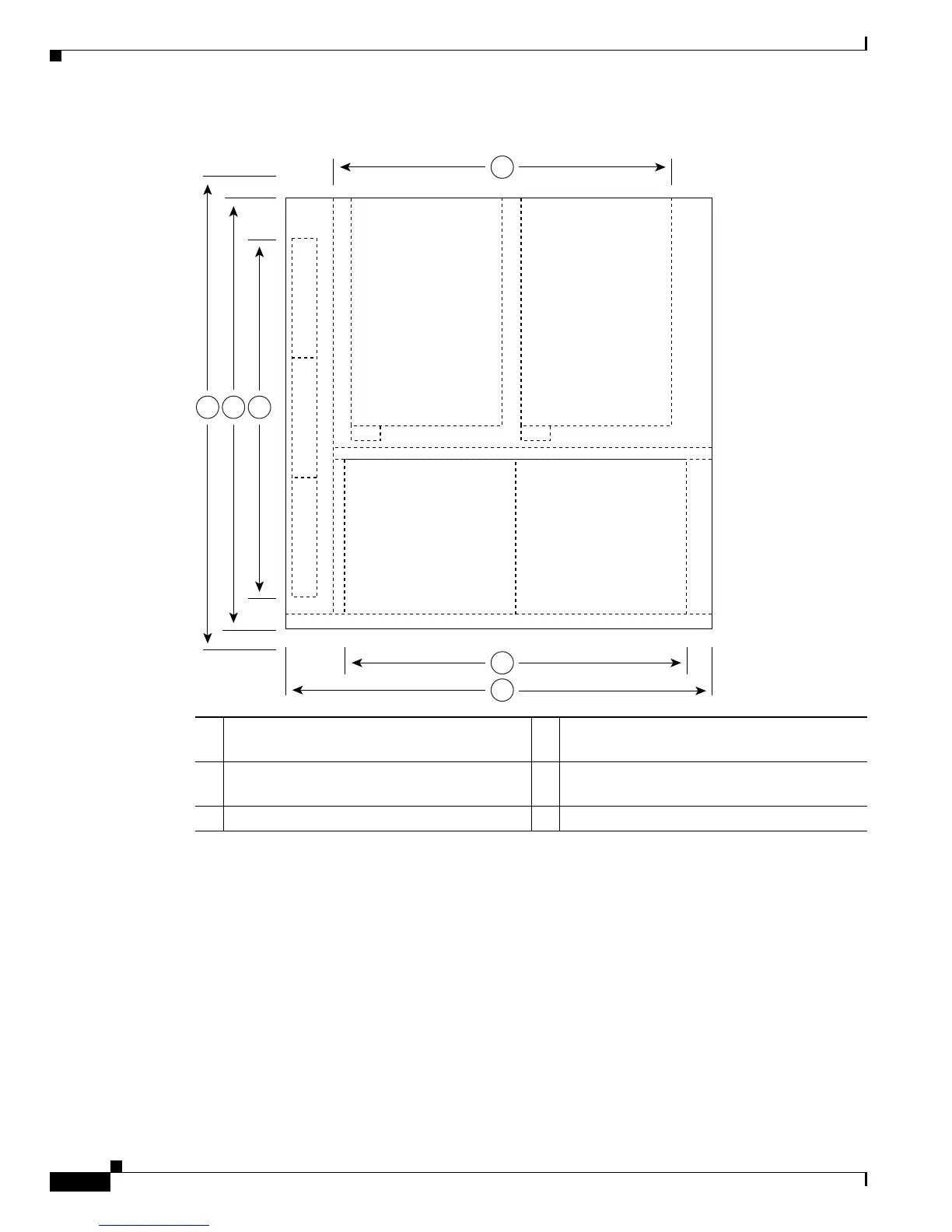

Figure 2-2 Cisco 7200 VXR Router Footprint and Outer Dimensions
1 Network processing engine width 13.8 in.
(35.05 cm)
4 Fan tray depth 15.81 in. (40.16 cm)
2 Chassis depth (including cable service loop
and port adapter cables) 26 in. (66.04 cm)
5 Card cage and I/O controller width 13.5 in.
(34.29 cm)
3 chassis depth 17.0 in. (43.18 cm) 6 Chassis width 16.8 in. (42.67 cm).
2
1
6
5
3 4
84536
