Send document comments to nexus7k-docfeedback@cisco.com
9-6
Cisco Nexus 7000 Series NX-OS Interfaces Configuration Guide, Release 5.x
OL-23435-03
Chapter 9 Configuring Q-in-Q VLAN Tunnels
Information About Layer 2 Protocol Tunneling

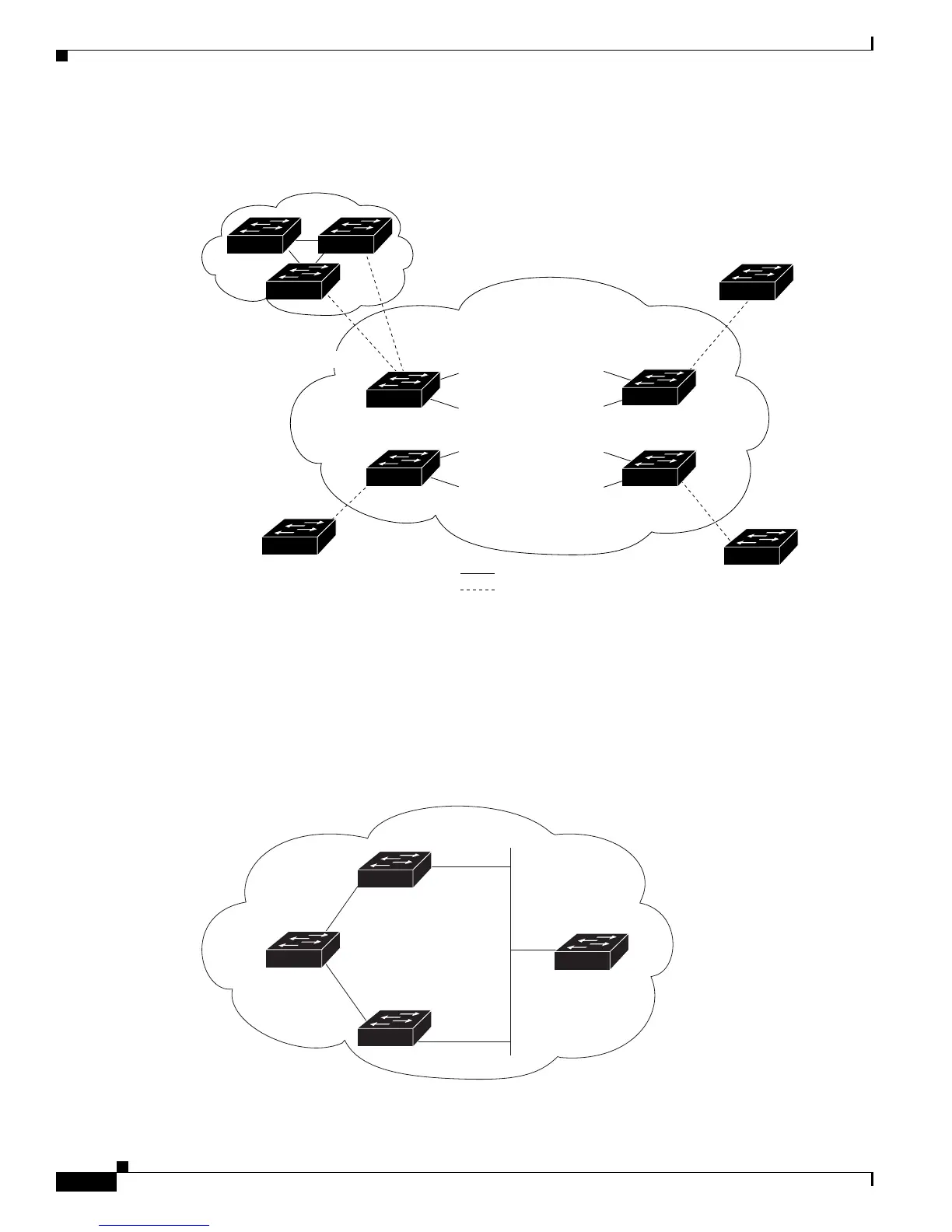

Figure 9-4 Layer 2 Protocol Tunneling
In the preceding example, STP for a VLAN on a switch in Customer X, Site 1 will build a spanning tree
on the switches at that site without considering convergence parameters based on Customer X’s switch
in Site 2.
Figure 9-5 shows the resulting topology on the customer’s network when BPDU tunneling is not
enabled.
Figure 9-5 Virtual Network Topology Without BPDU Tunneling
Customer X Site 2
VLANs 1 to 100
Customer Y Site 2
VLANs 1 to 200
Customer Y Site 1
VLANs 1 to 200
Customer X Site 1
VLANs 1 to 100
VLAN 30
Trunk
ports
Switch A
Trunk
ports
VLAN 30
VLAN 40
Service
provider
101822
Trunk
Asymmetric link
VLAN 30
VLAN 40
Trunk
ports
Switch B
Switch C
Switch D
Trunk
ports
197206
Customer A
virtual network
VLANs 1 to 100
