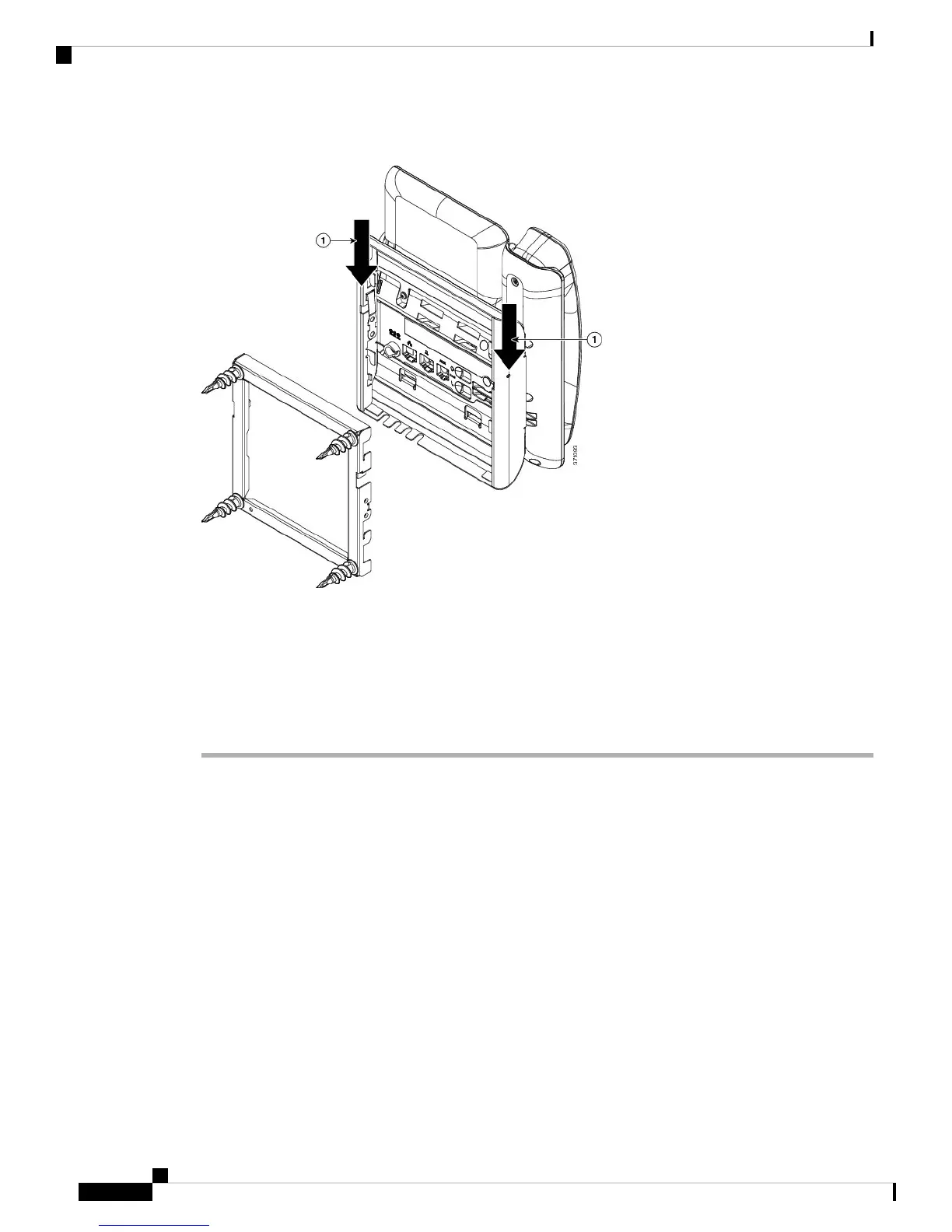

Figure 17: Tab Location
To remove the phone and mounting plate from the wall bracket, you must disengage these tabs.
Before you begin
You require two screwdrivers or metal rods.
Procedure
Step 1 Push the screwdrivers into the left and right holes in the phone mounting plate approximately 1 in. (2.5 cm).
Step 2 Lift the screwdriver handles up to push down on the tabs.
Wall Mounts
16
Wall Mounts
Remove the Phone from the Non-Lockable Wall Mount

Cisco 7861 Specifications

General

Speakerphone	Yes
Wall Mountable	Yes
Protocols	SIP
Display	3.5-inch grayscale
PoE	Yes
Audio Codec	G.711, G.729, G.722, iLBC
Headset Port	Yes
Weight	1031 g
Line Keys	16 line keys
