Cisco 7925G Installing Guide

Charge Phone Battery Using Power Supply
Use the following figure and steps to charge the phone battery quickly.

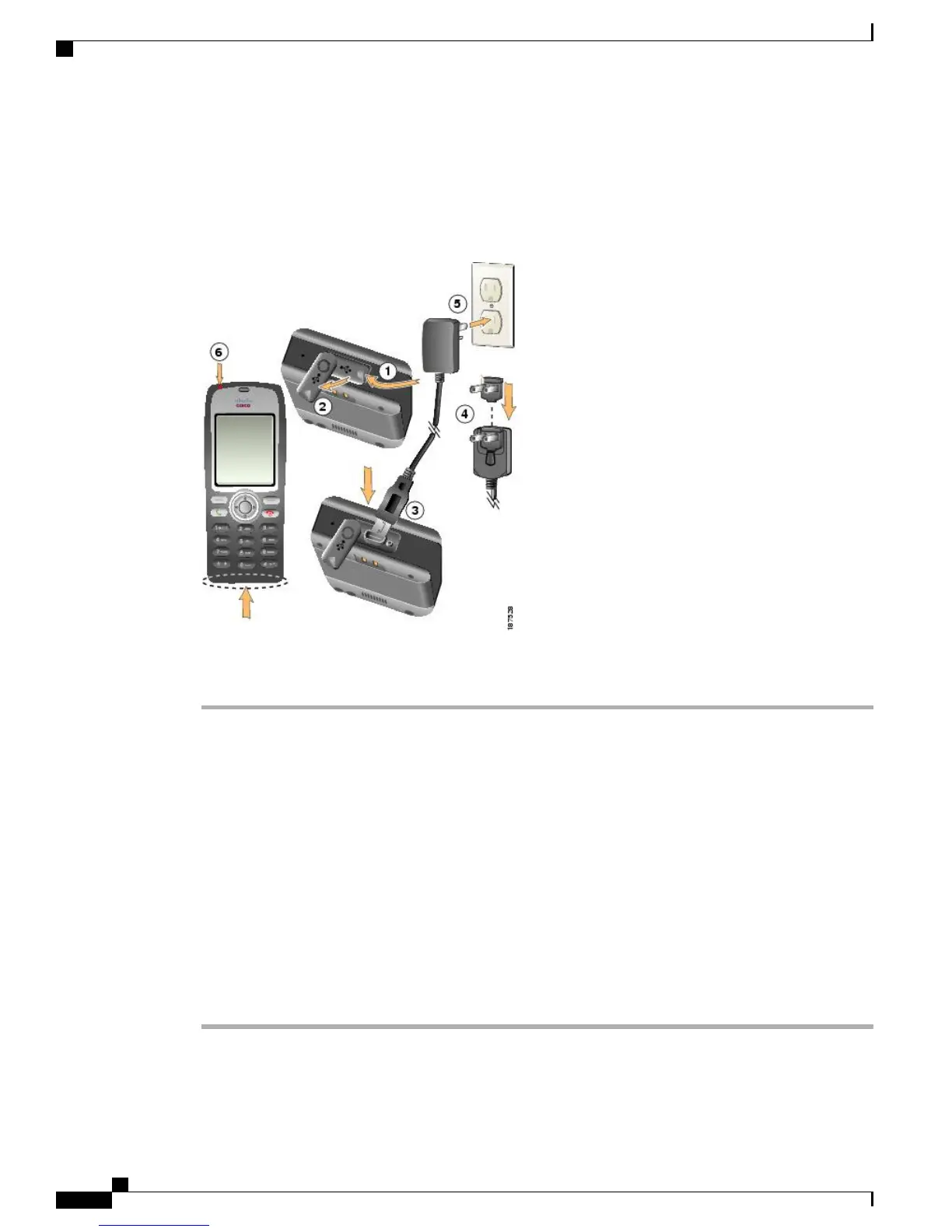

Figure 4: Charge the Phone Battery
Procedure
Step 1
Lift the mini-USB port cover on the bottom of phone.
Step 2
Swing the port cover to one side.
Step 3
Insert the AC power supply mini-USB connector in the port.
Step 4
Insert the AC plug adapter in the slot on the power supply.
Step 5
Insert the AC power supply in a wall outlet.
The indicator light indicates the charging status:
Red
Battery charging in process.
Green
Battery charging is complete.
You can use the phone while the battery is being charged. For charging times, see Phone Power, on
page 8.
Note
Cisco Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G Administration Guide
12
Cisco Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G Setup
Phone Power

Cisco 7925G Specifications

General

Keypad number of keys	12
Display diagonal	2 \
Display resolution	176 x 220 pixels
Call waiting	Yes
Lines quantity	6 lines
Voice codecs	G.711a, G.722, G.729a, iLBC
Security algorithms	128-bit WEP, SSL/TLS, WPA
Supported network protocols	DHCP, TFTP, DNS, SCCP, SRST
Input voltage	100 - 240 V
Dimensions (WxDxH)	52 x 20 x 127 mm
Minimum system requirements	Cisco Unified Communications Manager 4.1, 4.2, 4.3, 5.1, 6.0, 6.1, 7.0 + Cisco Unified Communications Manager Express 4.3 +
Input frequency	50/60 Hz
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Product type	IP Phone
Product color	Gray
Safety	UL 60950, CSA 22.2 No.60950, EN 60950, IEC 60950, AS/NZS 60950, IEC 60529 (IP 54)
Certification	47 CFR 15 B ICES-003 B EN 55022 B AS/NZS CISPR 22 B CISPR 22 B VCCI B EN 61000-3-2 EN 61000-3-3 KN 22 EN 55024 EN 50082-1 EN 61000-6-1 EN 300386 EN 60601-1-2 KN
Compliance industry standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.1X, IEEE 802.11e

Weight and Dimensions

Weight	138 g
