Cisco 7942G Phone Guide

4 OL-17709-01
Connecting Your Phone
Your system administrator will likely connect your new Cisco Unified IP Phone to the corporate IP

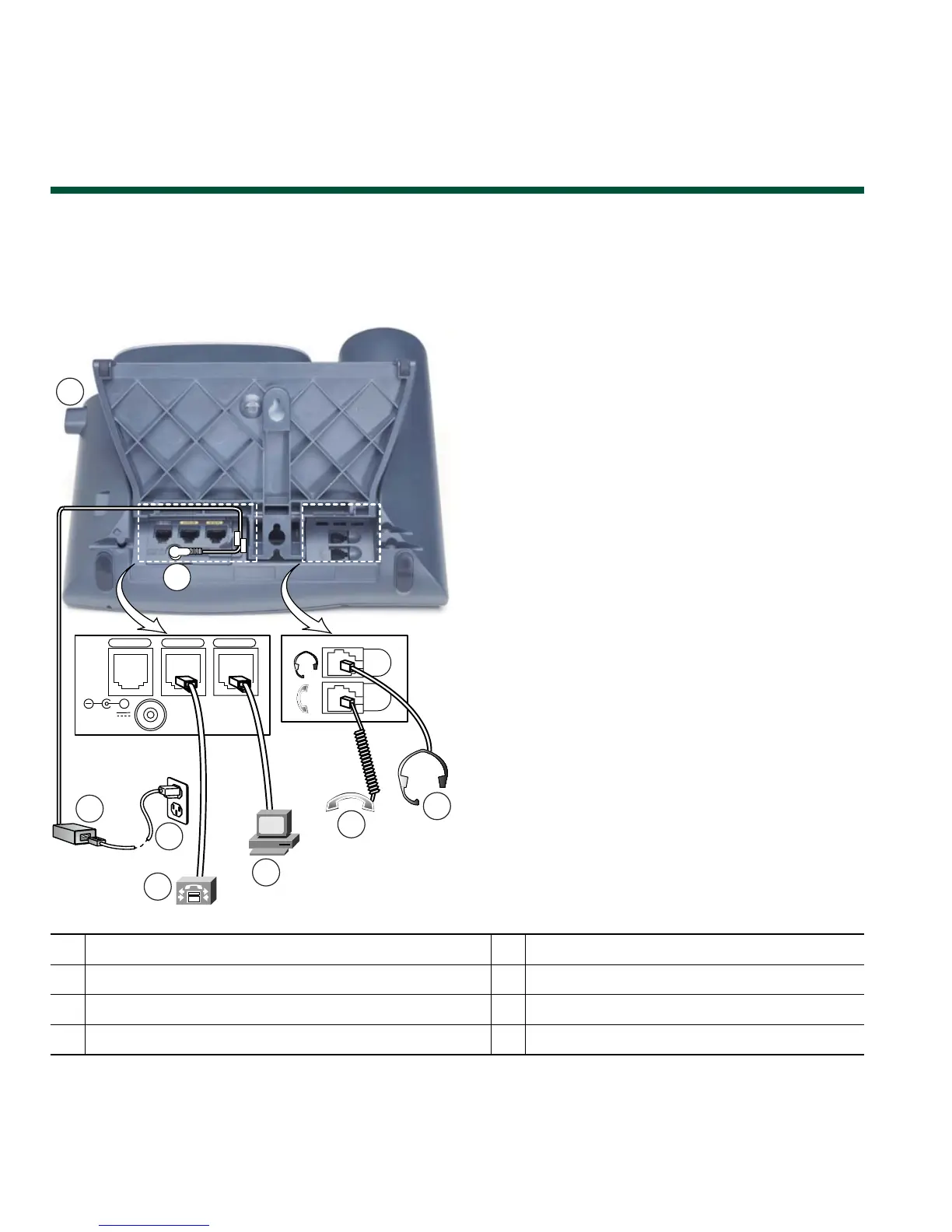

telephony network. If that is not the case, refer to the graphic and table below to connect your phone.
1
DC adaptor port (DC48V)
5
Access port (10/100 PC)
2
AC-to-DC power supply
6
Handset port
3
AC power cord
7
Headset port
4
Network port (10/100 SW)
8
Footstand button
AUX
DC48V
10/100 SW 10/100 PC
+
113656
2
8
3
4
5
6
7
1

Cisco 7942G Specifications

General

Lines	2
Audio Codec Support	G.711, G.729a, G.729ab, G.722
Network Protocols	SIP, SCCP
Ethernet Ports	2 x 10/100
Power Options	PoE 802.3af, Optional Power Cube
Speakerphone	Yes
Headset Port	Yes
Weight	3.5 lbs
