Cisco 8821 Setup

The battery has metal contacts that must connect to the contacts in the battery compartment. The battery also
has an arrow at the bottom and the Cisco logo at the top.
When the battery is correctly inserted, the logo and arrow are visible. The arrow points towards the connector
on the base of the phone and the logo is close to the locking catch.

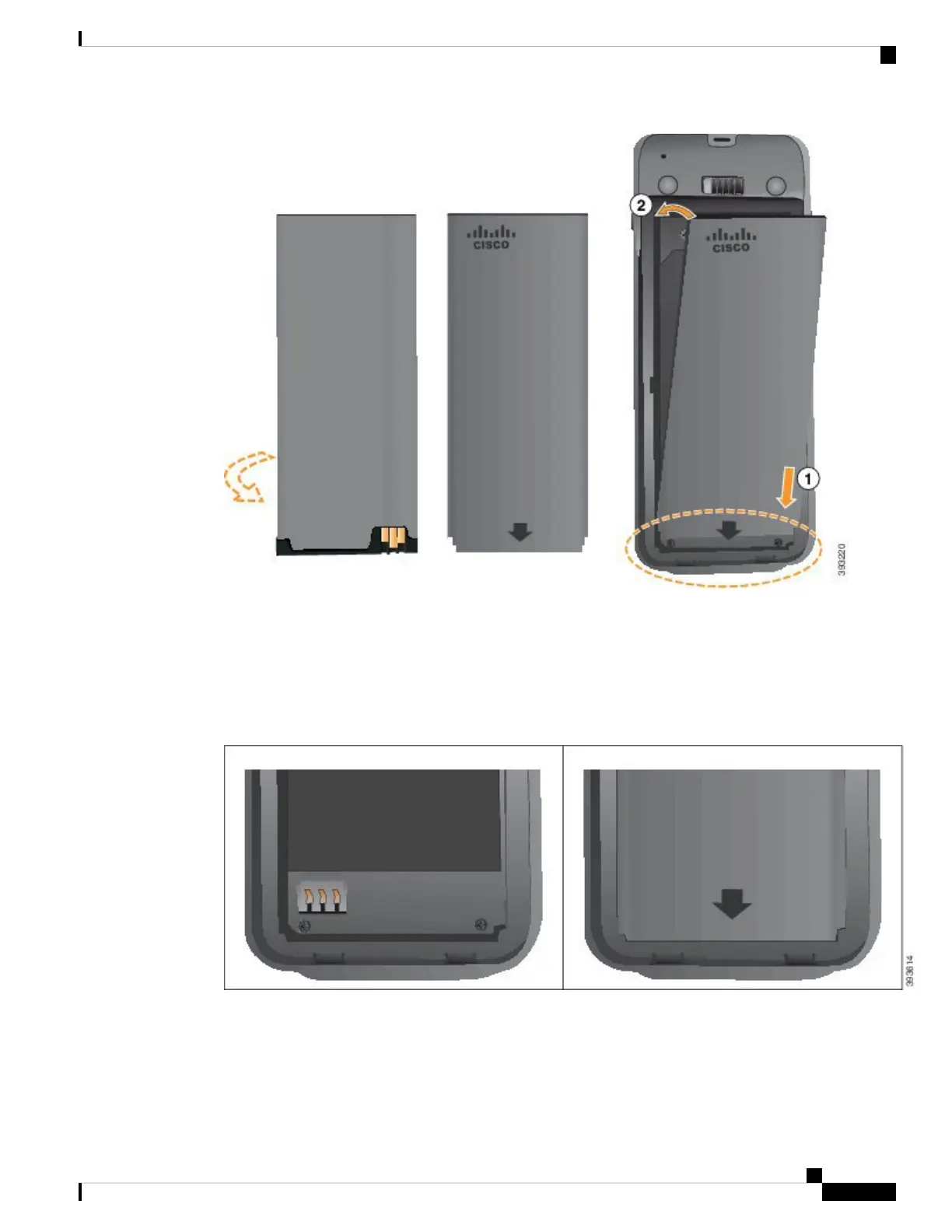

The battery compartment has small tabs in the bottom corners. The battery must slide under these tabs. The
following graphic shows the battery compartment without and with the battery correctly installed.
a) Hold the battery so that the lower edge is close to the bottom of the compartment. Make sure that the
metal contacts on the phone and battery face each other. On the battery, the Cisco logo must be near the
locking catch and the arrow must point to the base of the phone.
Phone Setup
3
Phone Setup
Install the Cisco Wireless IP Phone 8821 Battery

Cisco 8821 Specifications

General

Wi-Fi	Yes
Ethernet LAN	No
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	3.0+HS
Security algorithms	EAP-FAST, EAP-TLS, PEAP, WPA
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r
USB 2.0 ports quantity	1
Voice codecs	G.711, G.711a, G.722, G.729, G.729ab, iLBC
Volume control	Digital
Product type	IP mobile phone
Product color	Black
Input frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	0.2 A
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Frequency band	2.412, 2.472, 5.180, 5.240, 5.260, 5.320, 5.500, 5.700, 5.745, 5.825 GHz
Lines quantity	- lines
Phonebook capacity	- entries
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Safety	UL 60950-1, CAN/CSA 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEC 60529 (IP 67)
Certification	● 47 CFR 15 B ● ICES-003 B ● EN 55022 B ● AS/NZS CISPR 22 B ● CISPR 22 B ● VCCI B ● EN 61000-3-2 ● EN 61000-3-3 ● KN 22 B ● EN 55024 ● EN 50082-1 ● EN 61000-6-1 ● EN61000-6-3 ● EN 300386 ● EN 60601-1-2 ● KN
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	17 mm
Width	56 mm
Height	132 mm
Weight	126 g
