Cisco 8821 Setup

When you close the battery cover, make sure that it is completely closed. Otherwise dust and water
can enter the battery compartment.
Caution

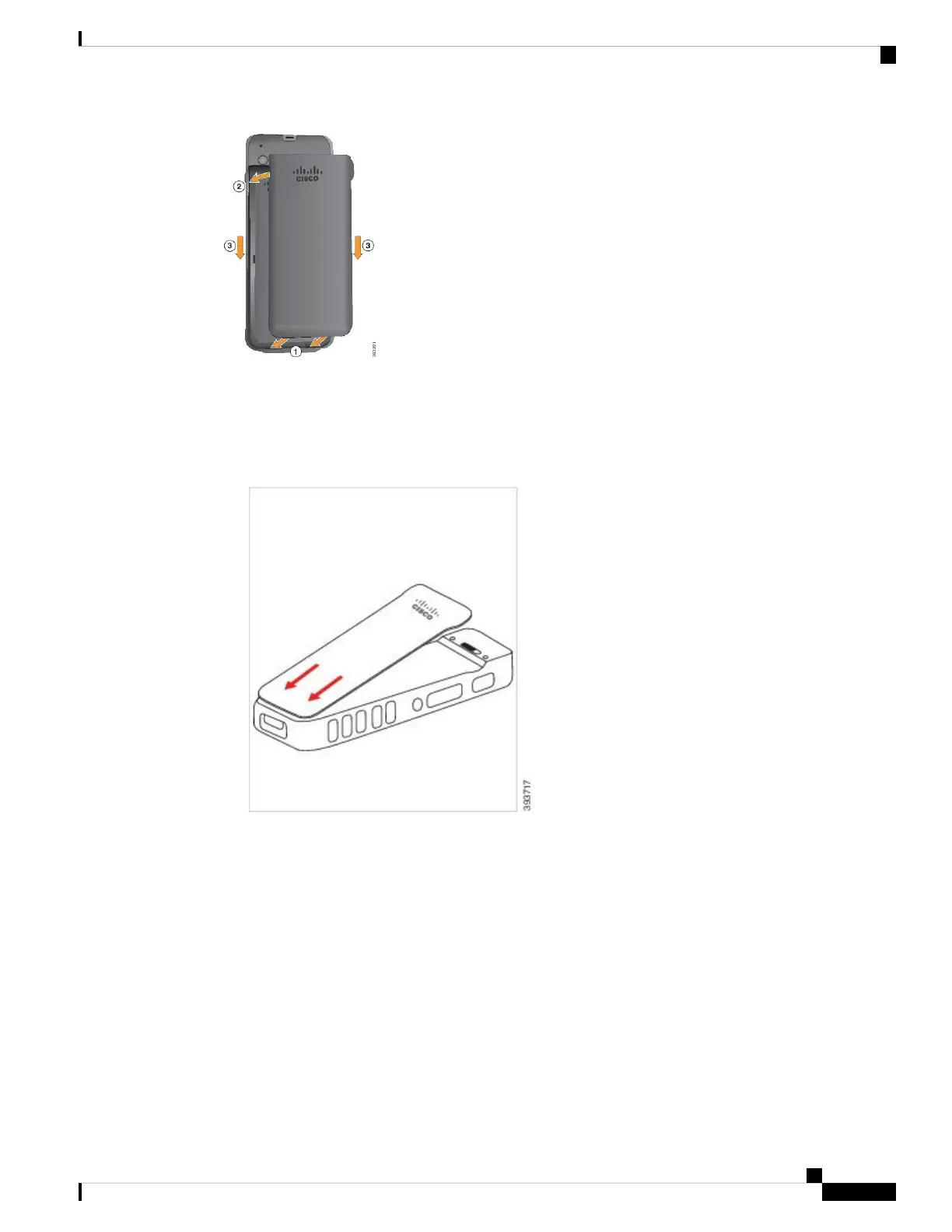

a) Align the tabs at the bottom of the cover into the notches on the phone.
The tabs slide into the phone.
b) Press the cover firmly against the phone until it clicks in place. Press at the top, middle, and bottom of
the cover on each side.
Press at the top, middle, and bottom of the cover on each side.
Phone Setup
5
Phone Setup
Install the Cisco Wireless IP Phone 8821 Battery

Cisco 8821 Specifications

General

Wi-Fi	Yes
Ethernet LAN	No
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	3.0+HS
Security algorithms	EAP-FAST, EAP-TLS, PEAP, WPA
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r
USB 2.0 ports quantity	1
Voice codecs	G.711, G.711a, G.722, G.729, G.729ab, iLBC
Volume control	Digital
Product type	IP mobile phone
Product color	Black
Input frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	0.2 A
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Frequency band	2.412, 2.472, 5.180, 5.240, 5.260, 5.320, 5.500, 5.700, 5.745, 5.825 GHz
Lines quantity	- lines
Phonebook capacity	- entries
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Safety	UL 60950-1, CAN/CSA 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEC 60529 (IP 67)
Certification	● 47 CFR 15 B ● ICES-003 B ● EN 55022 B ● AS/NZS CISPR 22 B ● CISPR 22 B ● VCCI B ● EN 61000-3-2 ● EN 61000-3-3 ● KN 22 B ● EN 55024 ● EN 50082-1 ● EN 61000-6-1 ● EN61000-6-3 ● EN 300386 ● EN 60601-1-2 ● KN
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	17 mm
Width	56 mm
Height	132 mm
Weight	126 g
