Installation Guide for Cisco IP Phone with Multiplatform Firmware
16
Wall Mount Your 6800 Series Phones
Wall Mount Your Phone
393678
1234

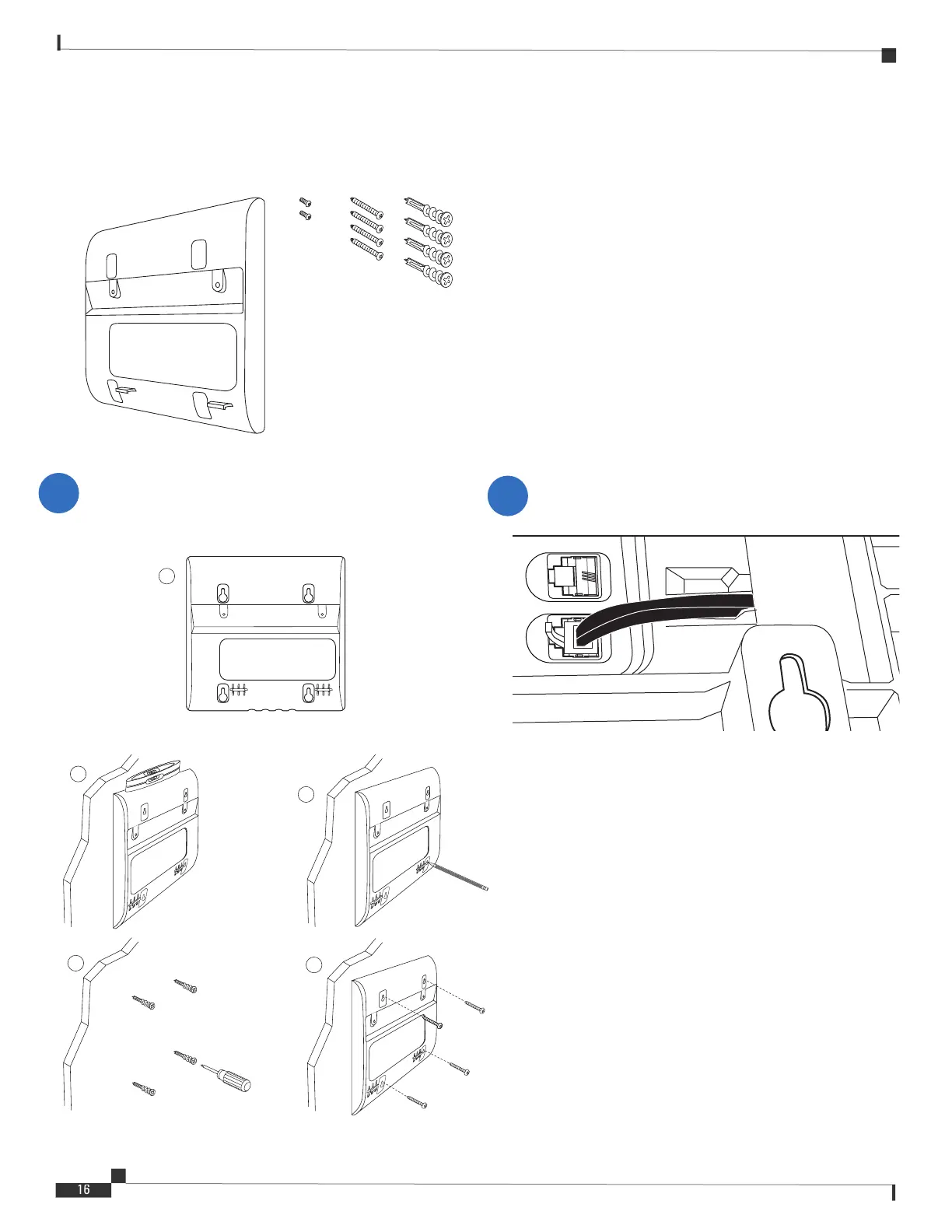

Components:
1. One wall bracket
2. Two M3-7L screws
3. Four M4-25L screws
4. Four drywall anchors
Wall Mount Your 6841/6851/6861/6871 Phone
Mount the wall bracket in the desired location.
1
448162
5
1
2
3
4
393683
Connect the handset and push the cable into the
notch.
2
