Cisco 8865 Installation Guide

Installation Guide for Cisco IP Phone with Multiplatform Firmware
2
Connect and Power Up a Cisco IP Phone
Basic Installation

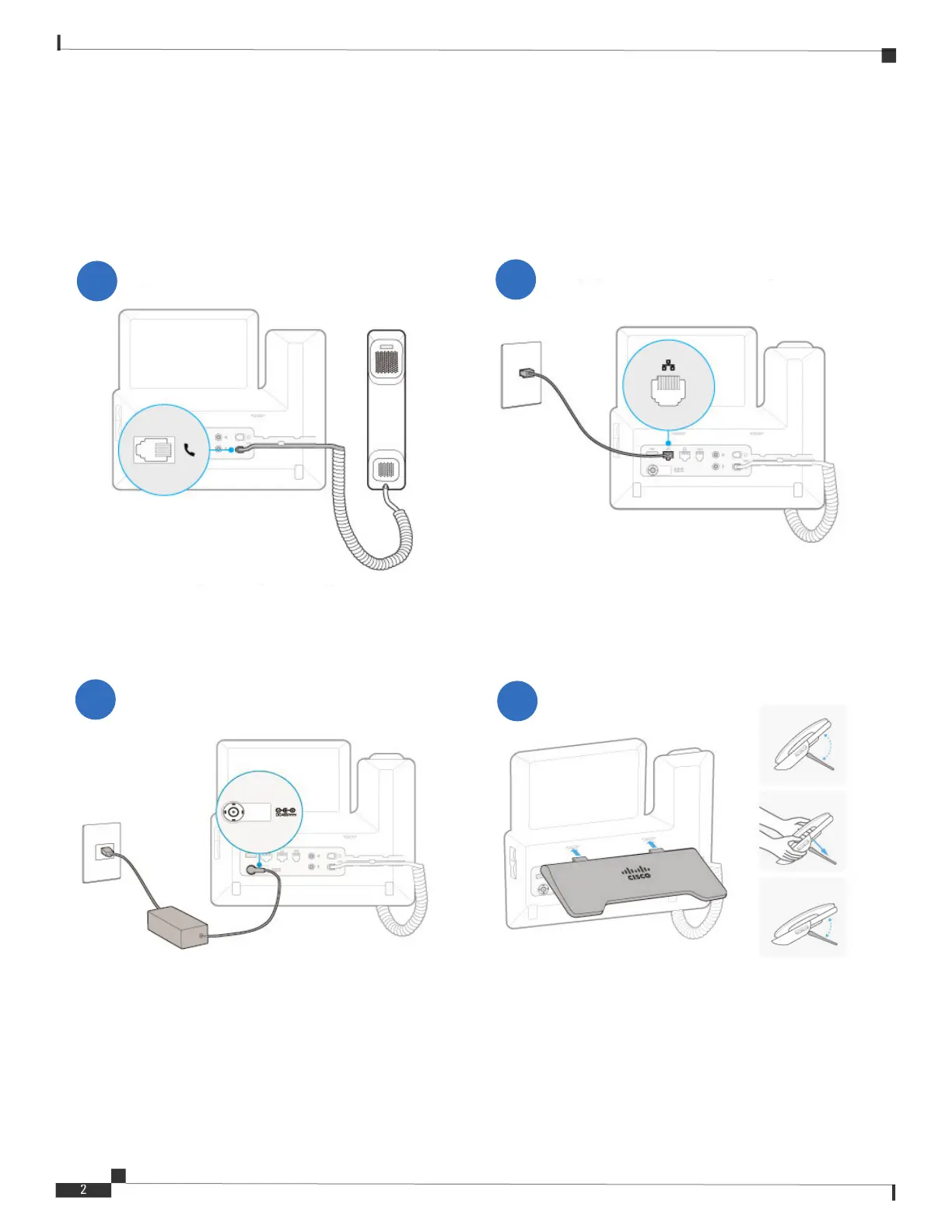

Connect and Power Up a Cisco IP Phone
The ports on the rear panel of the phone are dierent on Cisco IP Phone 6800, 7800, and 8800 Series.
A power adapter is mandatory for 6841 and 6861
phones.
To avoid permanent damage on the phone, use the
power adapter shipped with your phone.
For 8800 series phones, you can adjust the angle of the
foot stand.
Plug in the Ethernet cable if you don’t want to
use the phone in a wireless network.
2
1
3
4
Example: 8800 series phones

Cisco 8865 Specifications

General

Resolution	800 x 480 pixels
Audio	Wideband audio
Bluetooth	Yes
Wi-Fi	No
Speakerphone	Yes
Display	5-inch color LCD
USB Ports	2
Camera	720p HD camera
PoE	IEEE 802.3af/at
Protocols	SIP
Codecs	G.711, G.722, G.729, iLBC
Ethernet Ports	2 (10/100/1000)
Headset Connector	RJ-9, USB
Power Adapter	Optional
Weight	3.5 lbs
