3-2
Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 810 Series
Preventing Damage to the Router
To prevent damage to your router, follow these guidelines when connecting devices to your router:
• Turn off power to the devices and to the router until all connections are completed.
Caution Do not turn on the devices until after you have completed all connections to the router.
• If you must supply your own cable, see the “Cisco 860, 880, 890 Series” section on page A-11 for
cabling specifications. If this appendix does not provide specifications for a particular cable, we
strongly recommend ordering the cable from Cisco.
Connecting a PC, Server, or Workstation
To connect a PC (or other Ethernet devices) to an Ethernet switch port, follow these steps:
Step 1 Connect one end of the yellow Ethernet cable to an Ethernet switch port on the router. See Figure 3-1.

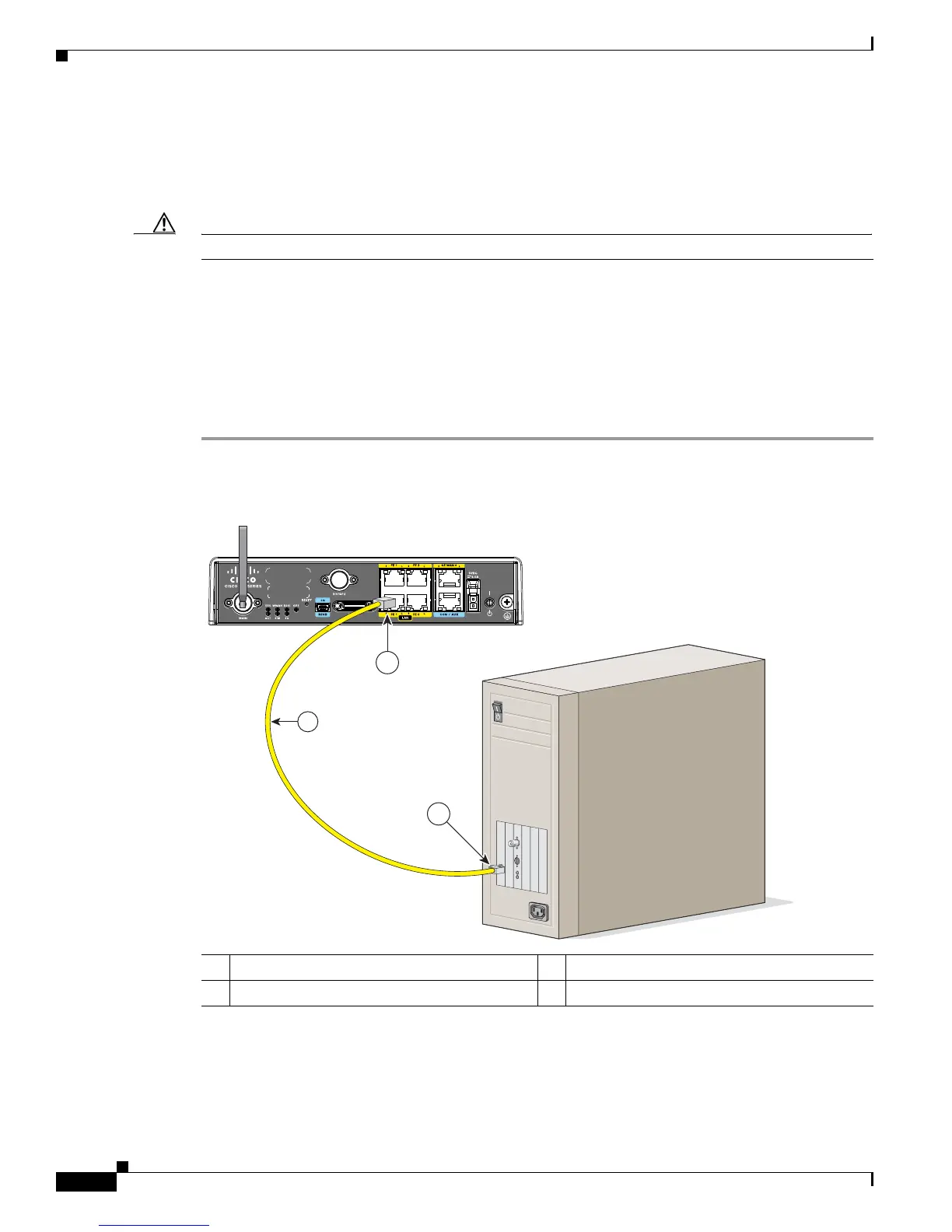

Figure 3-1 Connecting a Server, PC, or Workstation
Step 2
Connect the other end of the cable to the RJ-45 port on the network interface card (NIC) that is installed
in the PC, server, or workstation.
1 Yellow Ethernet cable 3 RJ-45 port on the network interface card
2 Ethernet switch port on the router
245583
3
2
1

Cisco 890 Series Specifications

General

Product Type	Router
Form Factor	Desktop
USB Ports	1 x USB 2.0
Firewall	Yes
VPN Support	Yes
RAM	256 MB
Wireless	802.11n
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Humidity	10 to 85% non-condensing
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol	TCP/IP
Routing Protocol	OSPF, BGP, RIP-1, RIP-2, EIGRP, HSRP, VRRP
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS, SSH
Features	VPN support, firewall protection, Quality of Service (QoS), VLAN support
Encryption Algorithm	AES, 3DES, DES
