Connecting a Phone
To connect an 802.3af-compliant phone to an Ethernet switch port, follow these steps:
Note A power source must be provided for the phone to function. This can be done in two ways: the phone
can be powered via the PoE function using the PoE enabled Ethernet ports, or by using an external AC
power source connected to the phone.
Step 1 Connect one end of the yellow Ethernet cable to Ethernet switch port 0 or port 1 on the router. Figure 3-8
shows a Cisco 888W router connected to a phone.

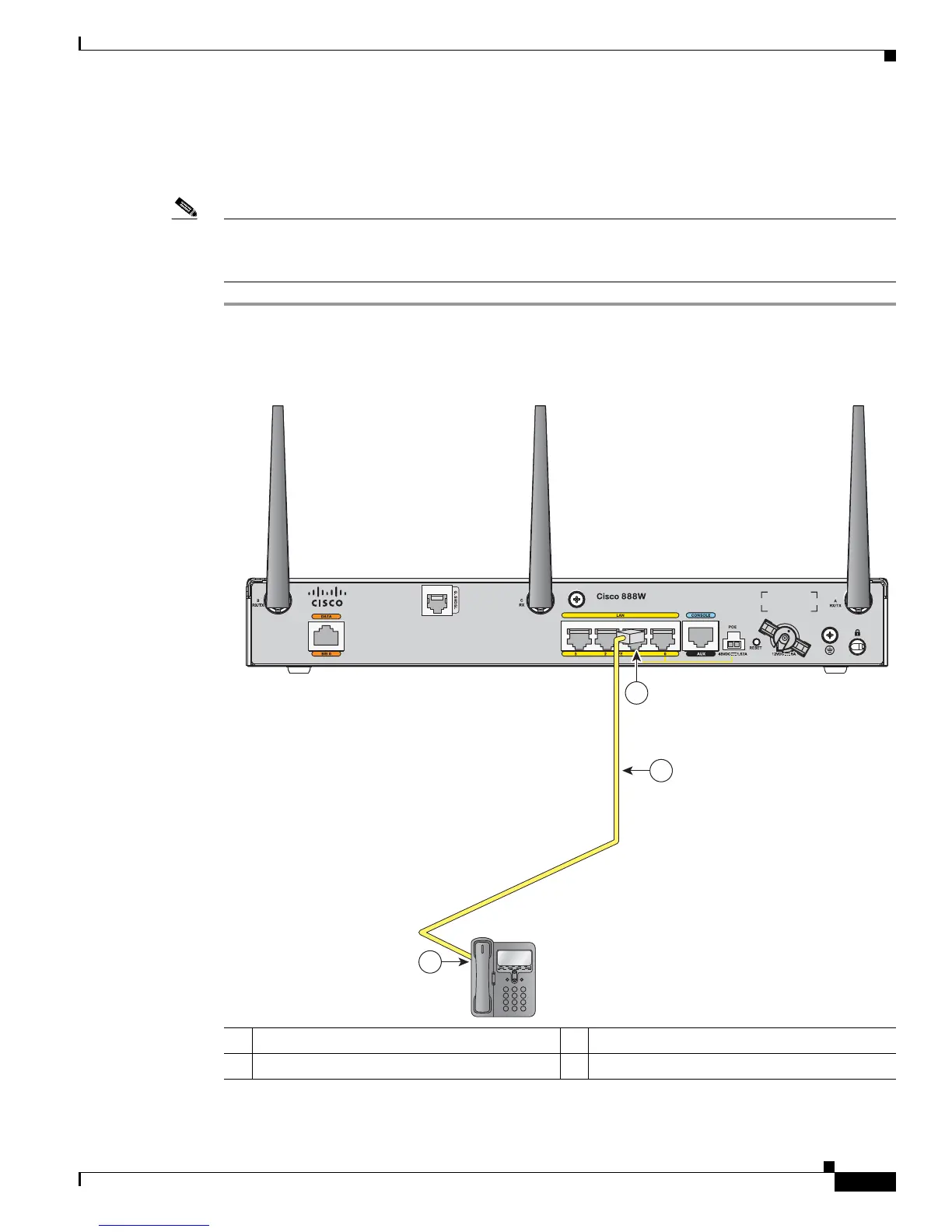

Figure 3-8 Connecting a Phone
1 Yellow Ethernet cable 3 RJ-45 port on a phone
2 Ethernet switch port 1 on the router
3
2
270551
1
12
ABC
3
DEF
45
JKLGHI
6
MNO
78
TUVPQRS
9
WXYZ
*
0
OPER
#

Cisco 890 Series Specifications

General

Product Type	Router
Form Factor	Desktop
USB Ports	1 x USB 2.0
Firewall	Yes
VPN Support	Yes
RAM	256 MB
Wireless	802.11n
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Humidity	10 to 85% non-condensing
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol	TCP/IP
Routing Protocol	OSPF, BGP, RIP-1, RIP-2, EIGRP, HSRP, VRRP
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS, SSH
Features	VPN support, firewall protection, Quality of Service (QoS), VLAN support
Encryption Algorithm	AES, 3DES, DES
