Cisco 890 Series

2-11
Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide
OL-16215-11
Chapter 2 Installing the Router
Installing the Router
Installing in a Rack
The Cisco 890 series ISRs can be mounted in a rack. To install a Cisco 890 series ISR in a rack, follow
these steps:

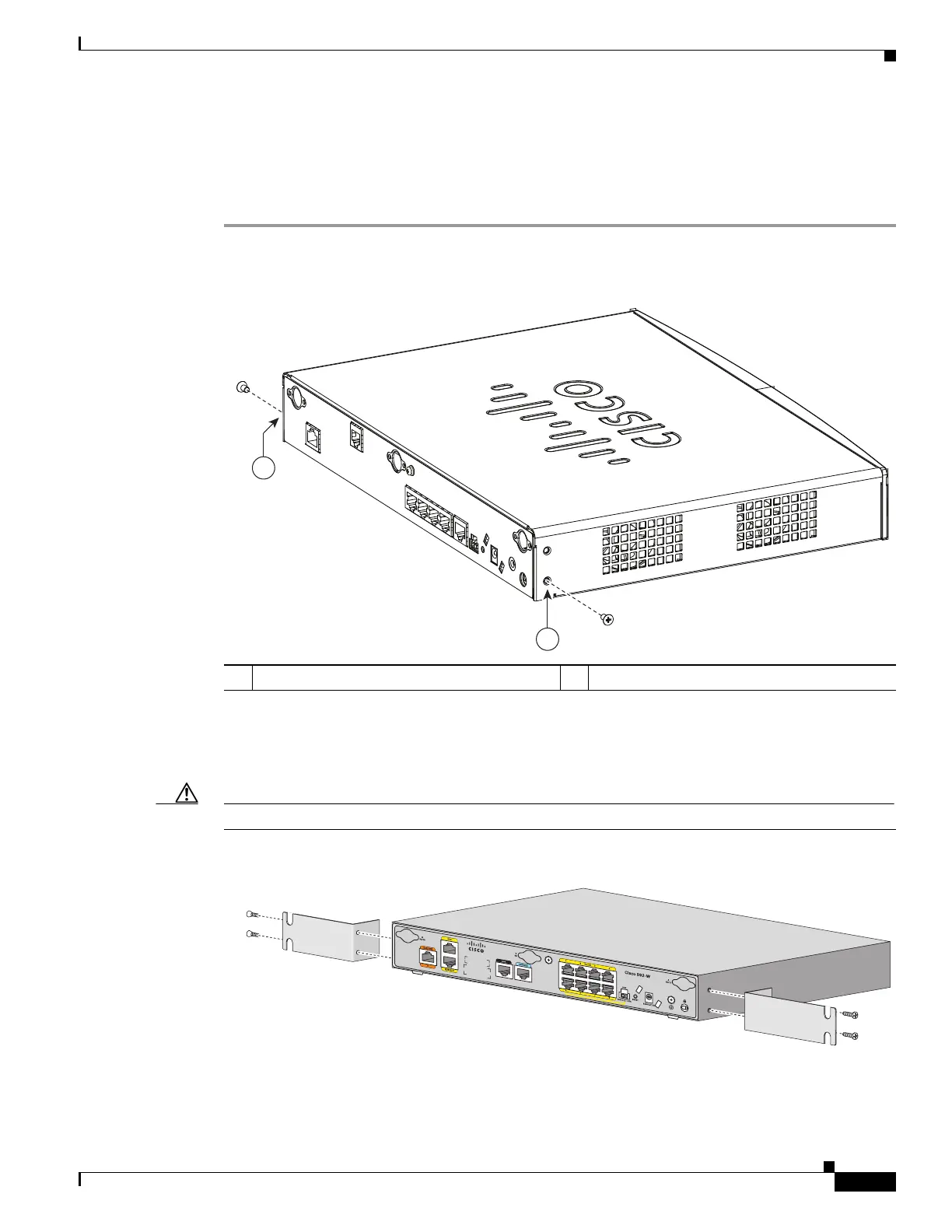

Step 1 Remove the screws, as shown in Figure 2-6.
Figure 2-6 Screw Locations
Step 2
Using the screws provided, attach the rack-mount brackets to the Cisco 890 series ISR chassis, as shown
in Figure 2-7. Use two screws on each side. Use a number 2 Phillips screwdriver to install the bracket
screws on both sides of the chassis.
Caution Do not over torque the screws. The recommended torque is 6 to 8 in-lb (0.7 to 0.9 N-m).
Figure 2-7 Attaching the Rack-mount Brackets to the Cisco 890 Series ISR
1 Screws
278159
1
1
272484
