Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

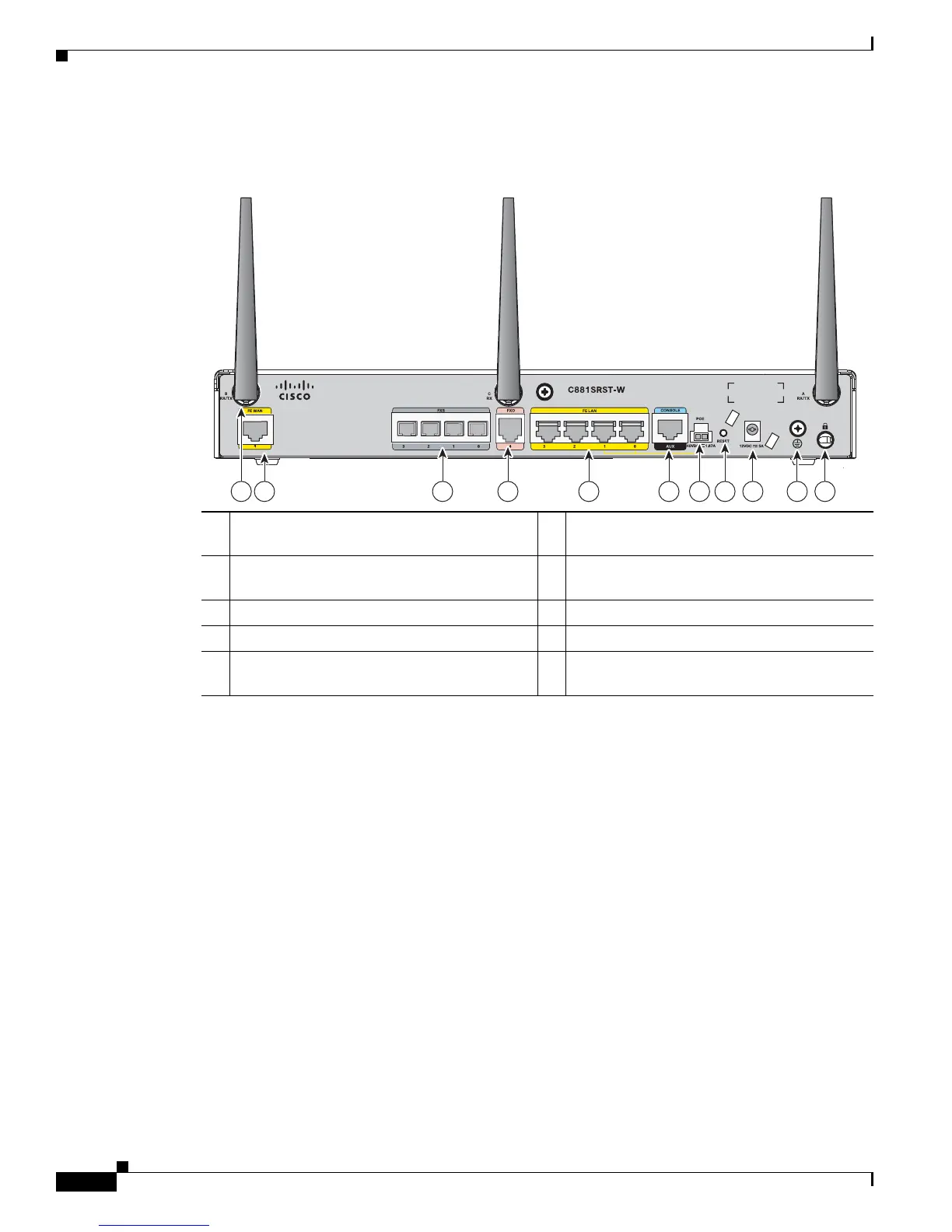

Figure 1-23 shows the back panel details of the Cisco 881SRST-W voice router.
Figure 1-23 Back Panel of the Cisco C881SRST-W Voice Router
1 Primary WAN port
1
—10/100 FE
1. Depending on the router model, the primary WAN port can be either G.SHDL or 10/100 FE.
6 Antenna—captive wireless omnidirectional
dipole WLAN antenna (wireless models only)
2 Voice ports—four FXS
2
/DID
3
ports, one
FXO
4
port with TBP
5
power failover
2. FXS = Foreign Exchange Station.
3. DID = Direct Inward Dialing.
4. FXO = Foreign Exchange Office.
5. TBP = trunk bypass.
7 Reset button
3 4-port 10/100 Ethernet switch
6
6. Ports 0 and 1 provide PoE with the optional PoE module installed.
8 Power connector
4 Serial port—console or auxiliary 9 Earth ground connection
5 PoE power connector for optional PoE
module
7
7. The Cisco 880 series ISRs can include an optional PoE module that provides power to 802.3af-compliant devices connected
to ethernet ports 0 and 1. If this feature was not configured with the factory order, you must order and install the Field
Replaceable Unit (FRU) to enable the PoE function. For this you either need the FRU “800-IL-PM=2” or “800G2-POE-2”.
If your device has a separate PoE inlet, use the 800-IL-PM=2, if it has one combined inlet (a description saying “POE
OPTION REQUIRES 5A POWER ADAPTOR”), then use the 800G2-POE-2.
10 Kensington security slot
241904
31 4 7 98 1022 56

Cisco 890 Series Specifications

General

Product Type	Router
Form Factor	Desktop
USB Ports	1 x USB 2.0
Firewall	Yes
VPN Support	Yes
RAM	256 MB
Wireless	802.11n
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Humidity	10 to 85% non-condensing
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol	TCP/IP
Routing Protocol	OSPF, BGP, RIP-1, RIP-2, EIGRP, HSRP, VRRP
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS, SSH
Features	VPN support, firewall protection, Quality of Service (QoS), VLAN support
Encryption Algorithm	AES, 3DES, DES
