Installing the 3G Adapter for Extended Cable/Antenna
Step 5 Connect the extension cable to the 3G card, as described in the “Connecting the 3G Card” section on
page 3-11. The complete assembly is shown in Figure 3-18.

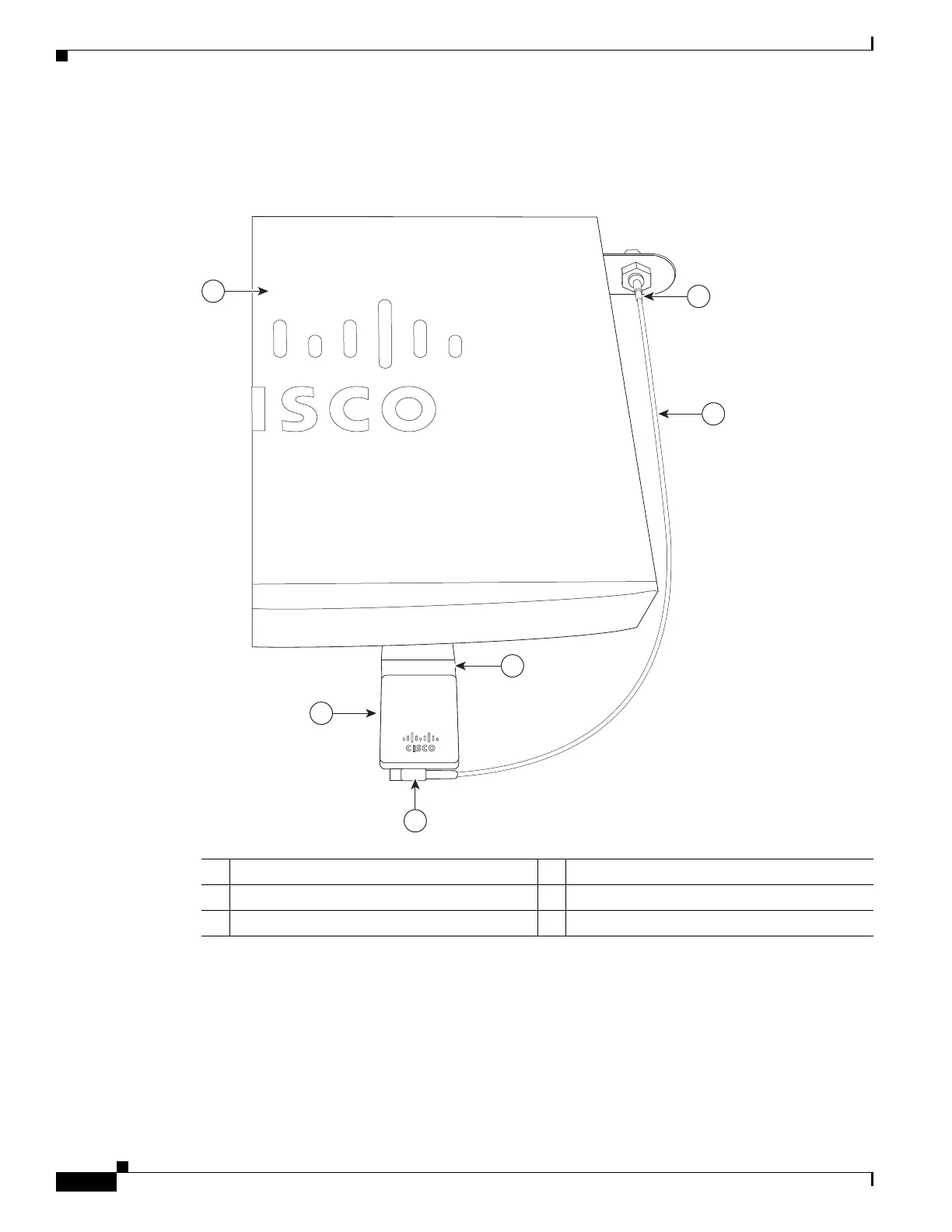

Figure 3-18 Adapter Connected to 3G Card and Router Chassis
Now the adapter is ready for use with the extension cable. Table 3-2 lists the loss information for the
ultra-low-loss (ULL) LMR 400 cables available with the adpater for the 3G fixed platforms.
1 Router chassis 4 SSMB or SMK-TS-9 connector
2 3G adapter for extended cable/antenna 5 3G card inserted into the router
3 Cable 6 3G card
279089
3
2
1
6
5
4
