Chapter 3 Connecting the Router
Connecting the 3G Card
Step 3 Slide the opened locking bracket under the 3G card. The locking bracket should align with the notches
on either side of the 3G card, as shown in Figure 3-9, and the pins on the locking bracket should be
inserted into the corresponding holes in the router.

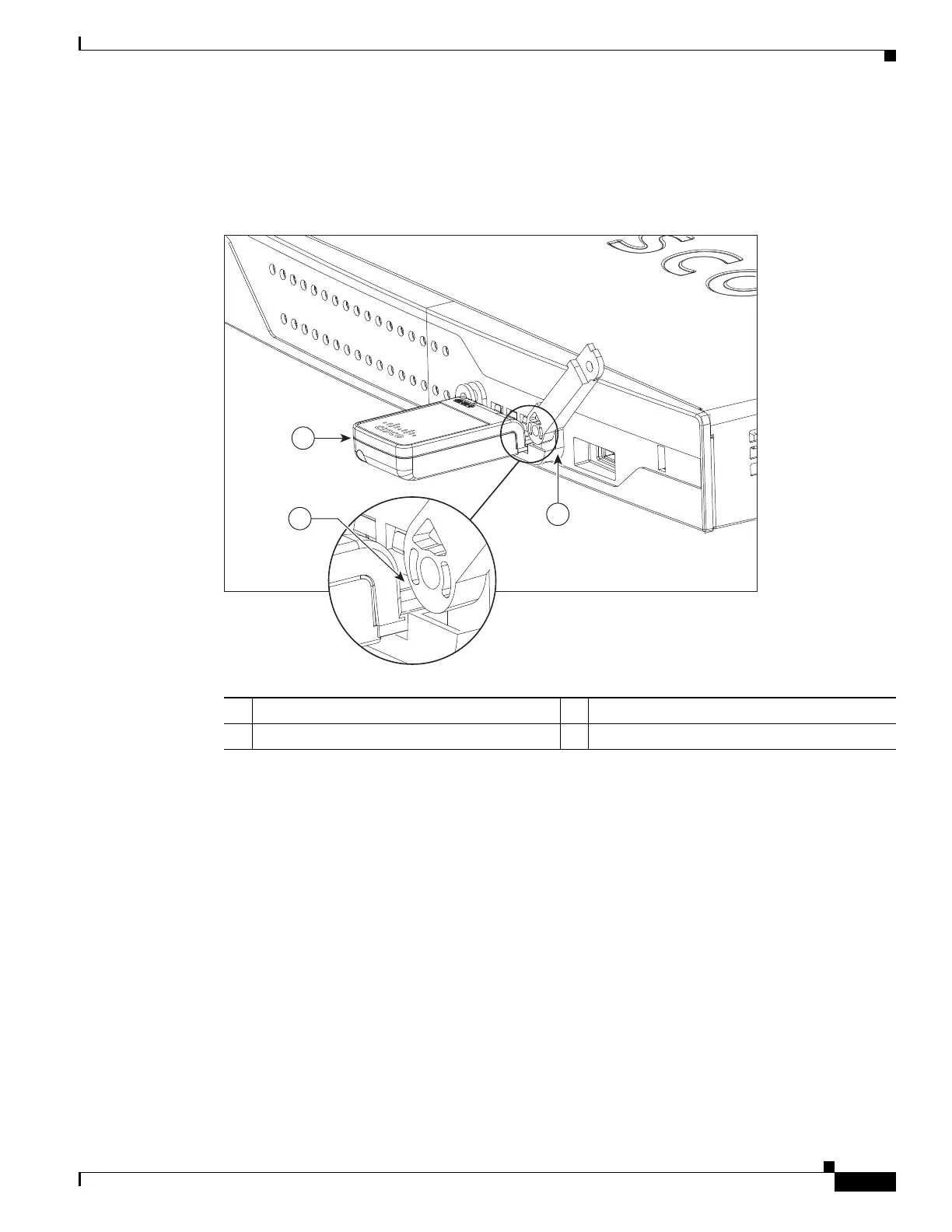

Figure 3-9 Installing the Locking Bracket
1 3G card 3 Notch on the 3G card
2 Locking bracket
1
2
3
271726
