Cisco 890 Series User Manual

3-26
Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series

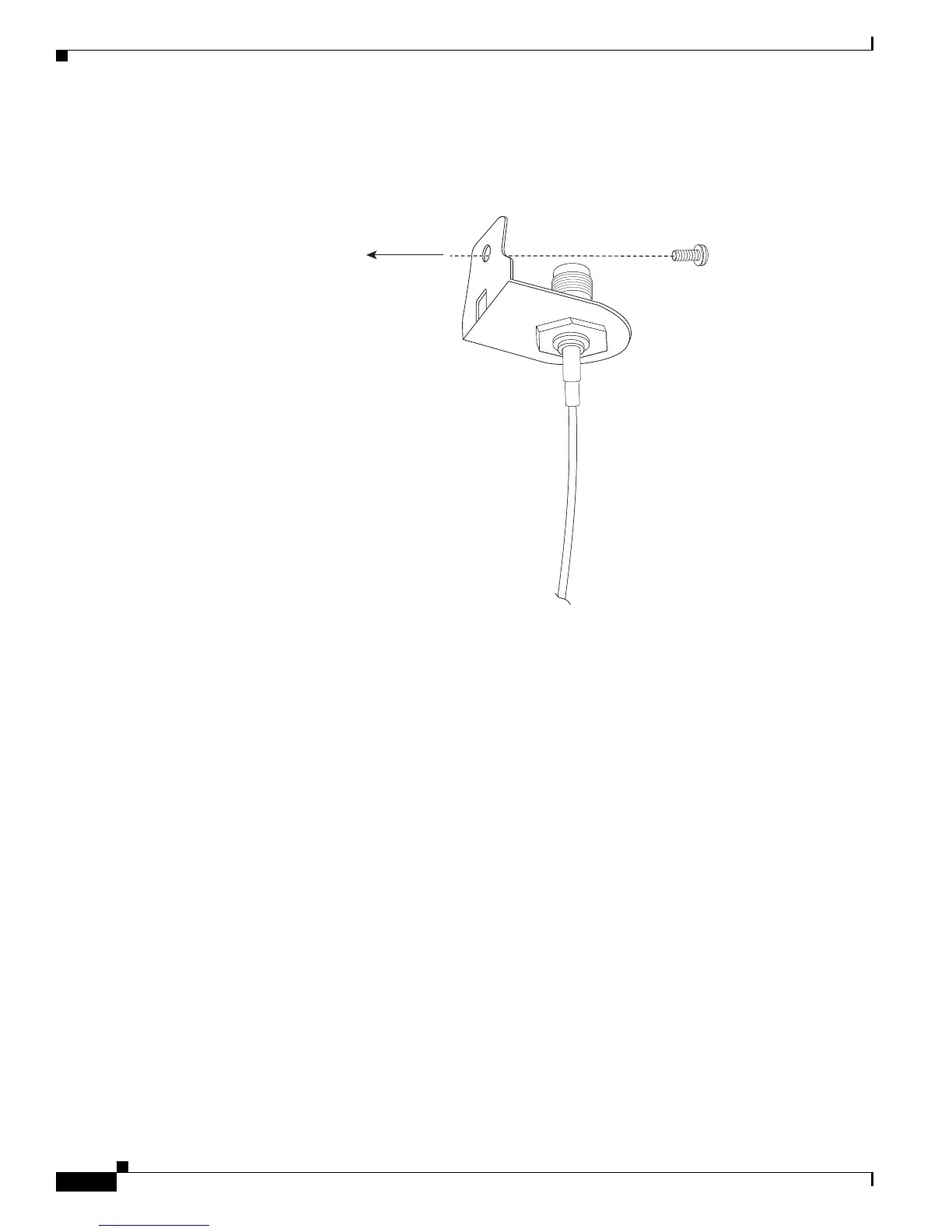

Step 4 Align the circular adapter hole with the hole on the router chassis from where you removed the screw in
Step 1 and use the screw to attach the adapter to the router as shown in Figure 3-23.
Figure 3-23 Attaching the Adapter
279091

Cisco 890 Series Specifications

General

Product Type	Router
Form Factor	Desktop
USB Ports	1 x USB 2.0
Firewall	Yes
VPN Support	Yes
RAM	256 MB
Wireless	802.11n
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Humidity	10 to 85% non-condensing
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol	TCP/IP
Routing Protocol	OSPF, BGP, RIP-1, RIP-2, EIGRP, HSRP, VRRP
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS, SSH
Features	VPN support, firewall protection, Quality of Service (QoS), VLAN support
Encryption Algorithm	AES, 3DES, DES
