Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series

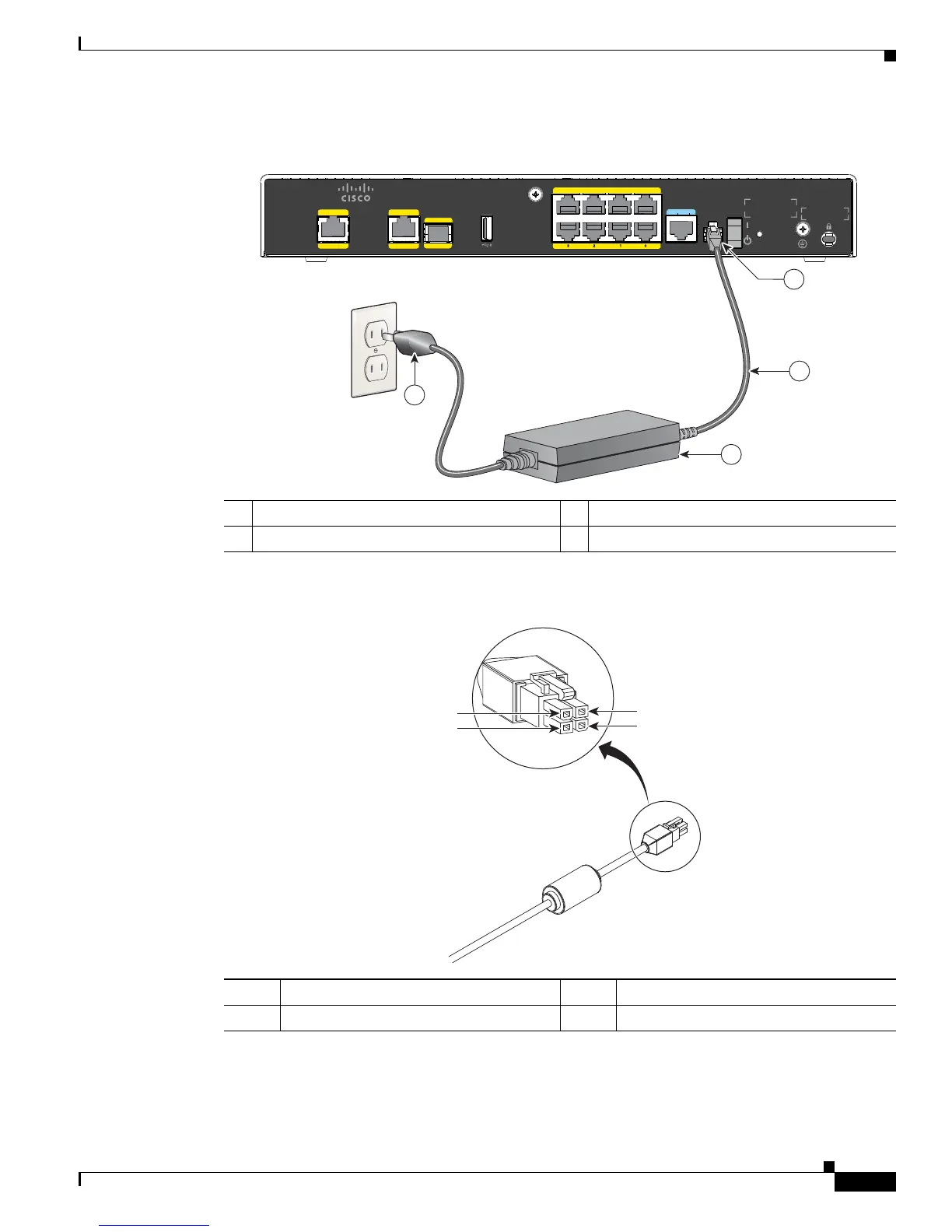

Figure 3-32 Connecting the AC Adapter for the Cisco 892FSP
Figure 3-33 Cisco 892FSP, 896VA, 897VA, and 898EA Power Adapter Connector Pin Assignment
7 6 GE LAN 5 4
9
GE WAN
8
GE WAN
SFP
8
12VD C 2.5A
CONSOLE
AUX
RESET
Cisco 892FSP
343746
1
2
4
3
1 12-VDC plug 3 Power adapter—12 VDC
2 Power Adapter Cord 4 AC Plug
284800
Pin 3
Pin 1
Pin 4
Pin 2
Pin 1 Ground Pin 3 +12 V
Pin 2 NC
1
Pin 4 NC
1. NC = No Connection.

Cisco 890 Series Specifications

General

Product Type	Router
Form Factor	Desktop
USB Ports	1 x USB 2.0
Firewall	Yes
VPN Support	Yes
RAM	256 MB
Wireless	802.11n
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Humidity	10 to 85% non-condensing
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol	TCP/IP
Routing Protocol	OSPF, BGP, RIP-1, RIP-2, EIGRP, HSRP, VRRP
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS, SSH
Features	VPN support, firewall protection, Quality of Service (QoS), VLAN support
Encryption Algorithm	AES, 3DES, DES
