Chapter 2 Installing the Access Point
Installation Guidelines

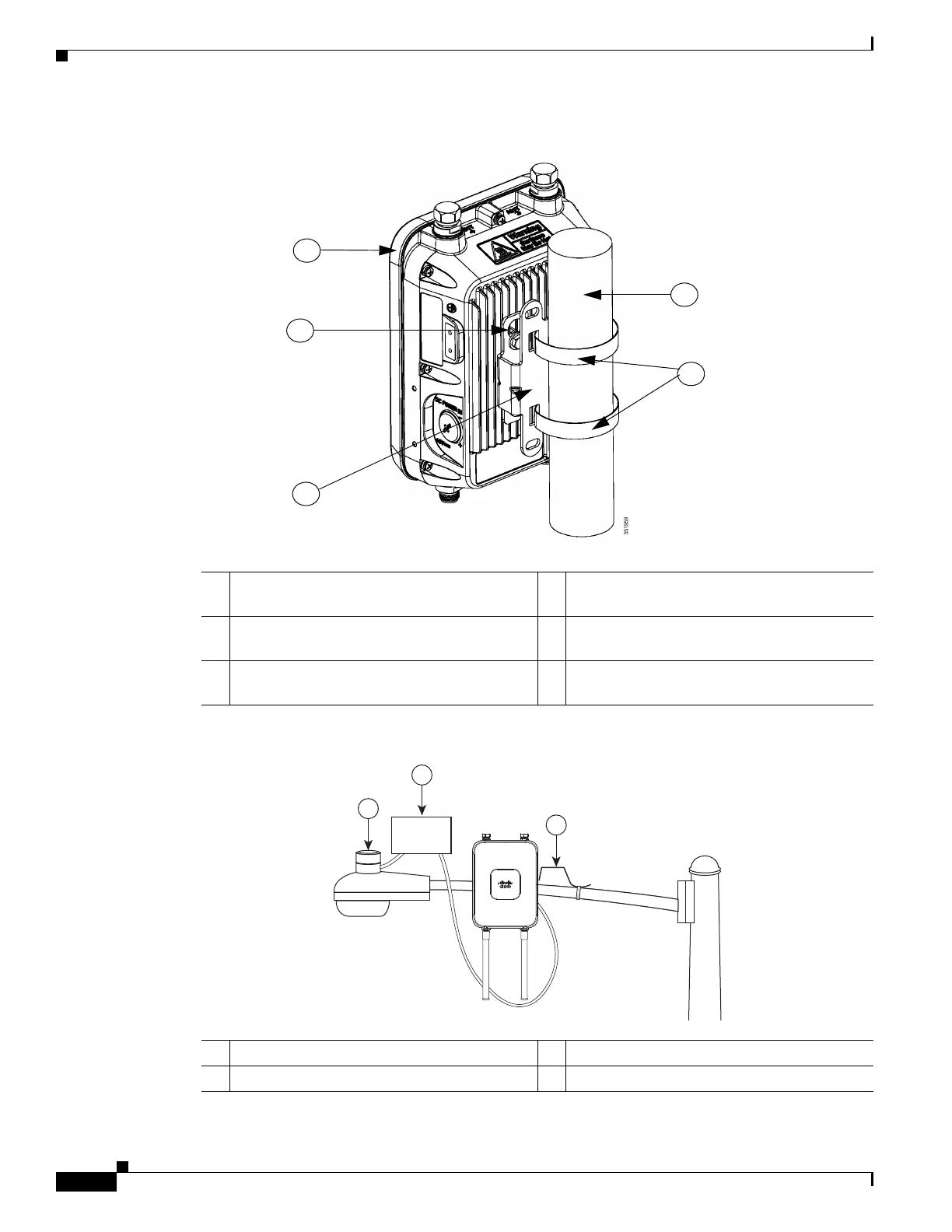

Figure 2-2 Standard Pole Mount Installation
Figure 2-3 Streetlight Power Tap Adapter Installation
1 1532 series access point model
AIR-CAP1532E-x-K9
3 Mounting bracket (part of pole mount kit)
2 One of four M6 AP mount hole and key hole
slots
4 Stainless steel mounting straps (part of pole
mount kit)
5 Pole (wood, metal, or fiberglass)
2 in. to 8 in. (50 mm to 203 mm) diameter
5
4
1
2
3
1 Outdoor light control 3 6-AWG copper grounding wire
2 AC/DC power adapter
962
1
2
3
AC/DC
Adapter
