Cisco ASR 1000 Series Replacing

insert callout table
1 - Pull spring clips outward.
2 - Pull DIMM out.
Step 4 Pull the latches away from the DIMM on both edges. This lifts the DIMM slightly. Gently lift the DIMM free from the
DIMM connector, taking care not to touch the pins that insert into the socket.
Step 5 Place the DIMM in an antistatic bag to protect the DIMM from ESD damage.
Forcing the DIMM into the socket can damage the DIMM. Use the notches on the DIMM to align the DIMM
in the DIMM socket before inserting it (see the following figure).
Caution

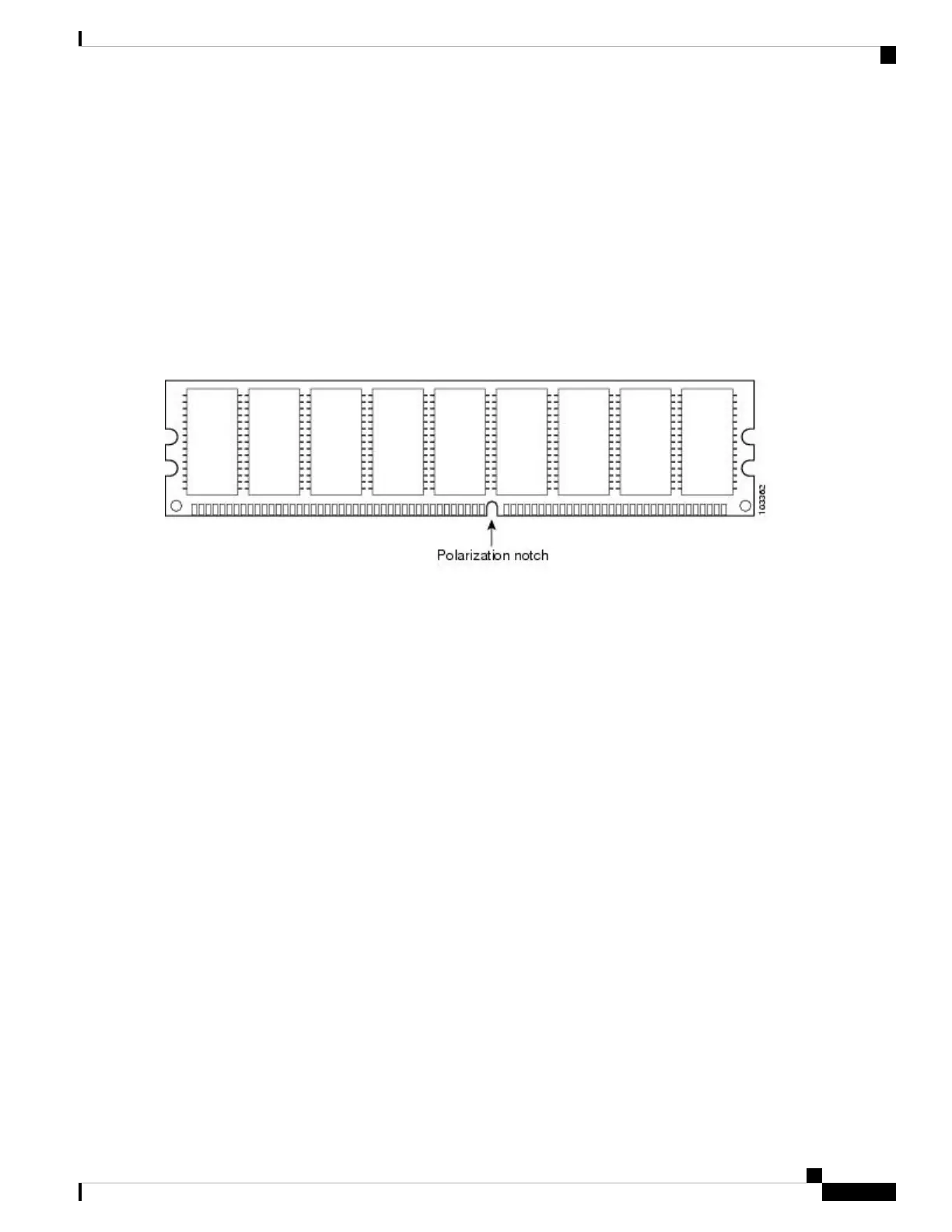

Figure 13: Cisco ASR 1000 Series RP DIMM Module Notch Location
Step 6 To install the DIMM memory card, locate the notches and align the DIMM with the socket before inserting it.
The following figure shows the Cisco ASR 1000 Series RP DIMM module alignment.
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
23
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR1000-RP1 DIMM Memory Modules

Cisco ASR 1000 Series Specifications

General

Series	ASR 1000
Category	Network Router
Operating System	Cisco IOS XE
Memory	Up to 64 GB
Interfaces	10 Gigabit Ethernet
Power Supply	AC or DC options
Dimensions	Varies by model
Encryption	IPsec, SSL
Storage	Varies by model
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	5% to 95% non-condensing
MTBF	Varies by model
