To connect +24V DC power supply in the Cisco ASR 1002-X Router, follow these steps:
Step 1 At the rear of the router, check that the power Standby switch is in the Standby position.
Step 2 Ensure that the positive and negative leads are disconnected from the site power source and the source circuit breaker
is turned off.
Step 3 Using a wire stripper, strip the recommended amount of wire insulation which is 15mm (0.6 inch) from the ground,
negative, and positive leads.
Note The stripping length is common to all types of wire used.

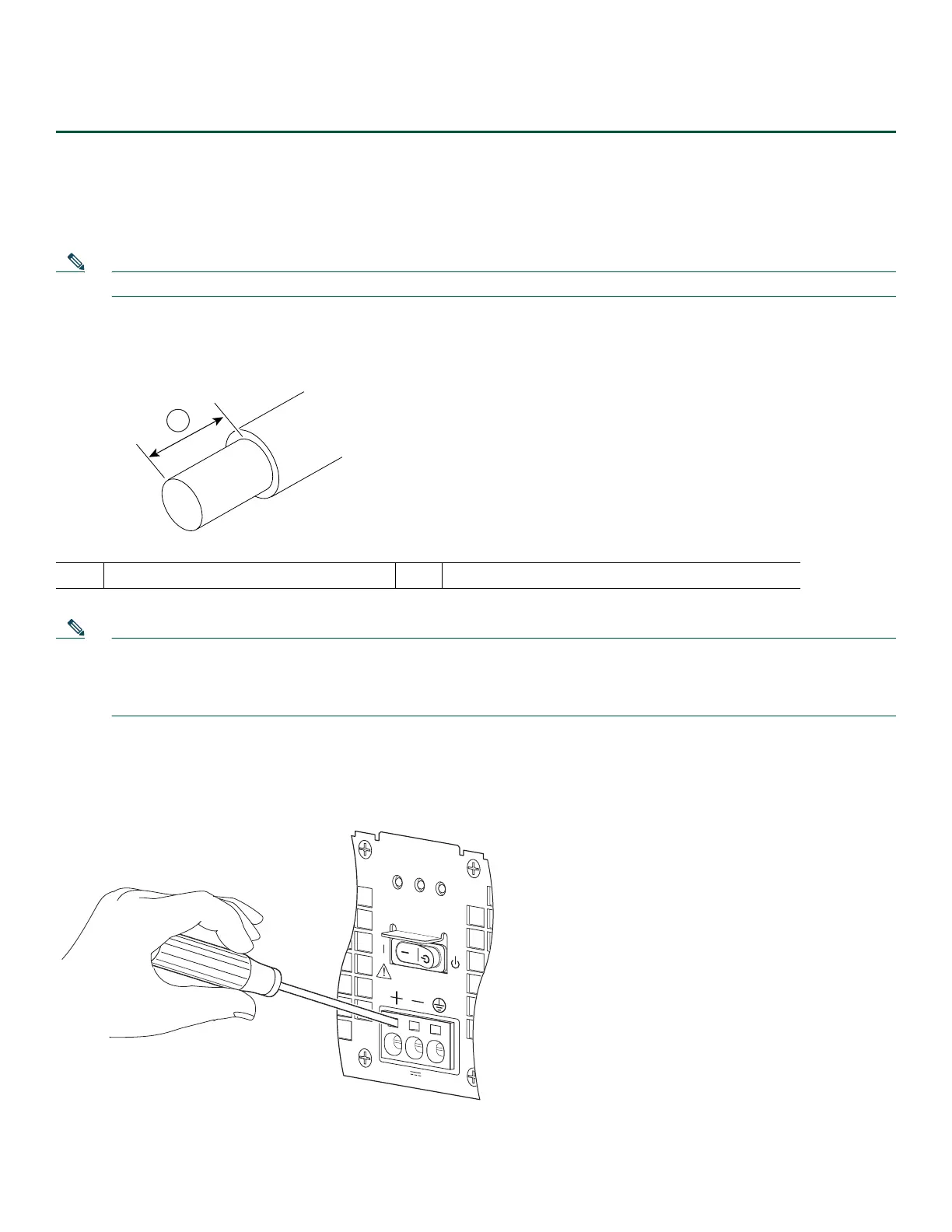

Figure 17 shows the wire lead and insulation area.
Figure 17 Cisco ASR 1002-X Router +24V DC Power Supply Wire and Insulation
Note Make sure the stripped end of each lead wire is twisted tightly together. This makes insertion easier. Then make certain
the entire lead wire is inserted all the way into its receptacle. If any exposed wire at the stripped end of a lead is visible
after inserting the lead into its receptacle, remove the lead from the receptacle, use the wire stripper to cut the stripped
end of the lead, and then reinsert.
Step 4 Using a 3.5mm screwdriver, insert the screwdriver at an angle to release the spring while you install the stripped lead
wire (see Figure 18).
Figure 18 Inserting a Screwdriver into the Cisco ASR 1002-X Router +24V DC Power Supply Terminal Block
Step 5 Carefully push the screwdriver at an angle forward until you relieve the spring contact.
1 +24V DC wire with insulation
253166
OUTPUT INPUT
FAIL
OK OK
FAN
This unit might have more than
one power supply connection.
All connections must be removed
to de-energize the unit.
+27V DC INPUT
+27V 32A
