Cisco ASR 1001-HX Removing And Replacing

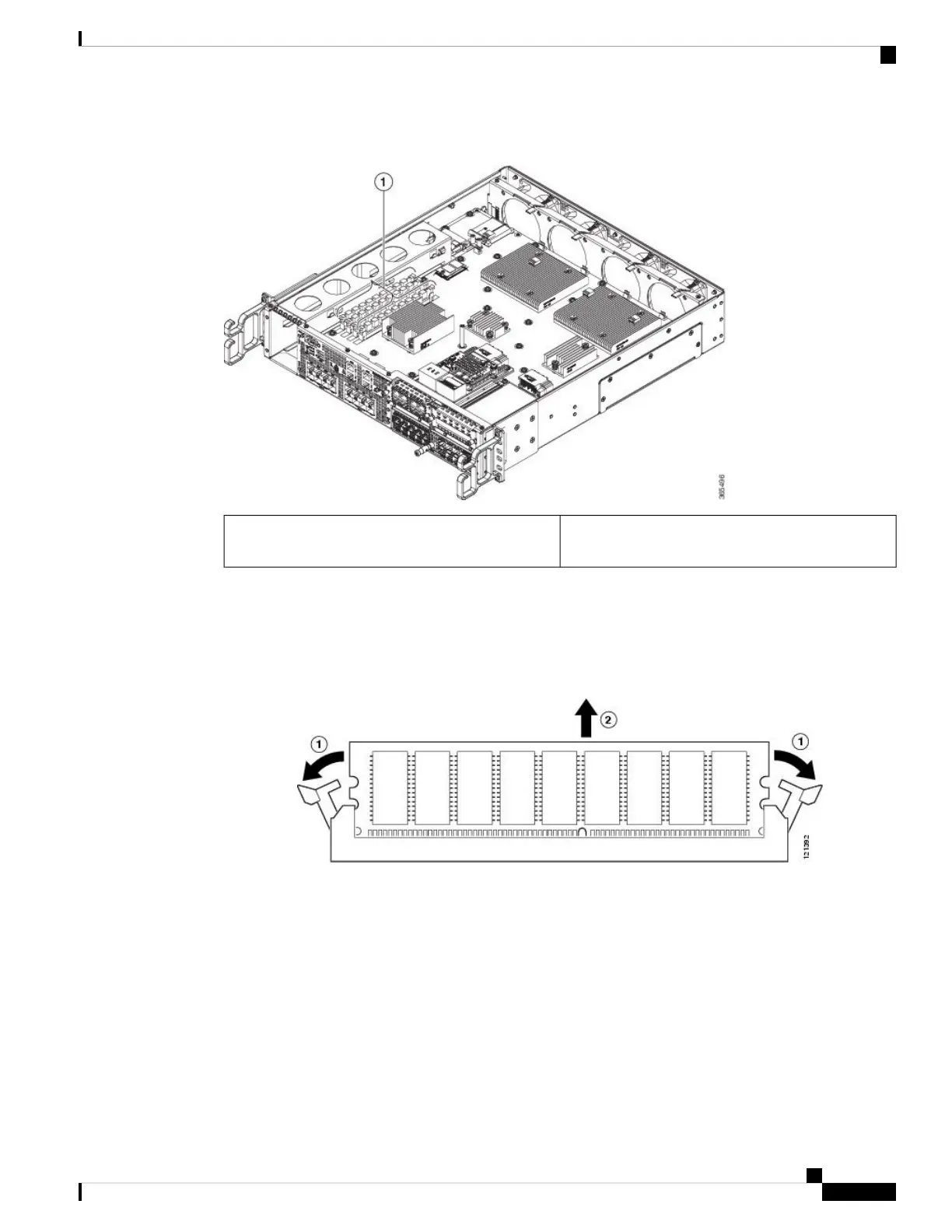

Figure 13: Cisco ASR 1002-HX Router DIMM Location
Cisco ASR 1002-HX Router DIMM location (four
slots)
1
Step 5 Note
If you are upgrading the DIMM configuration from 16 GB to 32 GB using M-ASR1002HX-32GB,
perform the next step on the DIMM in Channel A, Slot 1.
Pull down the DIMM module spring latches to release the corresponding DIMM from the socket.
Figure 14: DIMM Module Spring Latches to Remove the DIMMs
Step 6 When both ends of the DIMM are released from the socket, grasp each end of the DIMM with your thumb
and forefinger and pull the DIMM completely out of the socket. Handle only the edges of the DIMM; avoid
touching the memory module, pins, and the metal traces (the metal fingers along the connector edge of the
DIMM) along the socket edge.
Step 7 If you are upgrading the DIMM configuration from 16 GB to 32 GB using M-ASR1002HX-32GB, proceed
to the "Replacing a DIMM in a Cisco ASR 1002-HX Router, on page 16" section. Otherwise, place the DIMM
in an antistatic bag to protect it from ESD damage.
Removing and Replacing FRUs
15
Removing and Replacing FRUs
Removing a DIMM from a Cisco ASR 1002-HX Router
