If you are removing the DIMMs without upgrading the system memory, repeat Steps 5 and 6 on the remaining
DIMM.
Replacing a DIMM in a Cisco ASR 1002-HX Router
Procedure
Step 1 Place the DIMM on an antistatic mat or pad while wearing an antistatic device, such as a wrist strap.
DIMMs are sensitive components that can be shorted by mishandling; they are susceptible to ESD
damage. Handle the DIMM by the edges only, and avoid touching the pins.
Caution
Step 2 Note
If you are upgrading the DIMM configuration from 16 GB to 32 GB using M-ASR1002HX-32GB,
you must move the DIMM from Channel A, Slot 1, to Channel B, Slot 2. See the "Removing and
Replacing the Crypto Module in a Cisco ASR 1001-HX Router" or "Removing and Replacing the
Crypto Module in a Cisco ASR 1002-HX Router"section for removal instructions, then proceed to
Step 3.
Remove the new DIMM from the antistatic bag.
Step 3 Locate the polarization notch and align the DIMM with the socket before inserting it.

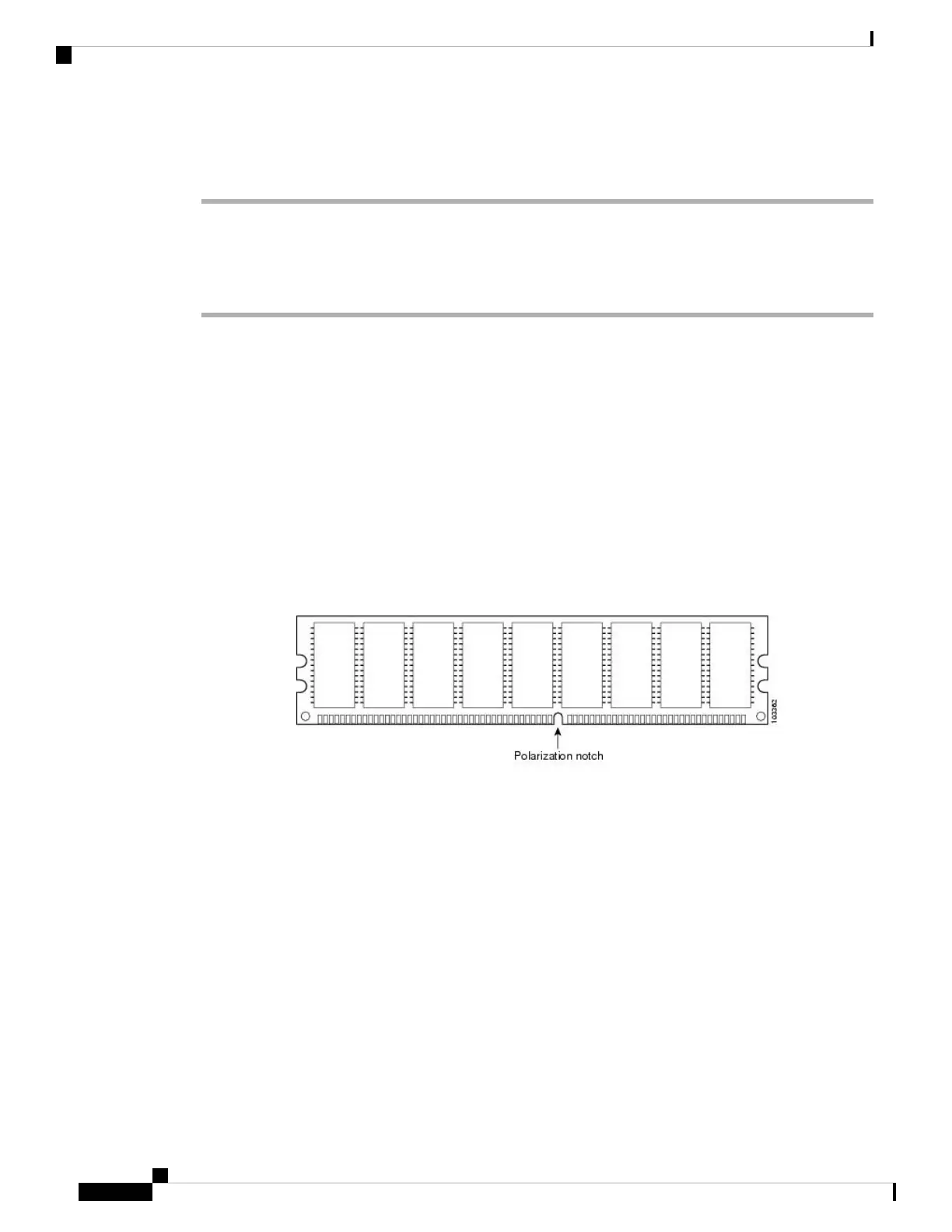

Figure 15: DIMM Polarization Notch
Step 4 Gently insert the new DIMM, taking care not to damage the pins on the edge of the DIMM. Using two hands,
hold both sides of DIMM’s top edges with your index fingers and thumbs and gently slide the DIMM straight
in to the socket. Press the top of the DIMM towards the socket, being careful to apply force only on the DIMM
that is parallel with the plane of the DIMM.
When inserting DIMMs, use firm but not excessive pressure. If you damage a socket, you will have
to return the router to the factory for repair.
Caution
Step 5 Use light insertion force and insert smoothly, but ensure that the DIMM is inserted straight. If necessary, rock
the DIMM gently back and forth to seat it properly. The following figure shows how to install the DIMM in
the socket for the Cisco ASR 1002-HX Router.
Removing and Replacing FRUs
16
Removing and Replacing FRUs
Replacing a DIMM in a Cisco ASR 1002-HX Router
