Cisco ASR 1002 Replacing

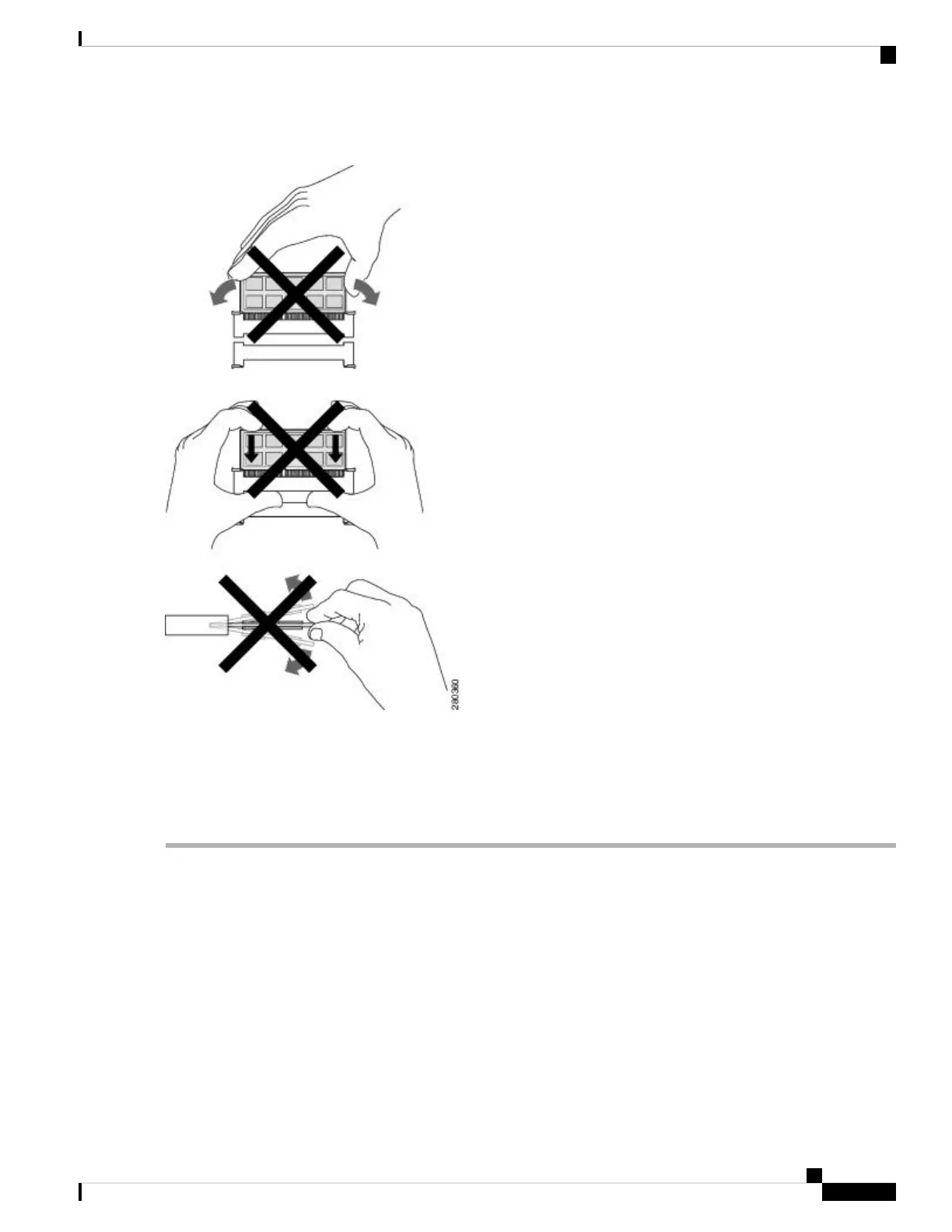

Figure 15: Handling Cisco ASR 1000 Series RP DIMM Module
Step 10 Slide the DIMM one side at a time. Use light insertion force and insert smoothly; but make certain the DIMM is inserted
straight .
Make sure you perform steps 3 thru 11 for both DIMMs on the RP 1 before you replace the Cisco
ASR1000-RP1 in the system. Replace the Cisco ASR1000-RP1. All DIMMS must be replaced; not just one.
Note
What to do next
This completes the procedure for replacing a DIMM memory module on the Cisco ASR1000-RP1.
Removing and Replacing the Cisco ASR1000-RP2 DIMM Memory Modules
Perform the following steps before you begin:
• Use an ESD-preventive wrist strap.
• Back up data that you want to save before replacing a eUSB device.
• Note that the component is keyed and slotted for easier connection.
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
25
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR1000-RP2 DIMM Memory Modules

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
