Cisco ASR 1002 Replacing

• To ensure the DIMMs are functioning properly, all four DIMMs must be replaced at the same time and
must be of the same manufacturer and part number (since vendors may have multiple versions of the
DIMM).
The following table shows the slots that are supported for inserting memory DIMMs in Cisco ASR1000-RP2
Table 3: Cisco ASR1000-RP2 Supported Slots for Inserting Memory DIMMs
Slot 3Slot 2Slot 1Slot 0Memory PID Option
2 GB module2 GB module2 GB module2 GB moduleM-ASR1K-RP2-8GB=
4 GB Module4 GB Module4 GB Module4 GB ModuleM-ASR1K-RP2-16GB=
This section describes how to remove and then replace the Cisco ASR1000-RP2 module DIMMs (see the
following figure).

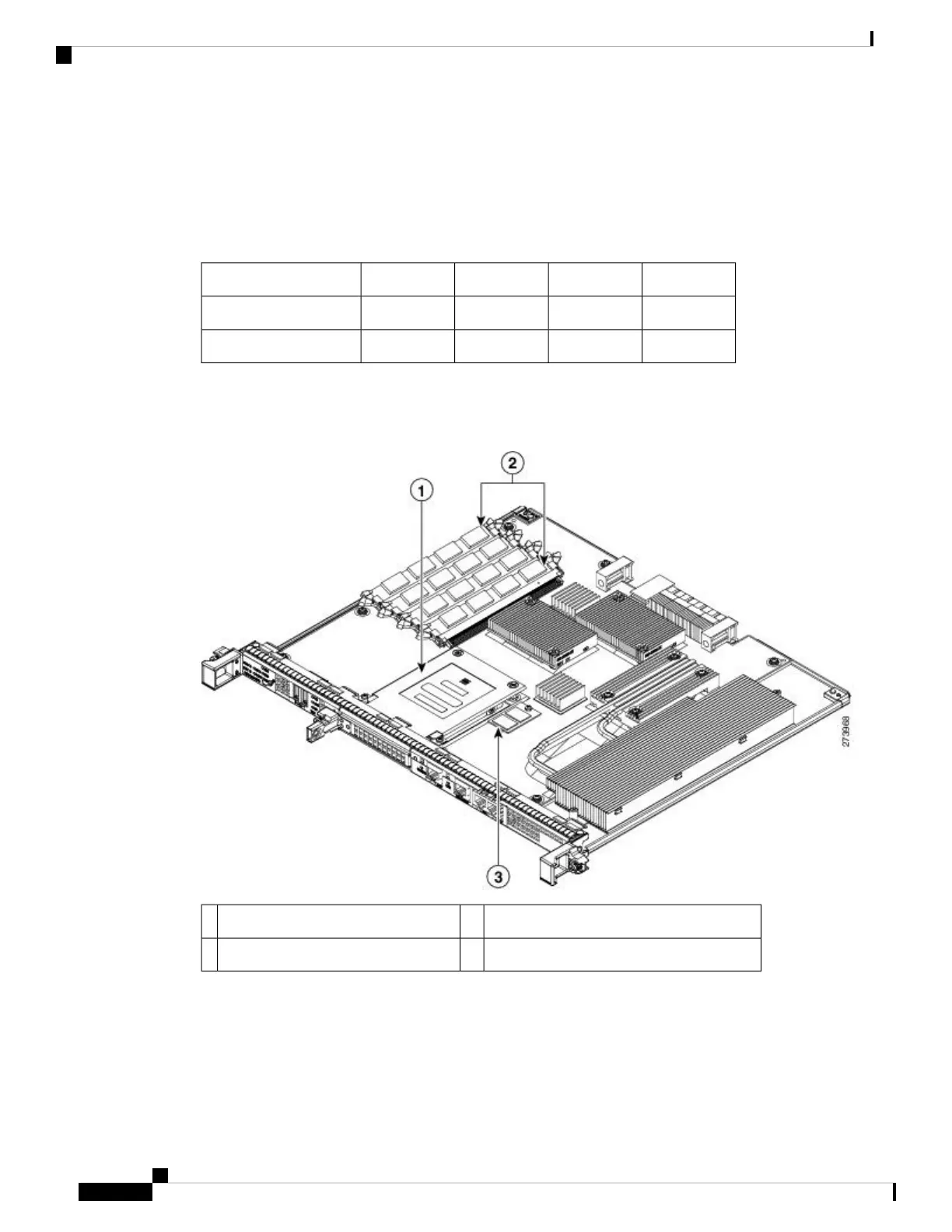

Figure 16: Cisco ASR1000-RP2 Module Internal Component Location
Cisco ASR1000-RP2 internal eUSB device3Internal hard drive location1
——Cisco ASR1000-RP2 DIMM location2
Removing the Cisco ASR1000-RP2 DIMMs
Follow these steps to remove the Cisco ASR1000-RP2 DIMMs:
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
26
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing the Cisco ASR1000-RP2 DIMMs

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
