Table 5: Cisco ASR1002-X Router Supported Slots for Inserting Memory DIMMs
Slot 3 (U1D1)Slot 2 (U1D0)Slot 1 (U2D1)Slot 0 (U2D0)Memory PID Option
—2 GB module—2 GB moduleM-ASR1002X-4GB
2 GB Module2 GB Module2 GB Module2 GB ModuleM-ASR1002X-8GB
4 GB Module4 GB Module4 GB Module4 GB ModuleM-ASR1002X-16GB
To ensure vendor and MPN compatibility during memory upgrades, remove the installed DIMMs and replace
them with the DIMMs provided in the upgrade kit.
Note
This section describes how to remove and then replace the Cisco ASR 1002-X Router DIMMs (see xref Figure
14-16).

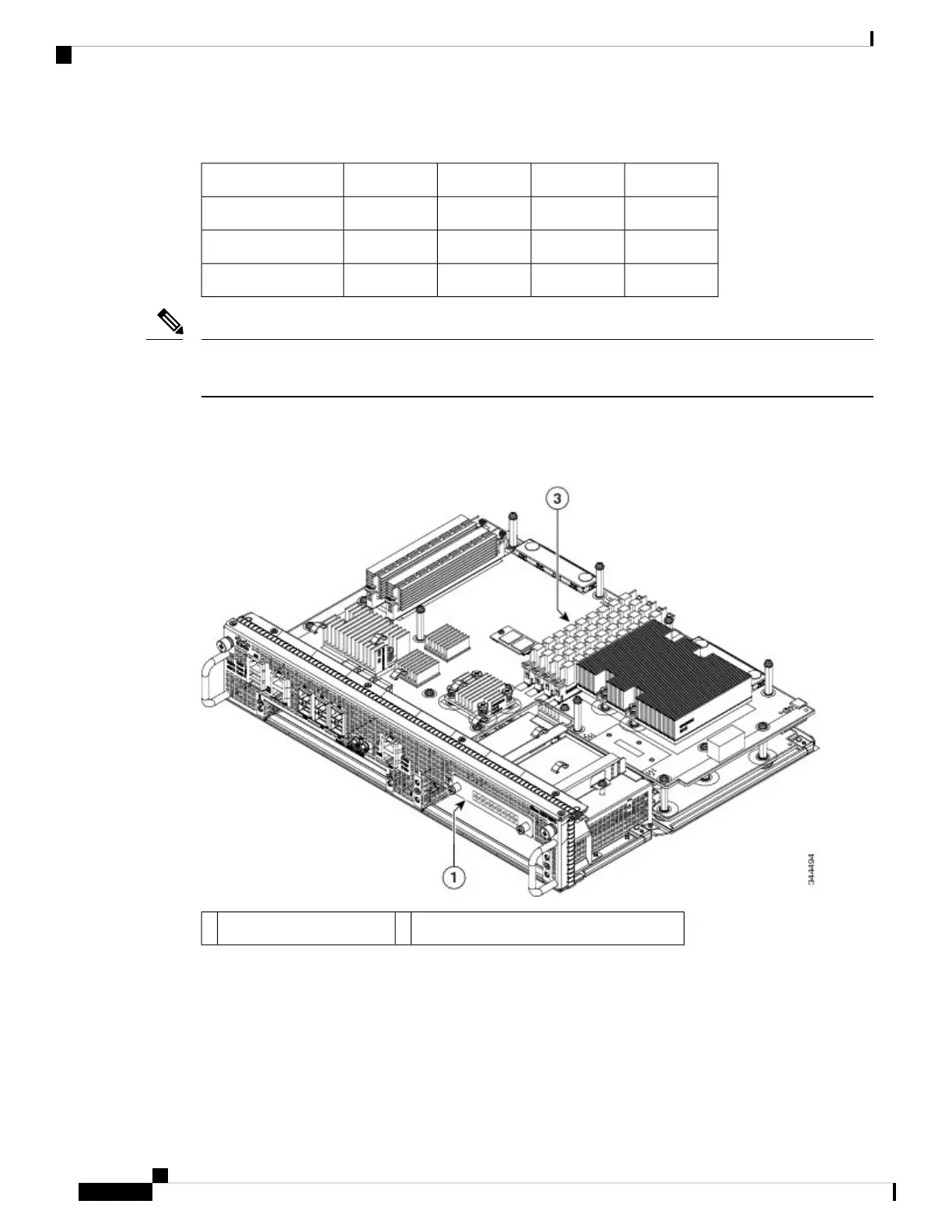

Figure 25: Cisco ASR1002-X Router Module Internal Component Location
Cisco ASR1002-X Router DIMM location3Internal hard drive location1
Removing the Cisco ASR1002-X Router DIMMs
Follow these steps to remove the Cisco ASR1002-X Router DIMMs:
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
36
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing the Cisco ASR1002-X Router DIMMs

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
