Cisco ASR 1002 Replacing

Figure 4: Cisco ASR1000-RP1 Module Internal Hard Drive and Module Base
This completes the procedure for disconnecting the Cisco ASR 1000 Series RP internal hard drive.
Replacing the Cisco ASR1000-RP1 Internal Hard Drive
To replace the Cisco ASR1000-RP1 internal hard drive and insert the Cisco ASR 1000 Series Route Processor
1 into the Cisco ASR 1000 Series Router, follow these steps:
SUMMARY STEPS
1. On the Cisco ASR1000-RP1, carefully align the new hard drive unit with its screw fastener to the base
screw on the bottom of the module.
2. Reconnect the two cables to the rear of the hard drive. These are keyed for easy connection.
3. Align hard drive module to carrier base tabs, align the module fastener to base screw mate by hand, and
then tighten with screw driver.
4. Replace the cover by aligning the tabs in the slot and tightening the screw fasteners.
5. With two hands, grab the handles on the Cisco ASR1000-RP1 module and slide it back into its slot in the
Cisco ASR 1000 Series Router and tighten the captive screw.
DETAILED STEPS
Step 1 On the Cisco ASR1000-RP1, carefully align the new hard drive unit with its screw fastener to the base screw on the
bottom of the module.
Step 2 Reconnect the two cables to the rear of the hard drive. These are keyed for easy connection.

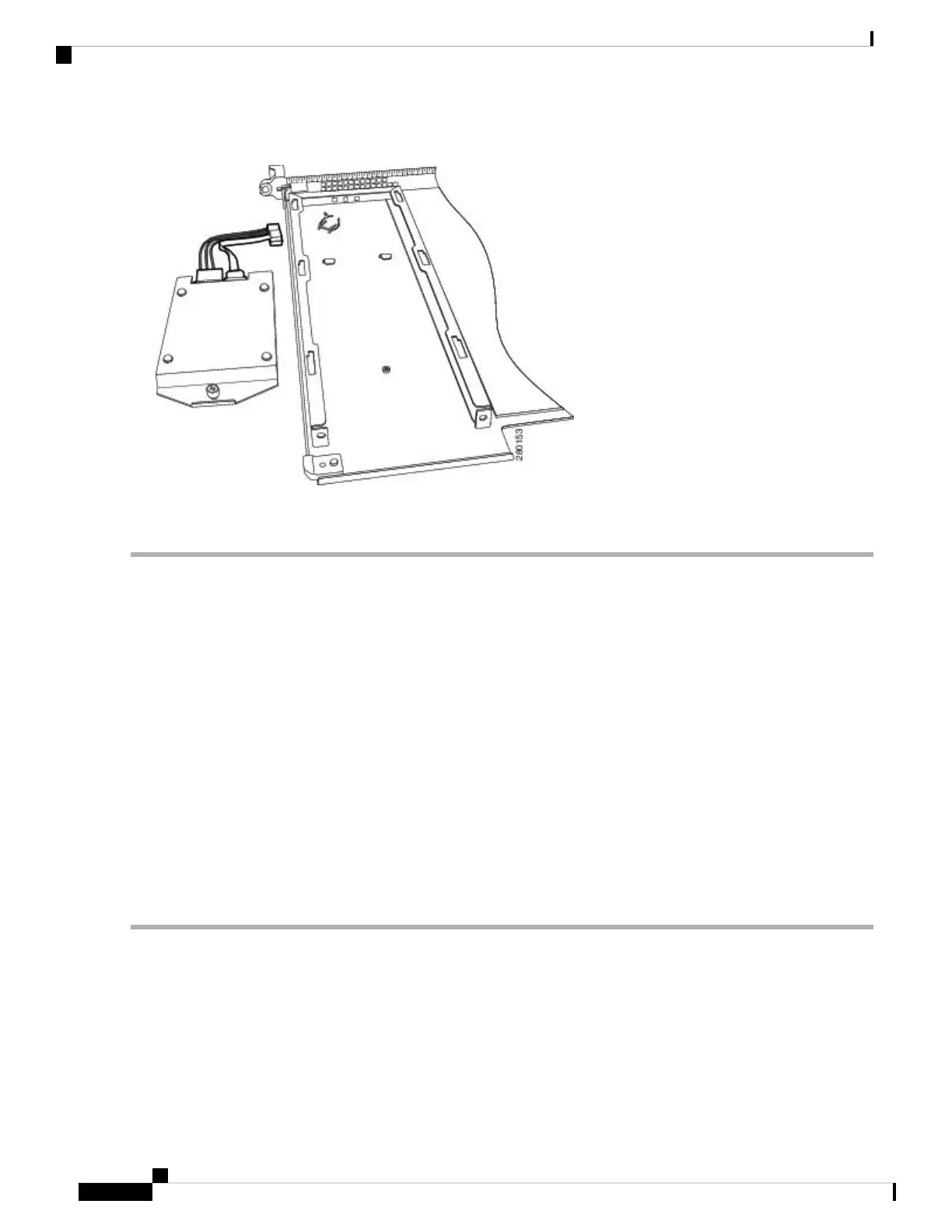

The following figure shows the Cisco ASR1000-RP1 module internal hard drive and module base.
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
8
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Replacing the Cisco ASR1000-RP1 Internal Hard Drive

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
