Cisco ASR 1013 Replacing

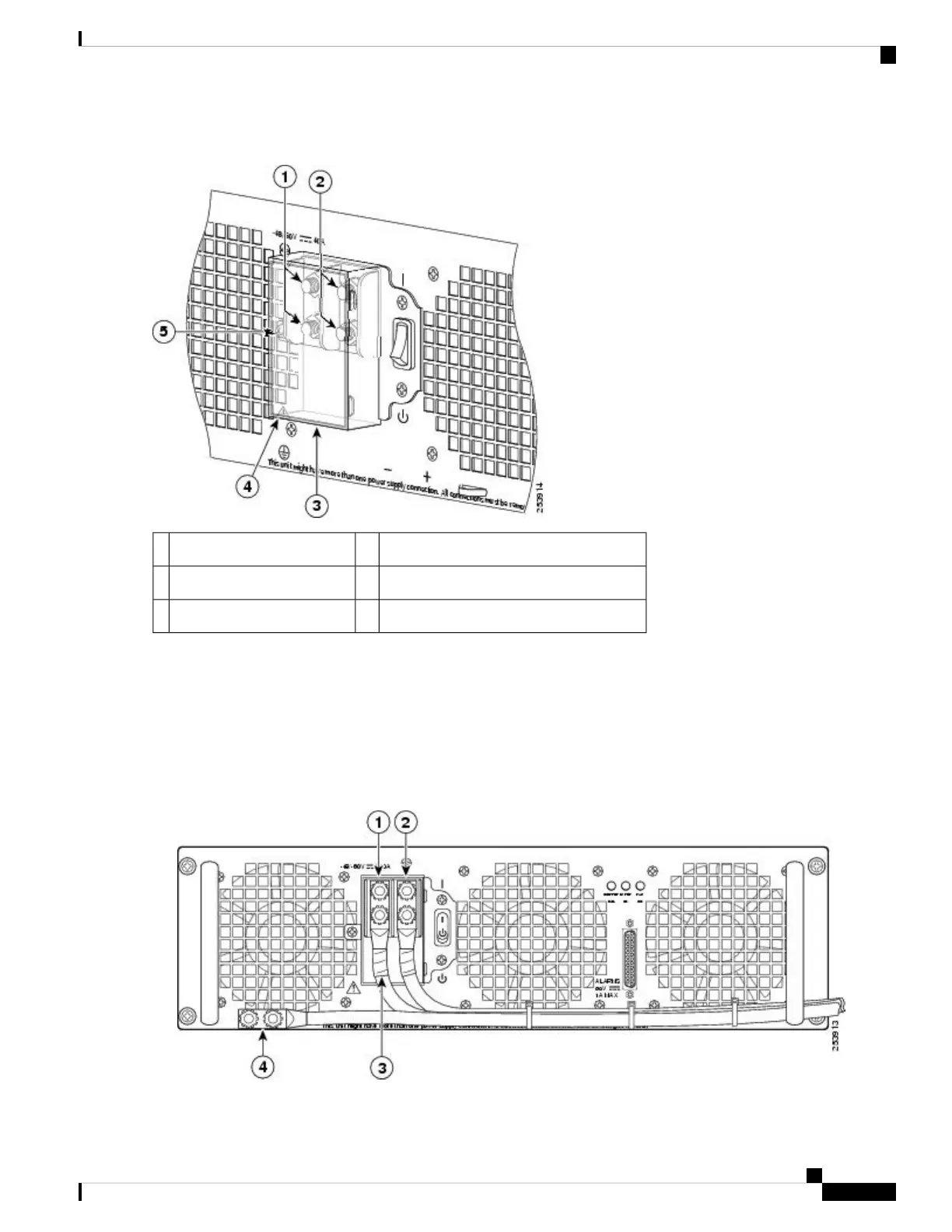

Figure 69: Cisco ASR 1013 Router DC Power Supply Terminal Block and Plastic Cover
Plastic cover slotted area4Negative terminal1
Terminal block plastic cover single screw5Positive terminal2
——Terminal block plastic cover3
Step 5 Remove the slotted plastic cover from the terminal block (see xref fig).
a) Loosen and remove the single screw on the plastic cover. The plastic cover has slots that help to slide it out diagonally
from the terminal block.
b) Using a nut driver (7/16 size), unsrew the positive kepnut, positive cable, and the flat washer, in that order. The
terminal block houses two double-hole barrel lugs.
c) Follow Step 4b and remove the negative cable. The following figure shows the DC power supply terminal block.
Figure 70: Cisco ASR 1013 Router DC Power Supply Terminal Block Cable Connections
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
103
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing the DC Power Supply from Cisco ASR 1013 Router
