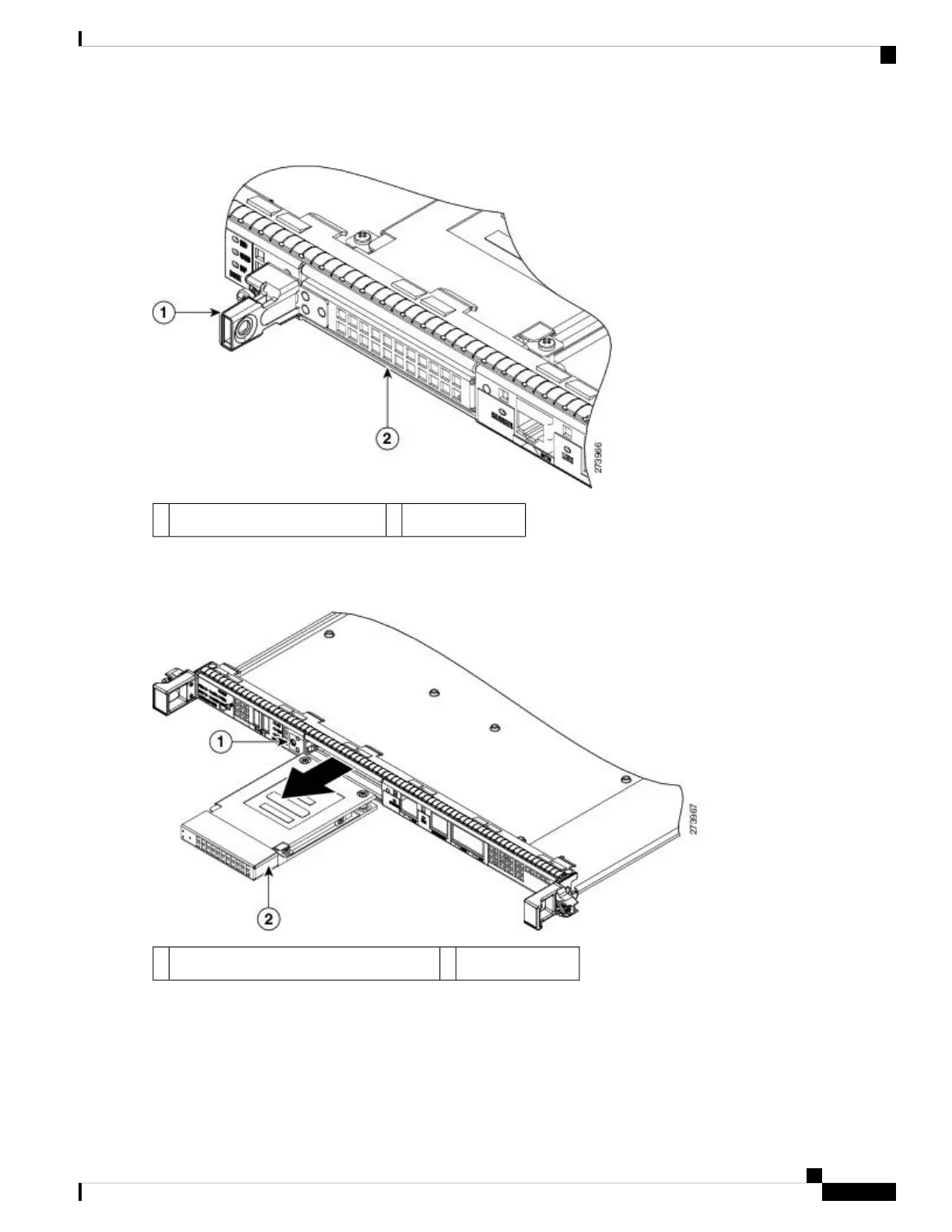

Figure 6: Cisco ASR1000-RP2 Front Panel
Internal hard drive2Internal hard drive fastener screw1
Step 4 Pull the internal hard drive out as shown in the following figure.
Figure 7: Cisco ASR1000-RP2 Internal Hard Drive
Internal hard drive2Internal hard drive fastener screw location1
Step 5 Place the component in an antistatic bag if you are returning it.
Step 6 Wait until the following console message is displayed:
Example:
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
11
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing the Cisco ASR1000-RP2 Internal Hard Drive
