Table 5: Cisco ASR1002-X Router Supported Slots for Inserting Memory DIMMs
Slot 3 (U1D1)Slot 2 (U1D0)Slot 1 (U2D1)Slot 0 (U2D0)Memory PID Option
—2 GB module—2 GB moduleM-ASR1002X-4GB
2 GB Module2 GB Module2 GB Module2 GB ModuleM-ASR1002X-8GB
4 GB Module4 GB Module4 GB Module4 GB ModuleM-ASR1002X-16GB
To ensure vendor and MPN compatibility during memory upgrades, remove the installed DIMMs and replace
them with the DIMMs provided in the upgrade kit.
Note
This section describes how to remove and then replace the Cisco ASR 1002-X Router DIMMs (see xref Figure
14-16).

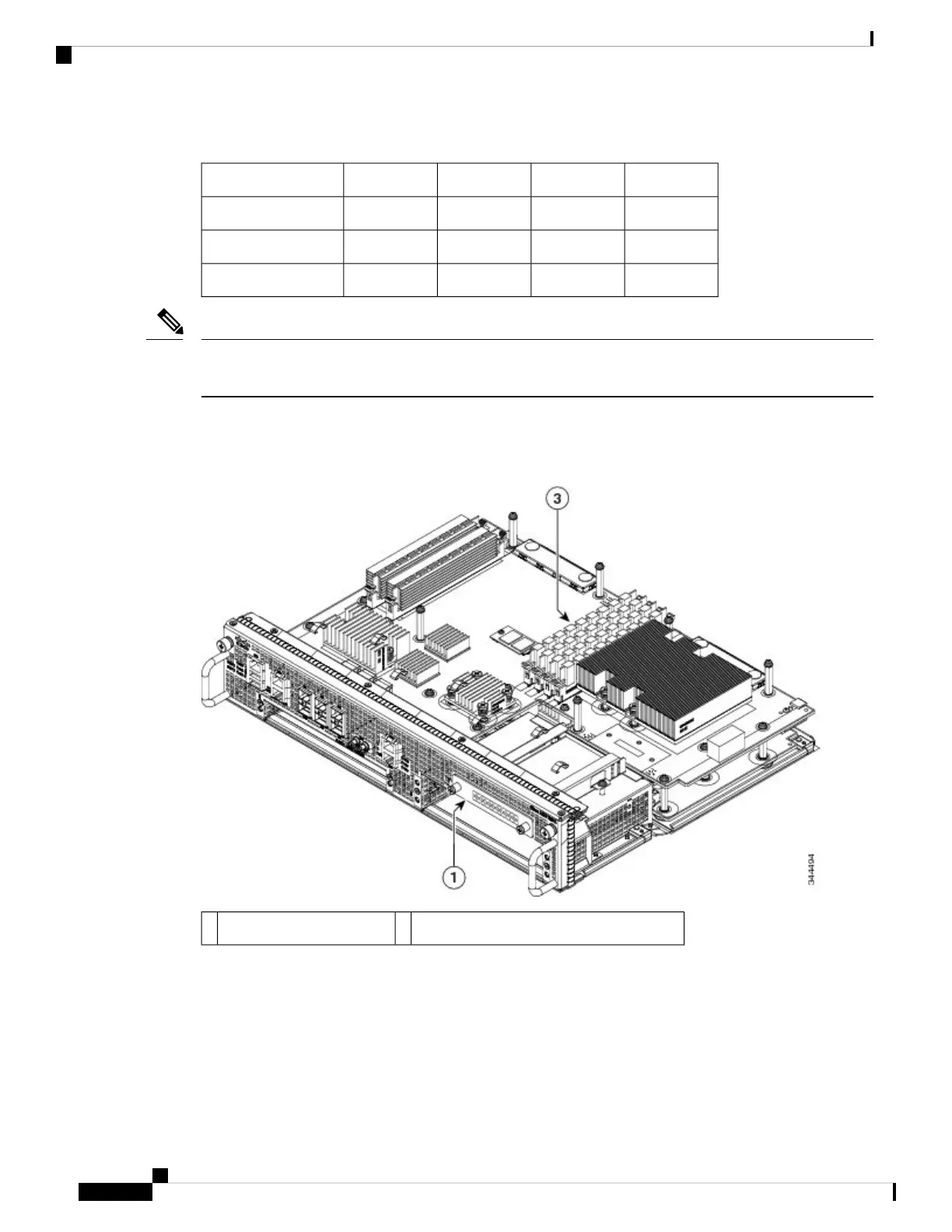

Figure 25: Cisco ASR1002-X Router Module Internal Component Location
Cisco ASR1002-X Router DIMM location3Internal hard drive location1
Removing the Cisco ASR1002-X Router DIMMs
Follow these steps to remove the Cisco ASR1002-X Router DIMMs:
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
36
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing the Cisco ASR1002-X Router DIMMs
