Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement
1030
Warning
Installation of the equipment must comply with local and national electrical codes. Statement 1074
Warning
The following figure shows the –48 VDC power supply and components for the Cisco ASR 1002 Router.

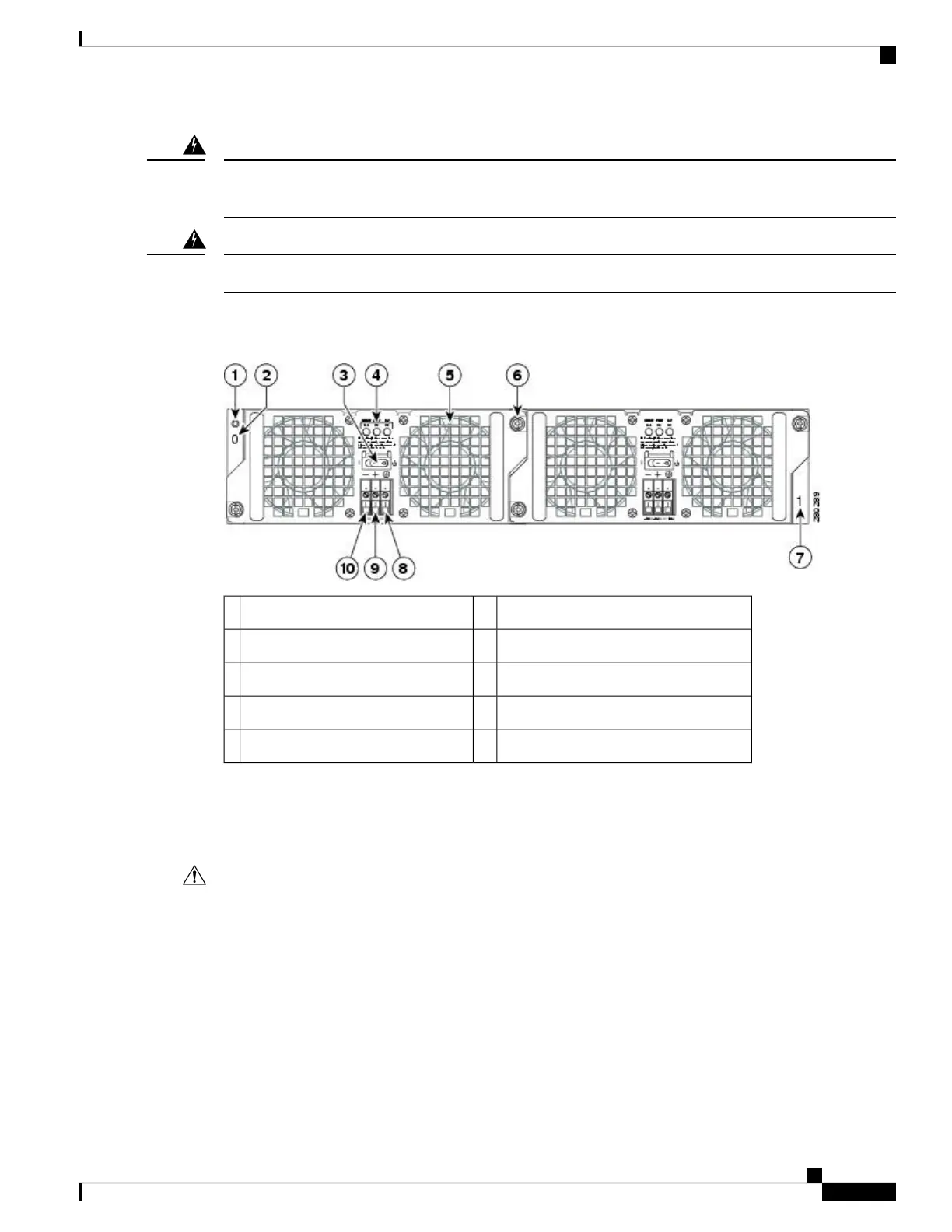

Figure 55: Cisco ASR 1002 Router –48 VDC Power Supply
Power supply captive installation screw6Power supply ESD socket1
Power supply slot 1 label7Power supply slot 0 label2
Ground (GND)8Power supply switch Standby/On (|)3
Positive lead9Power supply LEDs4
Negative lead10Fan5
Removing the –48 VDC Power Supply from Cisco ASR 1002 Router
Before you can remove a –48 VDC power supply from the Cisco ASR 1002 Router, you must remove input
power going to the power supply.
Make certain that the chassis ground is connected before you begin removing and installing the power supply.
Caution
To remove the –48 VDC power supply from the Cisco ASR 1002 Router, follow this procedure:
SUMMARY STEPS
1. Slip on the ESD-preventive wrist strap that was included in the accessory kit.
2. Place the power supply Standby switch in the Standby (see the following figure) position.
3. Turn off the branch circuit breaker before touching terminal screws. Then start loosening the terminal
block screws to remove wires.
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
85
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing the –48 VDC Power Supply from Cisco ASR 1002 Router
