The following image shows the forward rack-mount brackets, callout number 2 and the rear rack-mount
brackets, callout number 4, on the Cisco ASR 1013 Router.

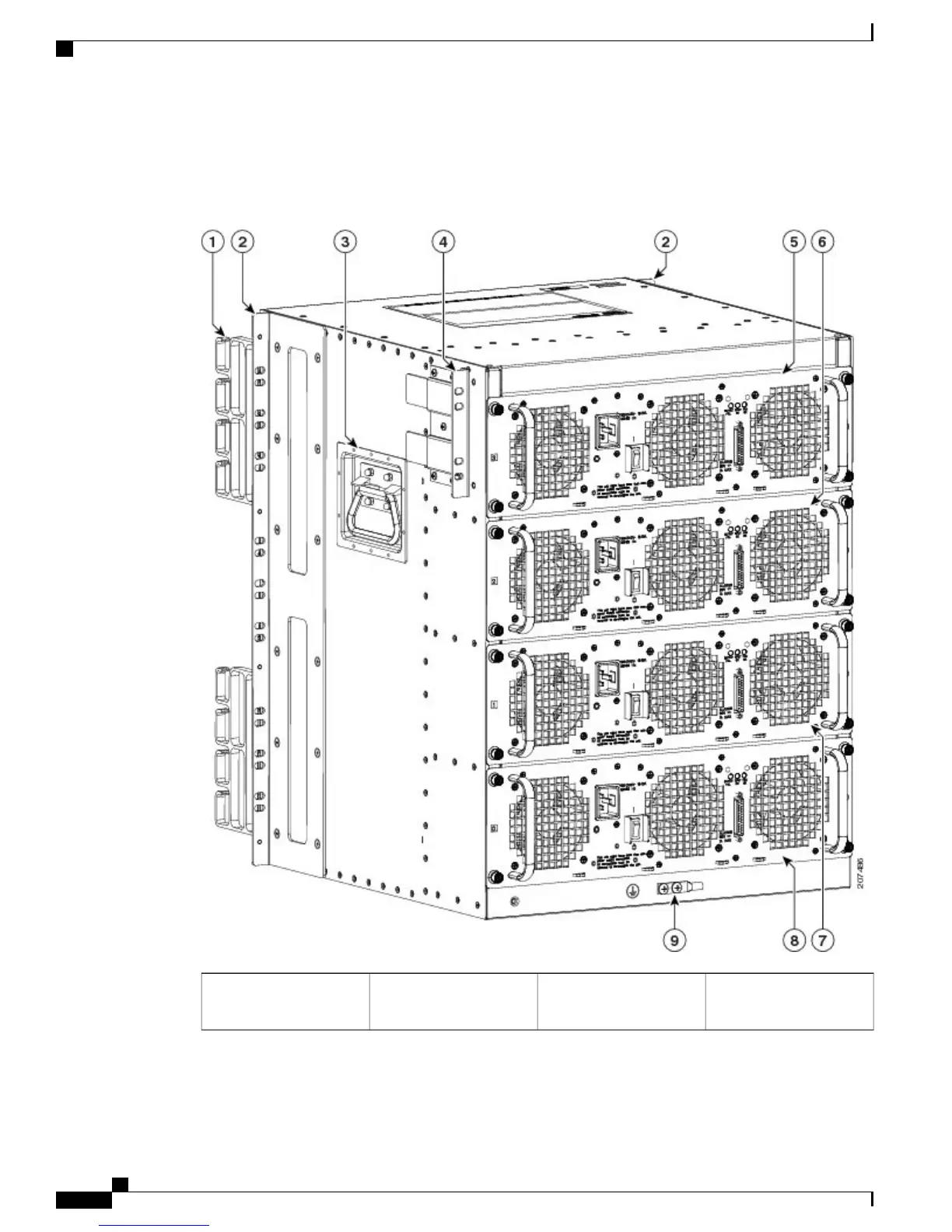

Figure 6: Forward Rack-Mount Brackets on the Cisco ASR 1013 Router
Rear rack-mount bracket4Forward rack-mount
bracket ear and holes
2
