Cisco ASR 9000 Series Configuring

Configuring Channelized SONET/SDH on the Cisco ASR 9000 Series Router
Information About Configuring Channelized SONET/SDH
HC-325
Cisco ASR 9000 Aggregation Services Router Interfaces and Hardware Component Configuration Guide
OL-26061-03
– AU-3 to VC-3 to DS3 to E1 to NxDS0
• 1-Port Channelized OC-48/STM-16 SPA
– DS3
– E3
– AU-3 (VC-3)
– AU-4 (VC-4)
– AU-4-4c (VC-4-4c)
– AU-4-16c (VC-4-16c)

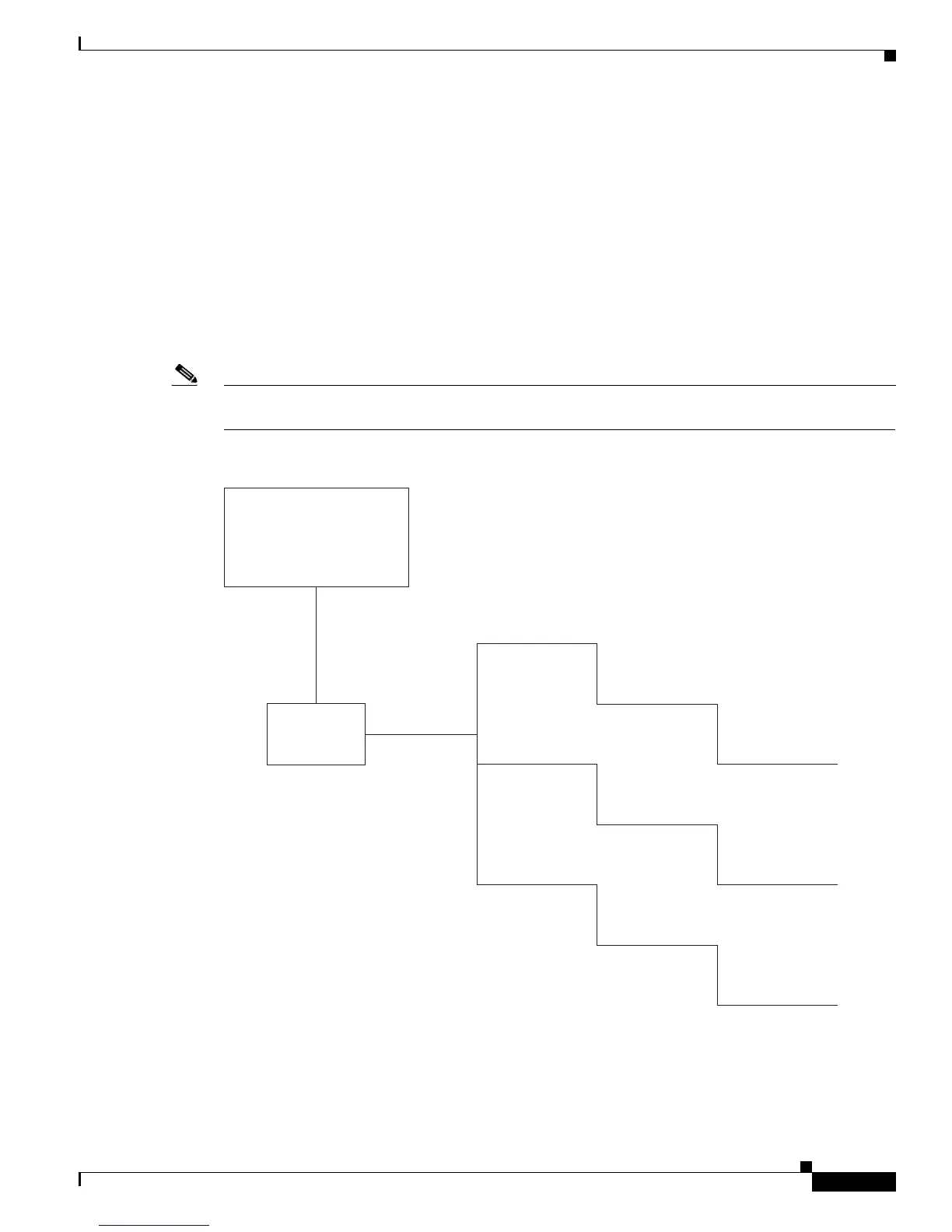

Figure 26 shows an example of SDH AU-3 paths that can be configured on certain supported SPAs.
Note The 1-Port Channelized OC-48/STM-16 SPA does not support further channelization of AU-3 paths into
T1s.
Figure 26 SDH AU3 Paths
SONET
Controller
210874
C11-T1
T1
AU-3
C11-T1
T1
AU-3
C11-T1
T1
AU-3
STM-1
